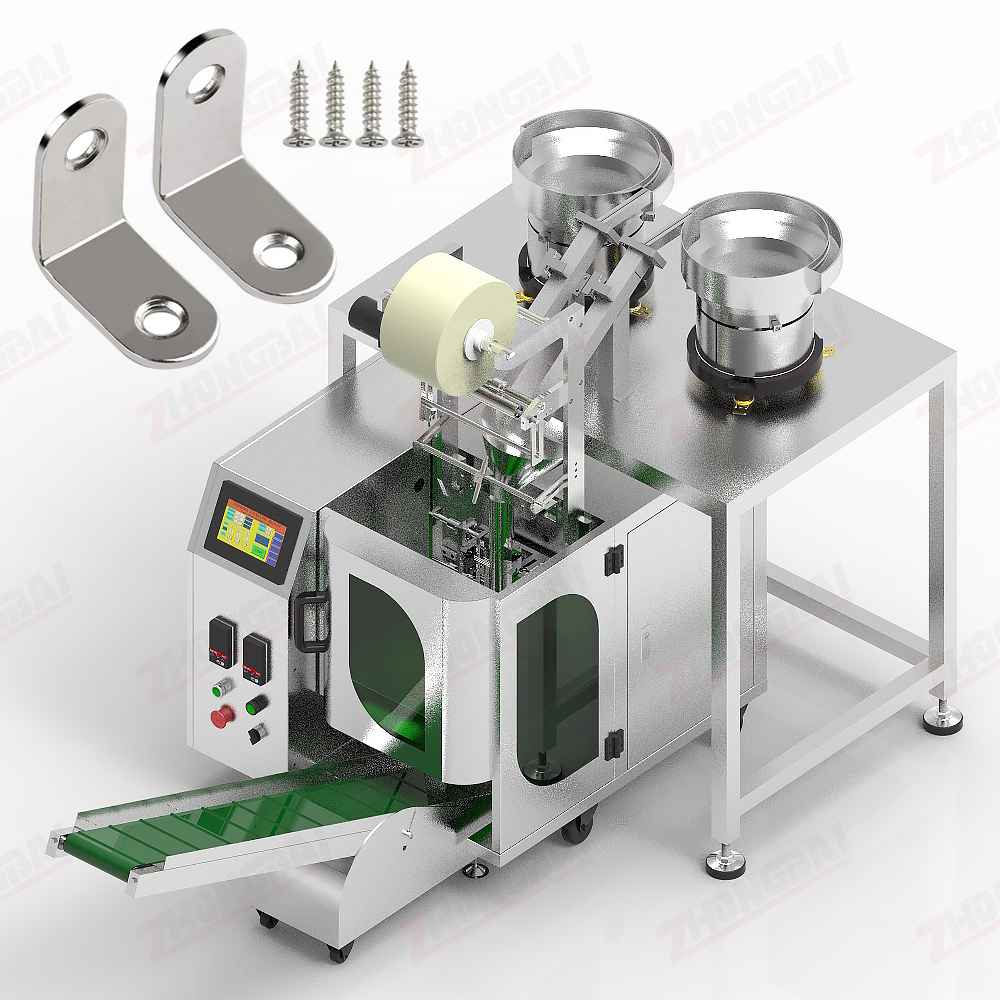

Automatic Small Hardware Parts Kitting Packing Machine
No.ZB-H321
▶ ZB-602 Small Hardware Parts Kitting Packing Machine with 2 Bowl Feeders.

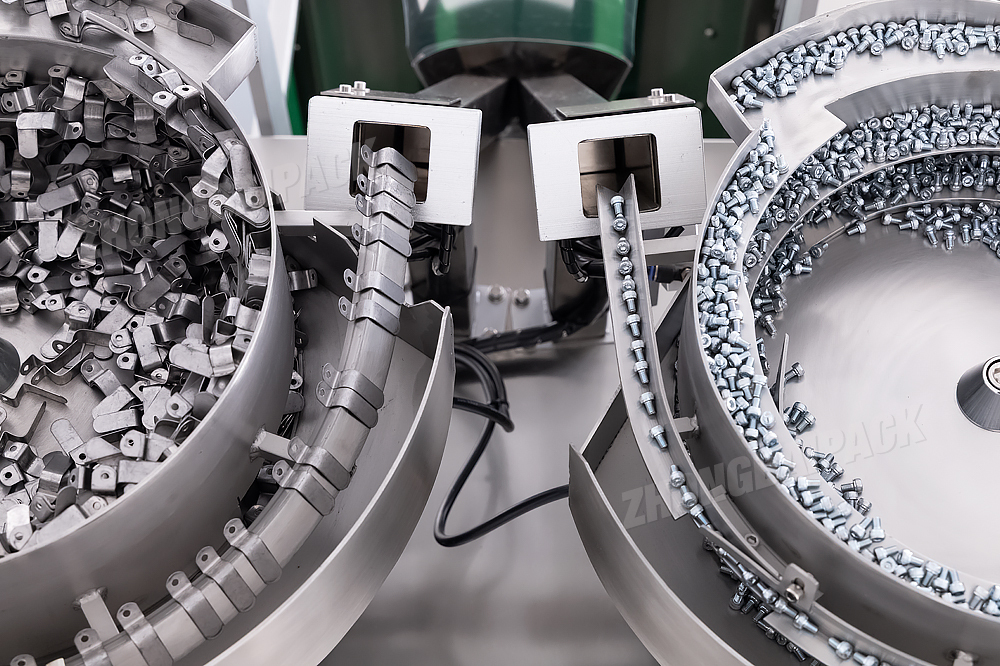

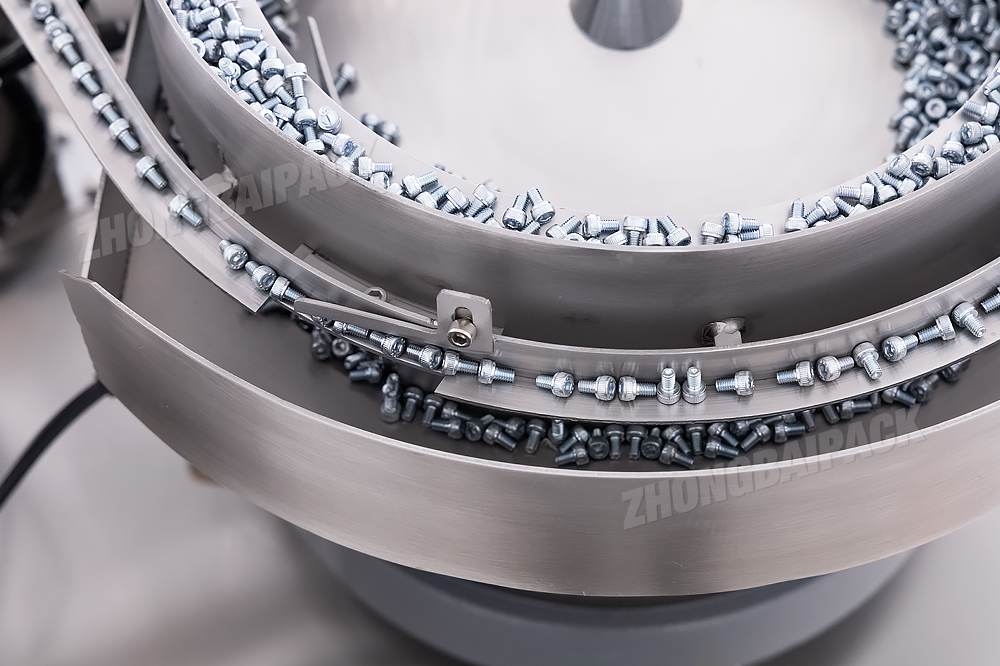

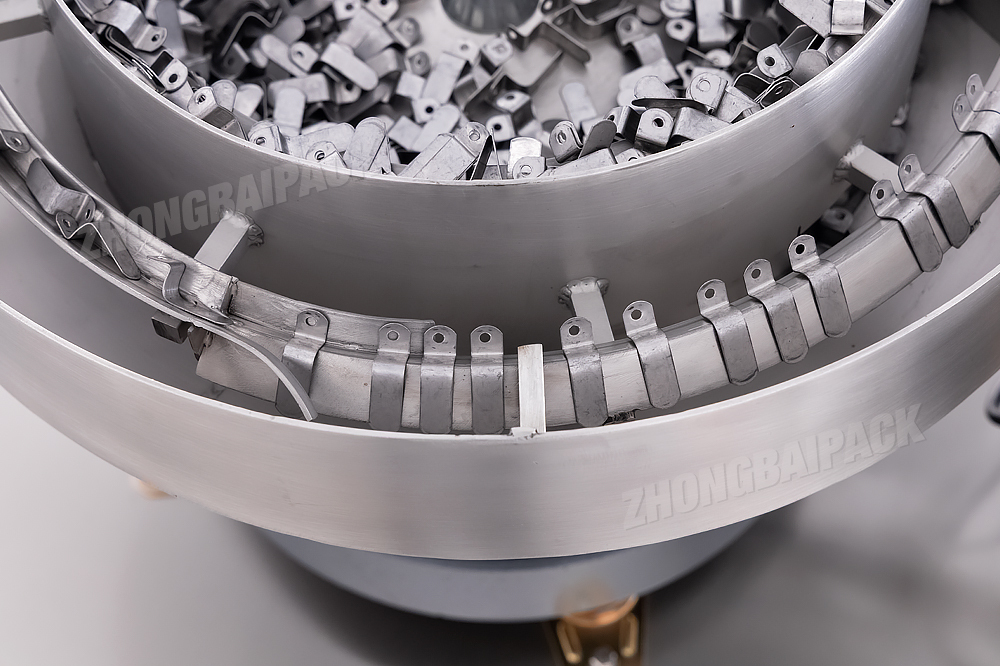

▶ The vibratory bowl feeder can be customized for different types of hardware parts.
▶ The machine allows for easy adjustment of the quantity of components per package and the total number of packages in an order, which can be flexibly set on the human-machine interface.
▶ The machine can be customized with 1 to 5 vibratory bowl feeder counting systems, depending on the types of components per bag.
Highlights: ▶ This small hardware parts kitting packing machine is equipped with two bowl feeders, allowing it to handle either sets of small hardware parts or a single type. ▶ Operators can easily set the required counting quantity directly on the user-friendly interface, real-time monitoring of counting quantity is available on the touch screen.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure:constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:

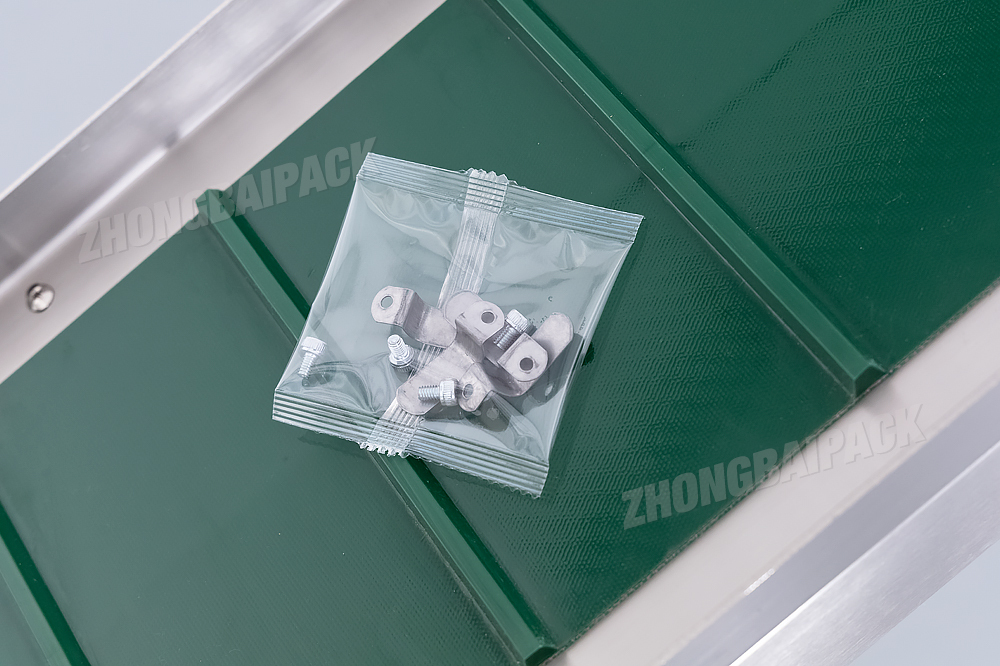

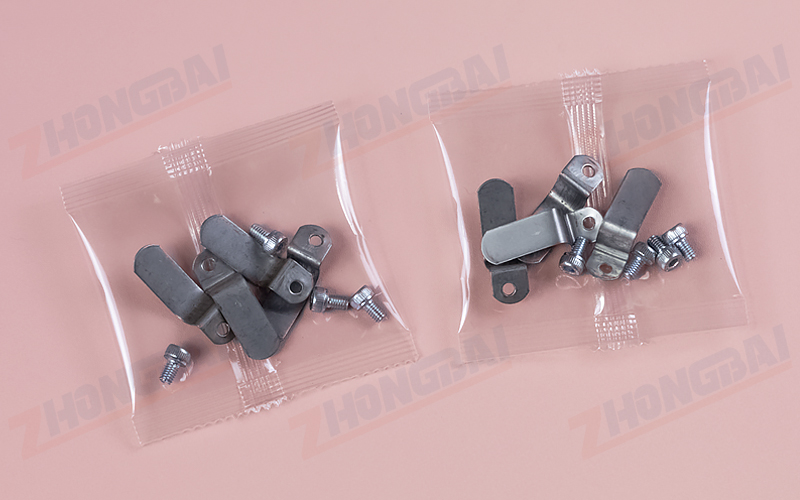

Technical Specificatioin: Model: ZB-60D2 Capacity: 10-50 bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 2.1KW Voltage: 220V, 50/60HZ Machine Dimension: (L)2150×(W)1050×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch Packaging Samples:
Optioinal Devices:
FAQ
1. Are the vibratory bowl feeders customized for my specific parts?
Yes. The vibratory bowl feeding system is custom-designed based on your actual part samples to ensure parts are oriented, aligned, and fed smoothly in a row. This customization is critical for achieving accurate counting and reliable feeding performance.
2. Can I set the counting quantity independently for each bowl feeder?
Yes, absolutely. You can set the counting quantity independently for each bowl feeder on the touch screen.
3. Can the machine apply the label onto the bags?
Yes, the machine can be integrated with the labelling device to apply a label onto the bags automatically. It can also be integrated with an intelligent printer to print product information directly on the bags.
