Highlights:

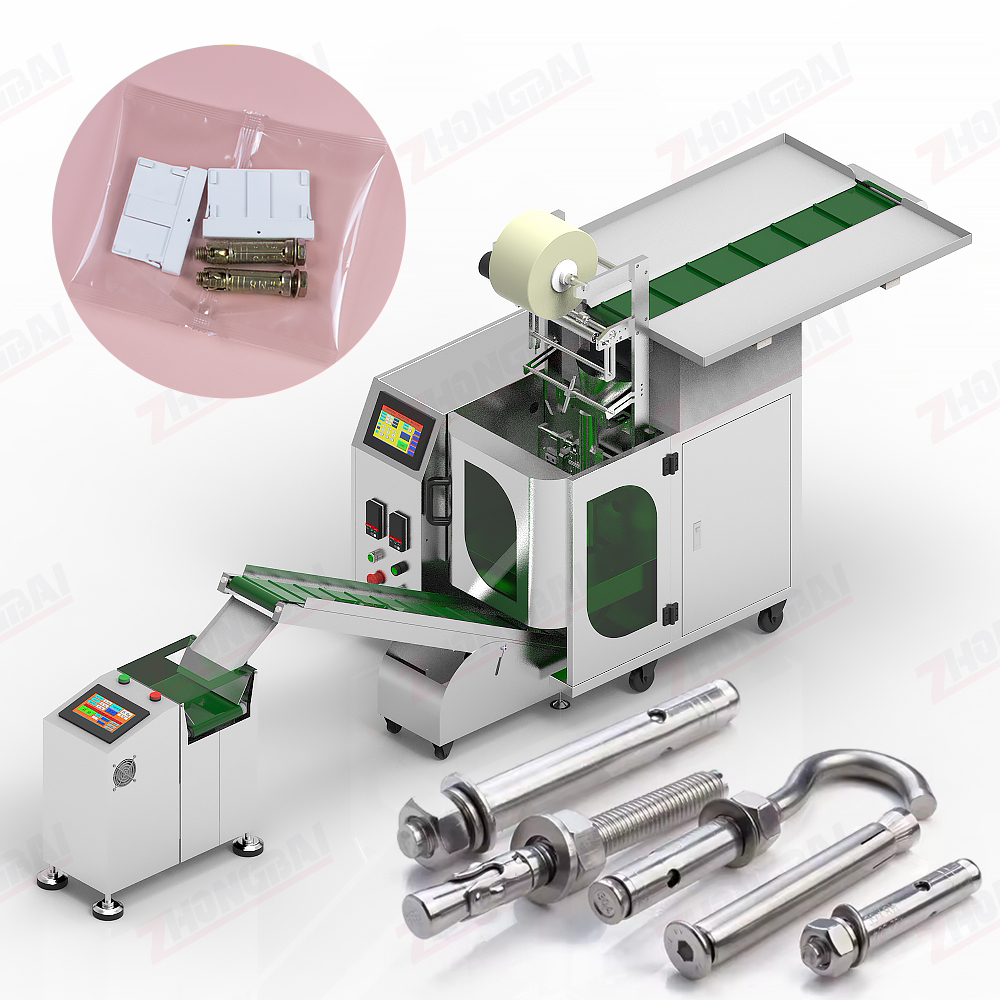

▶ This industrial parts kitting packing machine is a highly flexible solution designed for versatile packaging of fasteners and components.
▶ The operator places components onto the conveyor, which then moves and synchronizes with the bagging system via integrated controls, ideal for handling packaging tasks with frequent component changeovers.

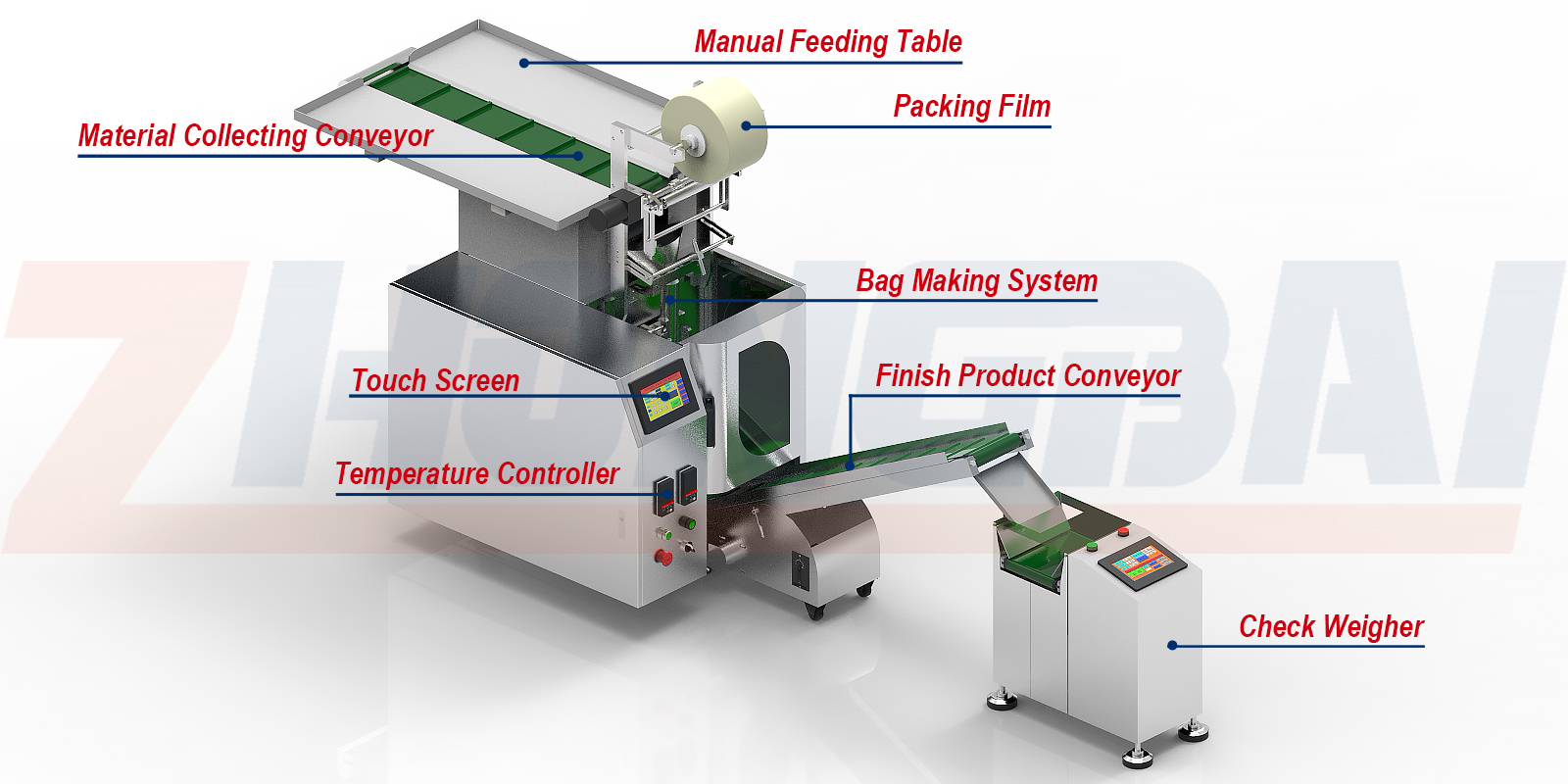

Main Structure:
Technical Specificatioin:
Model: ZB-C60
Capacity: 10-30bags/min
Bag width: max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 1.6KW
Voltage: 220V,50/60HZ
Machine Dimension: (L)2300×(W)900×(H)1500mm

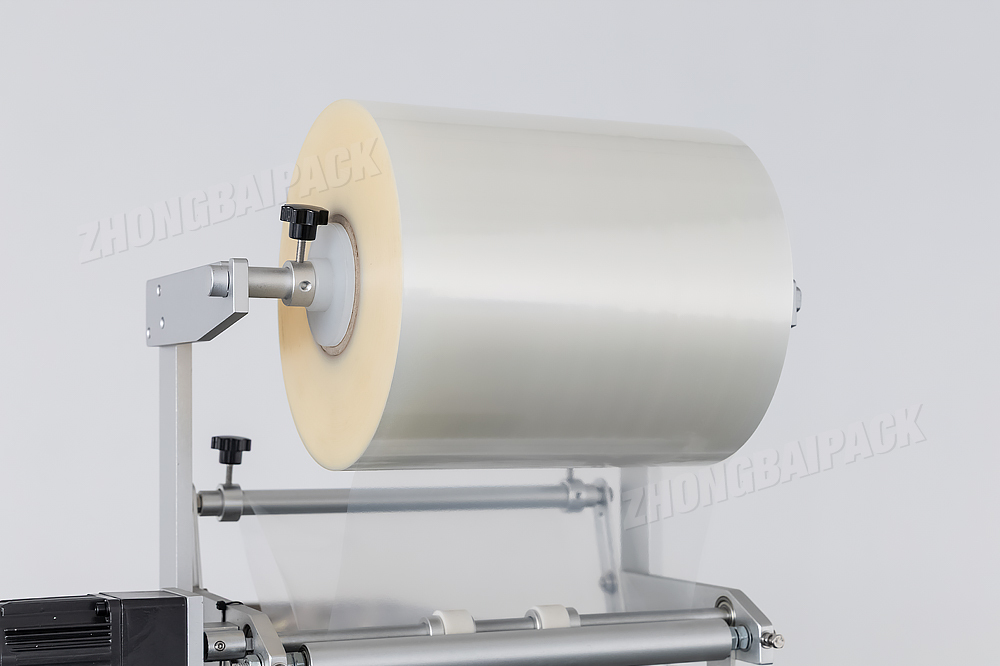

Packing material: Plastic film | Paper film | Premade pouch

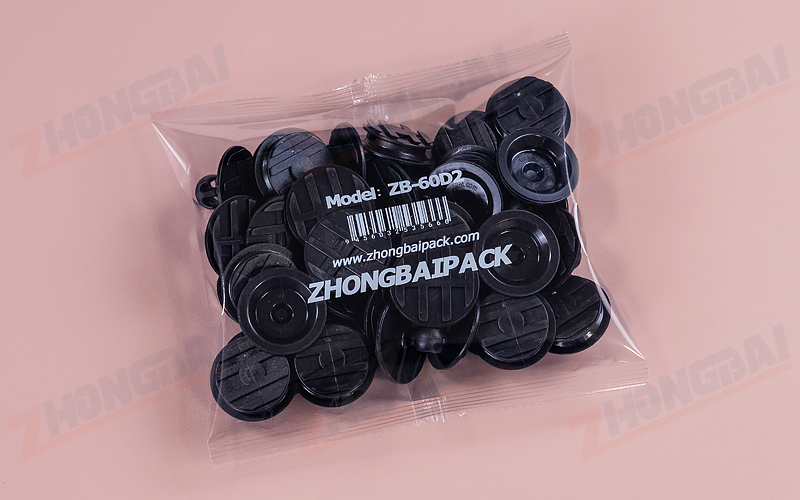

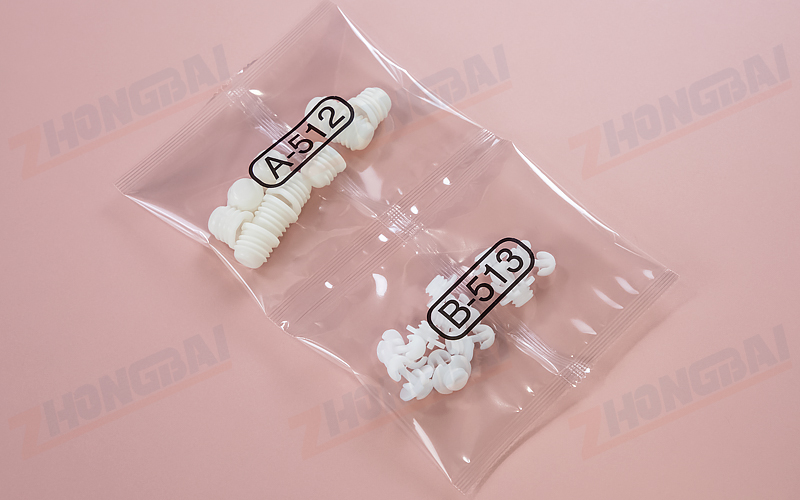

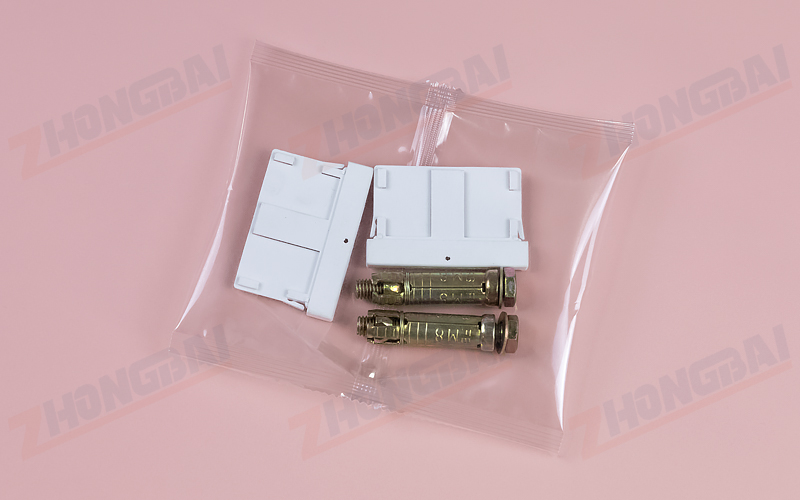

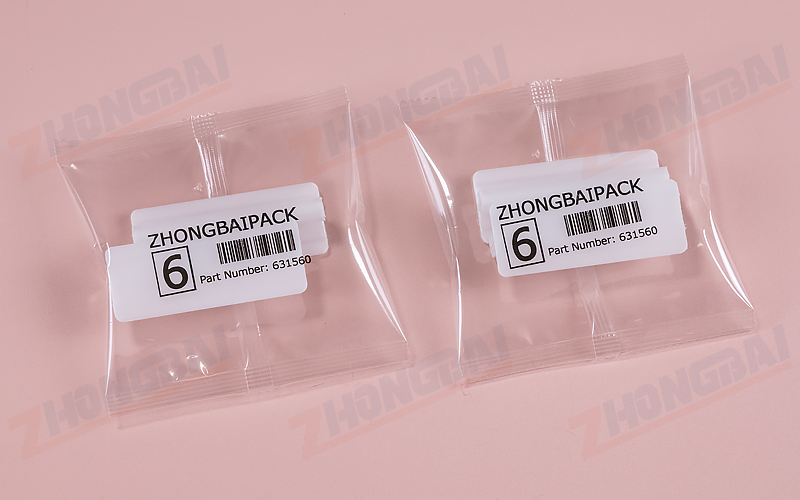

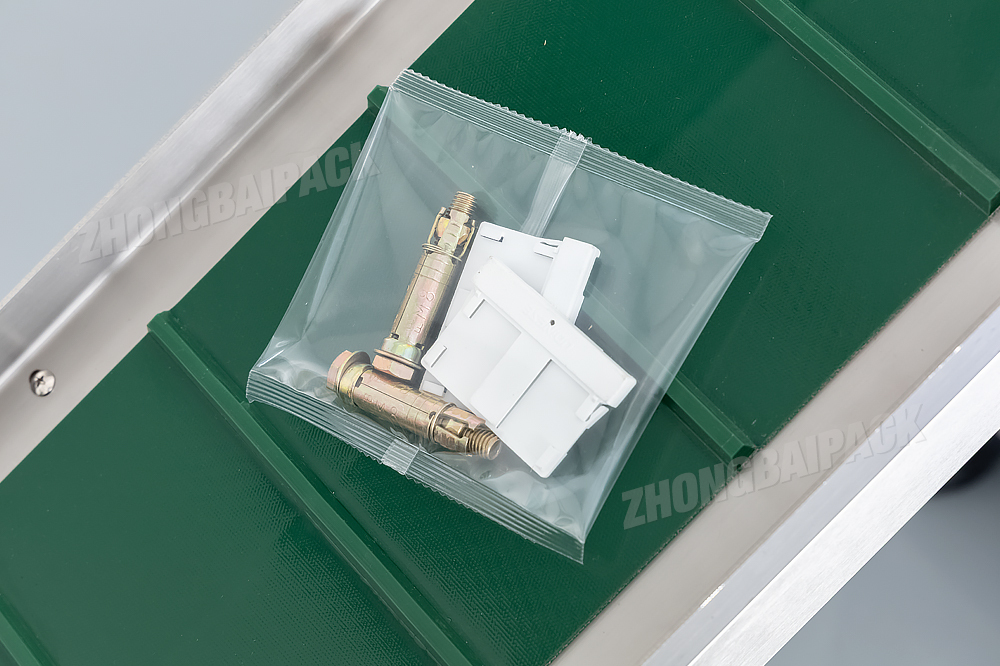

Packaging Samples:
Optioinal Devices:

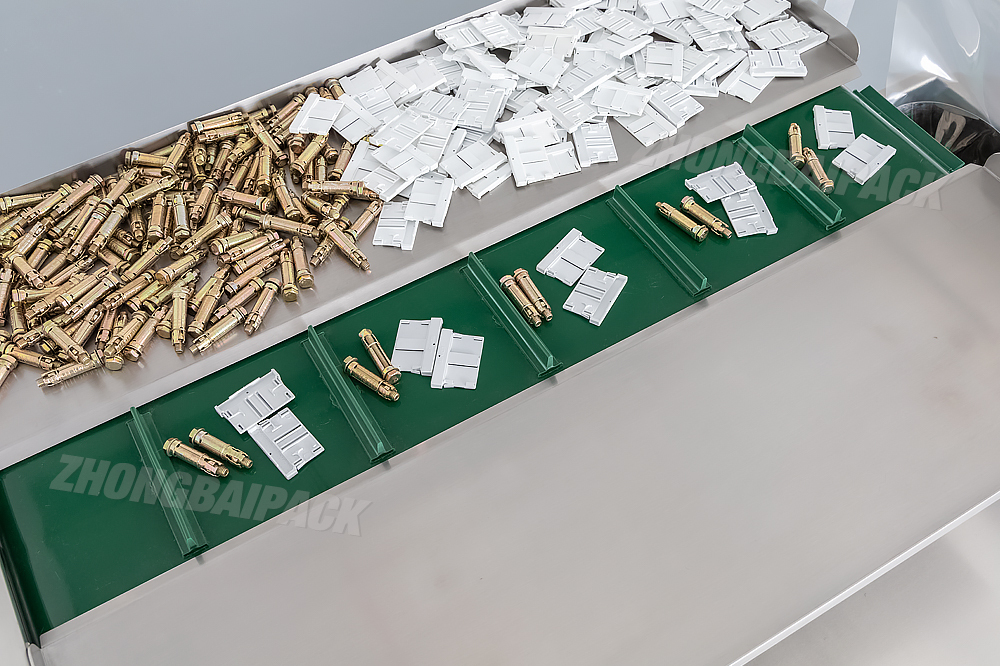

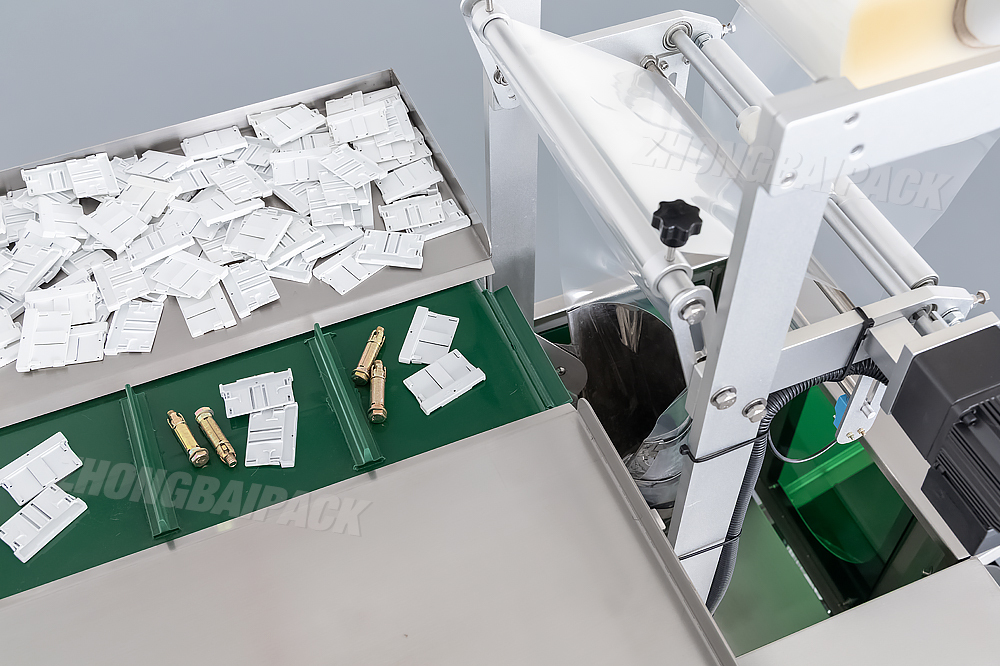

The ZB-C60 features a manual feeding conveyor system combined with an advanced bagging mechanism. Operators place different components onto the designated conveyor belt. The conveyor then moves and synchronizes precisely with the bagging system via integrated PLC controls, ensuring seamless drop-in, sealing, and efficient kitting of multi-part kits.
The ZB-C60 offers several unique benefits for versatile packaging:
● Cost-Effective Solution: Features a significantly lower initial investment compared to fully automatic multi-head weighing systems.
● High Flexibility: Perfect for low-to-medium volume operations and tasks that require frequent component changeovers.
● Quick Changeover: Allows operators to switch between different products and bag formats rapidly with minimal adjustments.

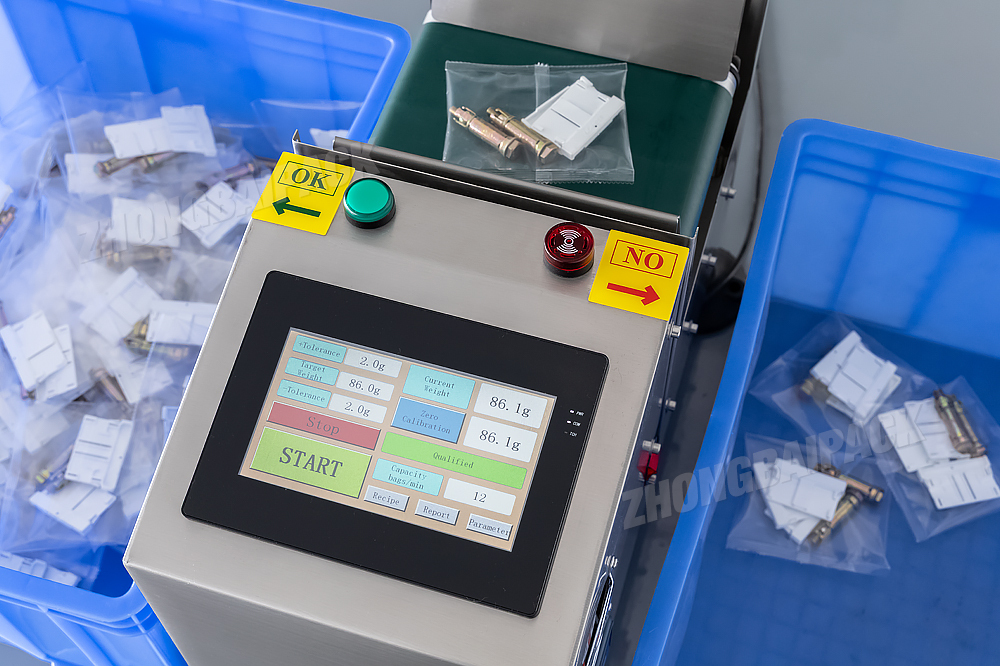

It automatically weighs each sealed bag in real time to ensure it meets the preset target weight and tolerance limits, so that it can detect missing or extra pieces by comparing the total bag weight against the expected total weight for the correct count.
