Small Hardware Accessories Packing Machine with 3 Bowl Feeders
No.ZB-H324

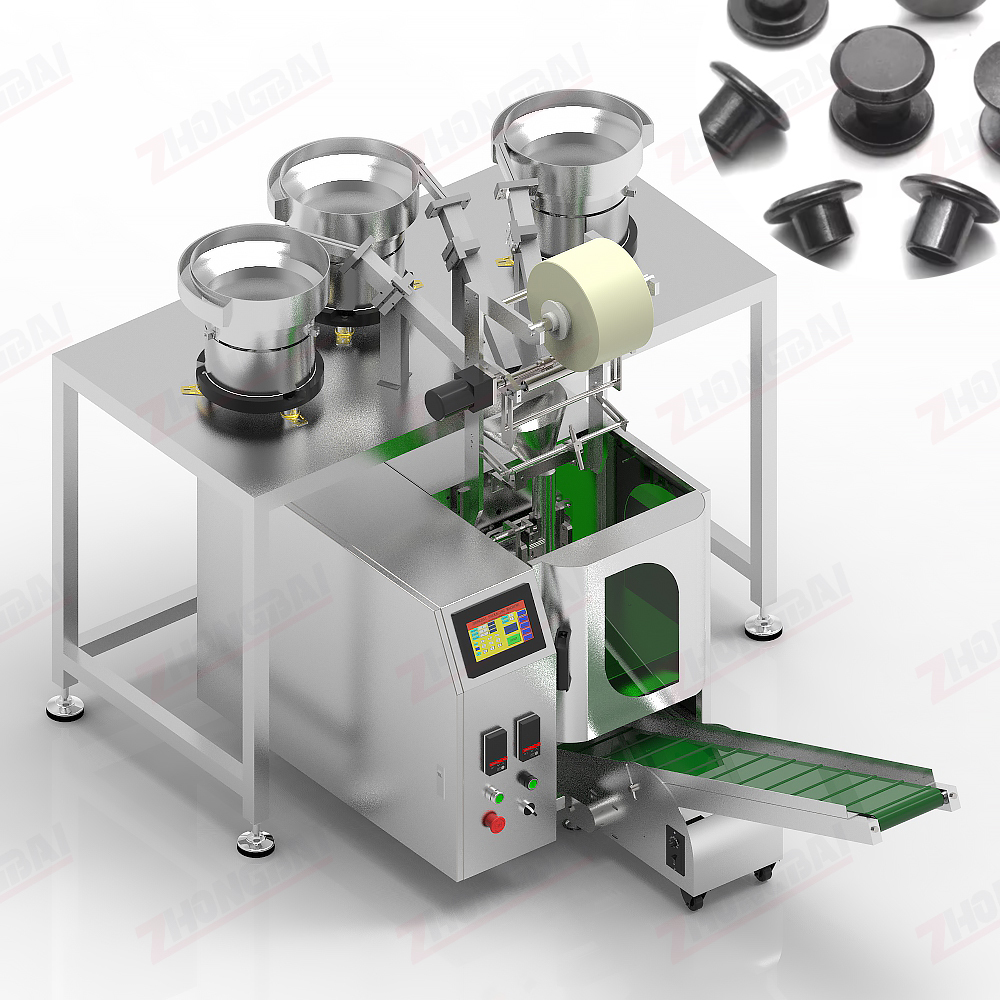

▶ ZB-60D3 Small Hardware Accessories Packing Machine with 3 Bowl Feeders

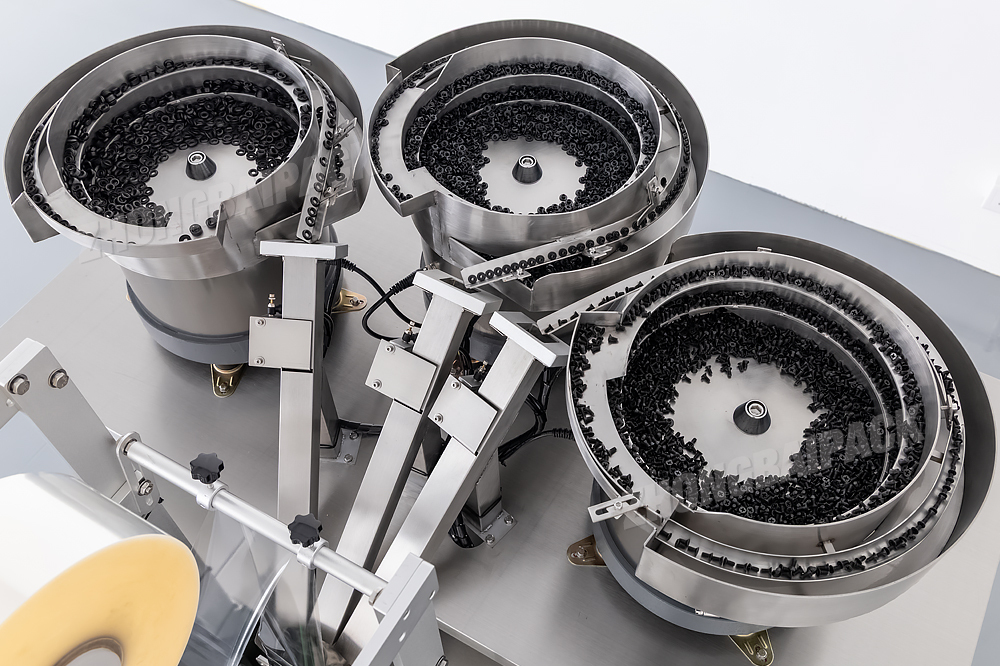

▶ The machine features three independent bowl feeders, enabling it to package either complete sets of small accessories or individual types with flexible settings via the touch screen.

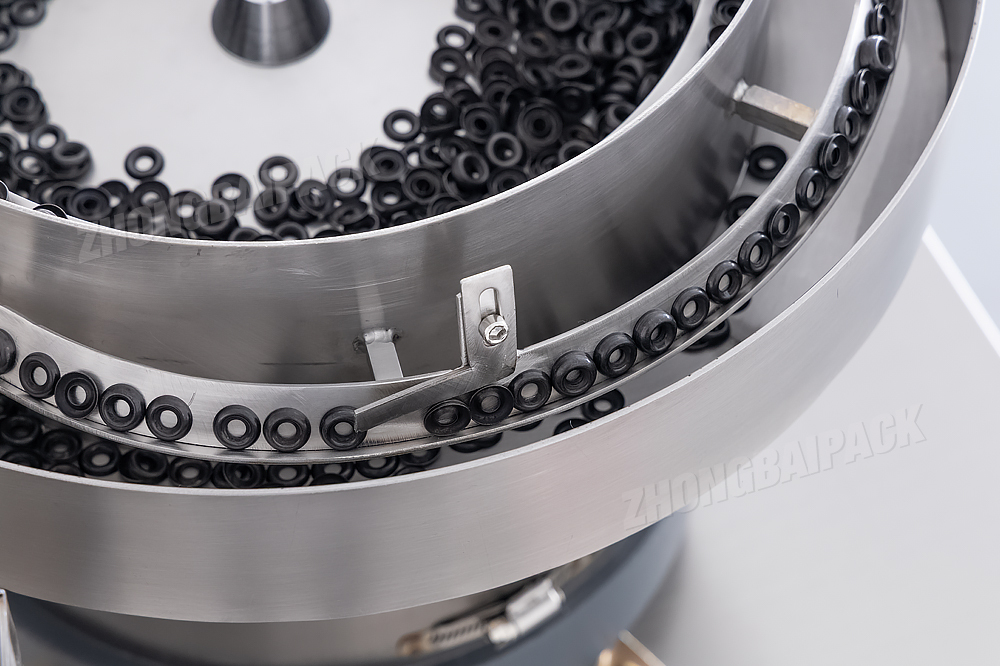

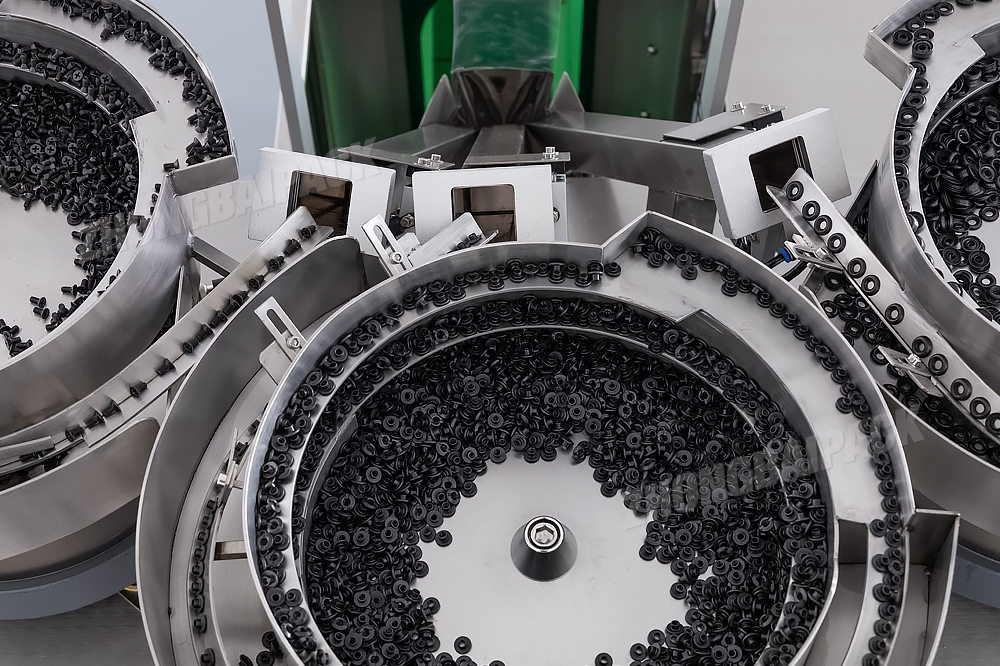

▶ Vibratory bowl feeding systems are customized for the parts, ensuring proper feeding in a row and accurate counting.
▶ High accuracy sensor counting with real-time data output and PLC integration.
Highlights: ▶ This packing machine for small hardware accessories is equipped with three bowl feeders, allowing it to handle either sets of fasteners or a single type. ▶ High accuracy sensor counting with real-time data output and PLC integration. ▶ Operators can easily set the required counting quantity directly on the user-friendly interface, real-time monitoring of counting quantity is available on the touch screen.
Features:

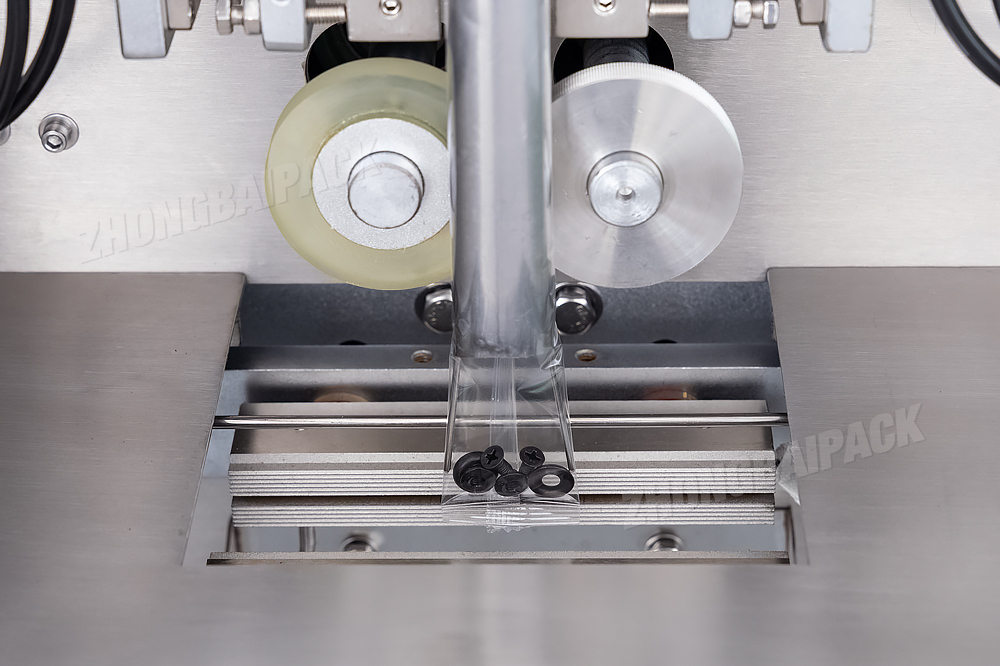

● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure:constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:

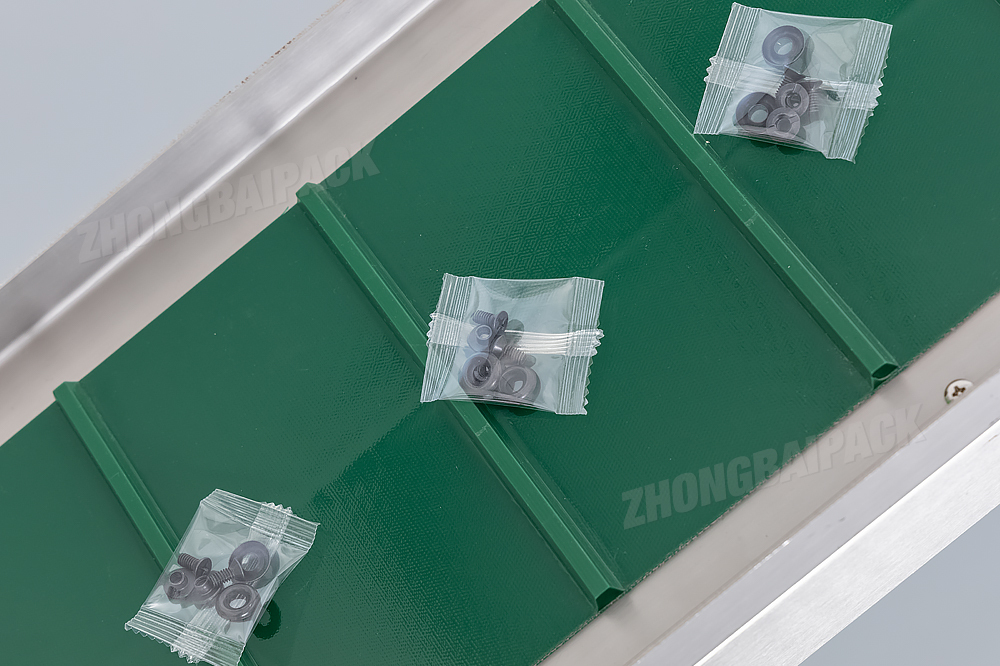

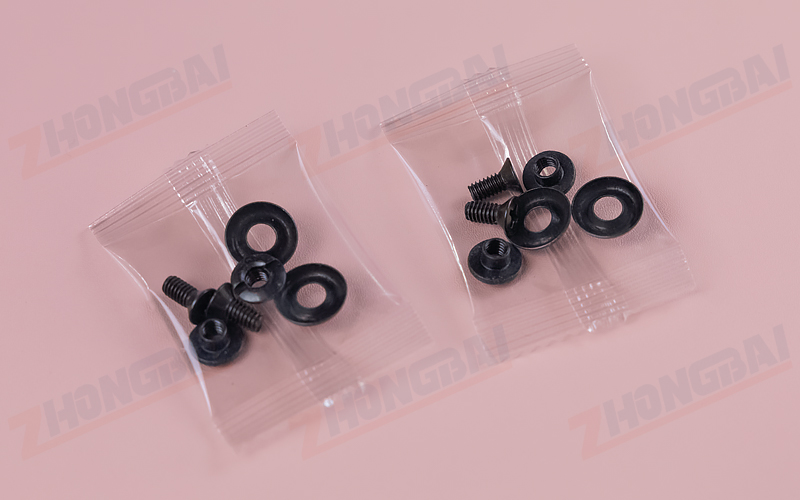

Technical Specificatioin: Model: ZB-60D3 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 2.4KW Voltage: 220V, 50/60HZ Machine dimension: (L)2150×(W)1400×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch Packaging Samples:
Optioinal Devices:
FAQ
1.What types of hardware and accessories can this machine pack?
It is suitable for a wide range of small hardware items, including but not limited to: screws, bolts, nuts, washers, rivets, small stamping parts, electronic components, and other similar fittings. The primary requirements are that the parts are compatible with vibratory bowl feeding and fit within the bag dimensions.
2. Are the vibratory bowl feeders customized for my specific parts?
Yes. The vibratory bowl feeding system is custom-designed based on your actual part samples to ensure parts are oriented, aligned, and fed smoothly in a row. This customization is critical for achieving accurate counting and reliable feeding performance.
3. Is the machine easy to operate? How do I set the quantity per bag?
Very easy. The machine features a touchscreen human-machine interface (HMI). Operators can simply set the target counting quantity for each of the three feeders (i.e., for each part type) directly on the screen, and monitor the process in real-time. All operations are intuitive.
