Overview:

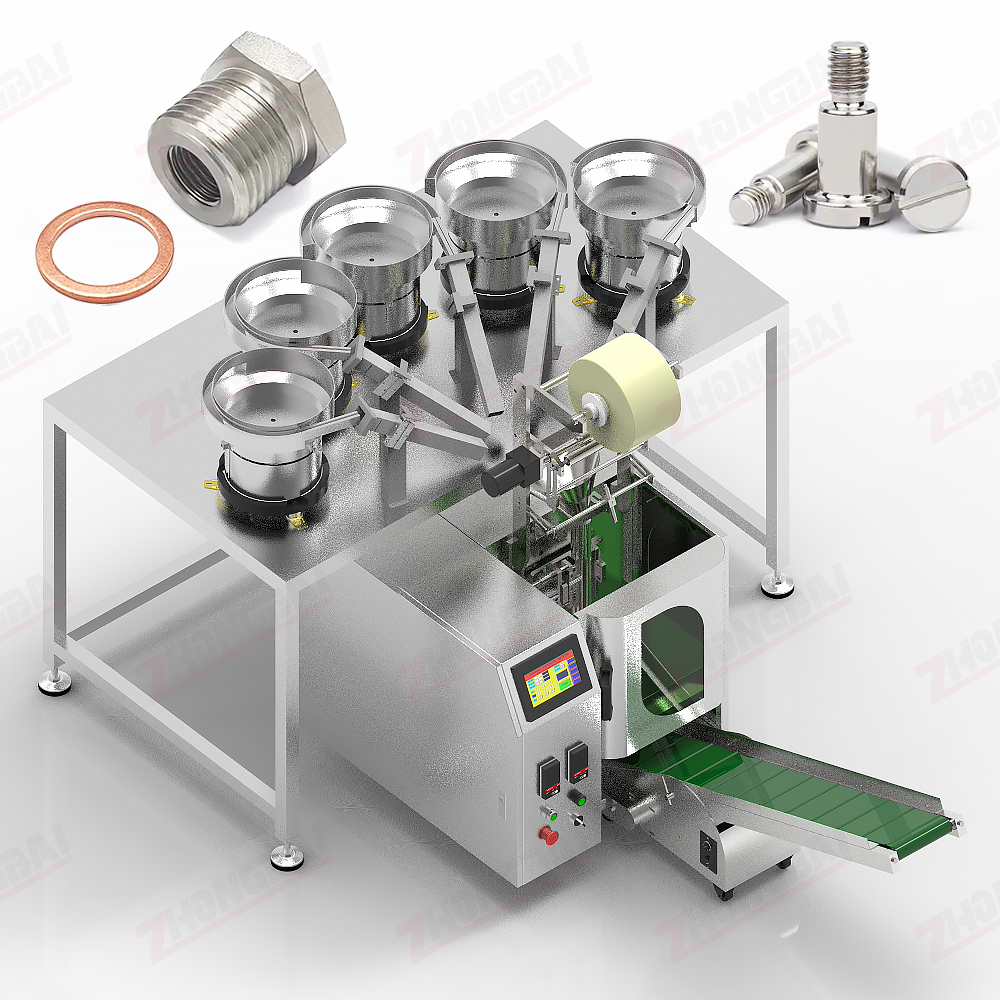

The Automatic Hardware Parts Mixed Packing Machine is engineered specifically for high-efficiency counting, mixing, and bagging of various industrial components. Whether you need to package screws, nuts, washers, bolts, furniture fittings, or customized hardware kits in a single bag, this advanced multi-bowl vibrating packing system delivers 99.9% counting accuracy and reduces heavy labor costs. Equipped with a smart PLC touchscreen control system and flexible modular bowl configurations, our hardware packaging machine allows fast recipe switching, smooth jam-free feeding, and tight sealing, making it the ultimate packaging solution for fastener manufacturers, furniture assembly suppliers, and hardware distributors worldwide.

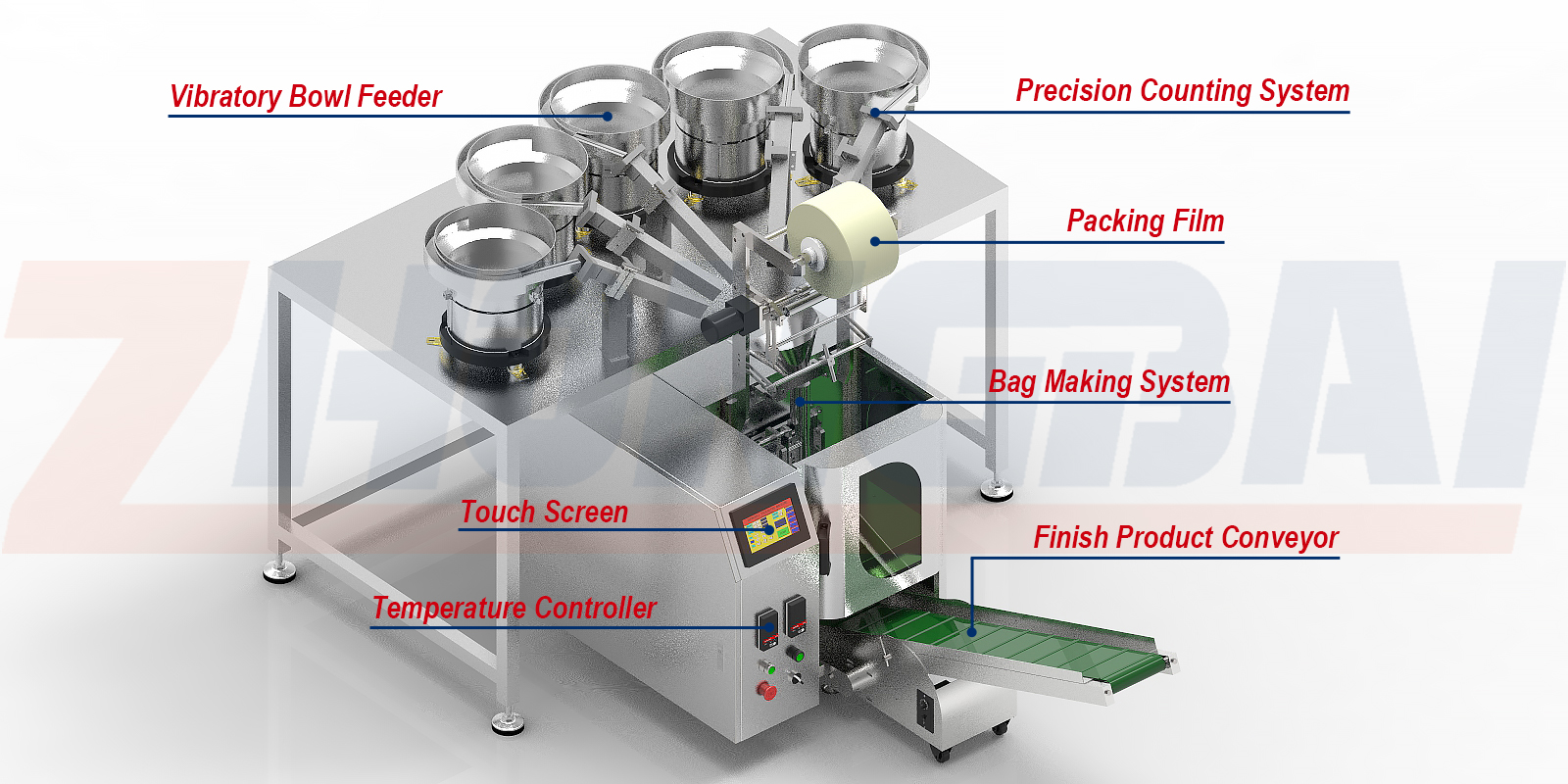

Main Structure:
Technical Specificatioin:
Model: ZB-60D5
Capacity: 10-50bags/min
Counting quantity: set on touch screen
Bag width: max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 3KW
Voltage: 220V, 50/60HZ
Machine dimension: (L)2350×(W)1800×(H)1500mm
Packing material: Plastic film | Paper film | Premade pouch

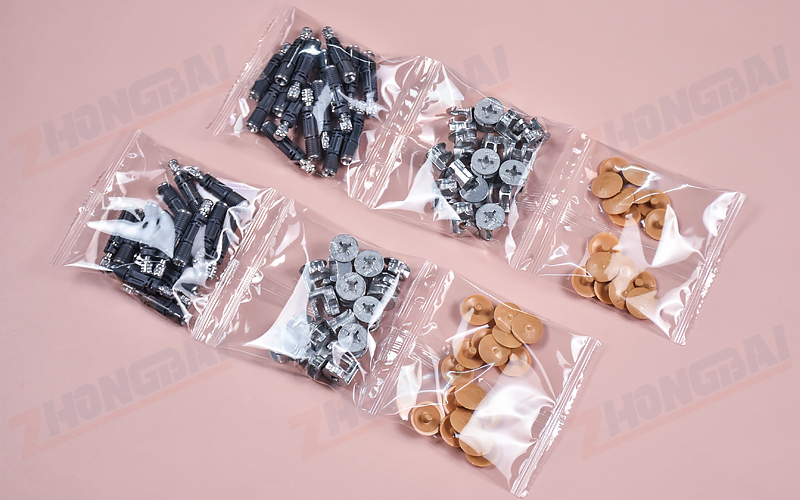

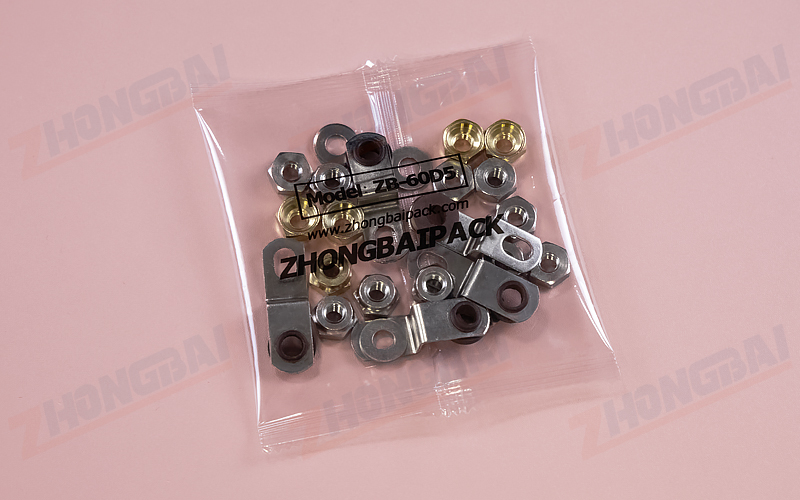

Packaging Samples:
Optioinal Devices:

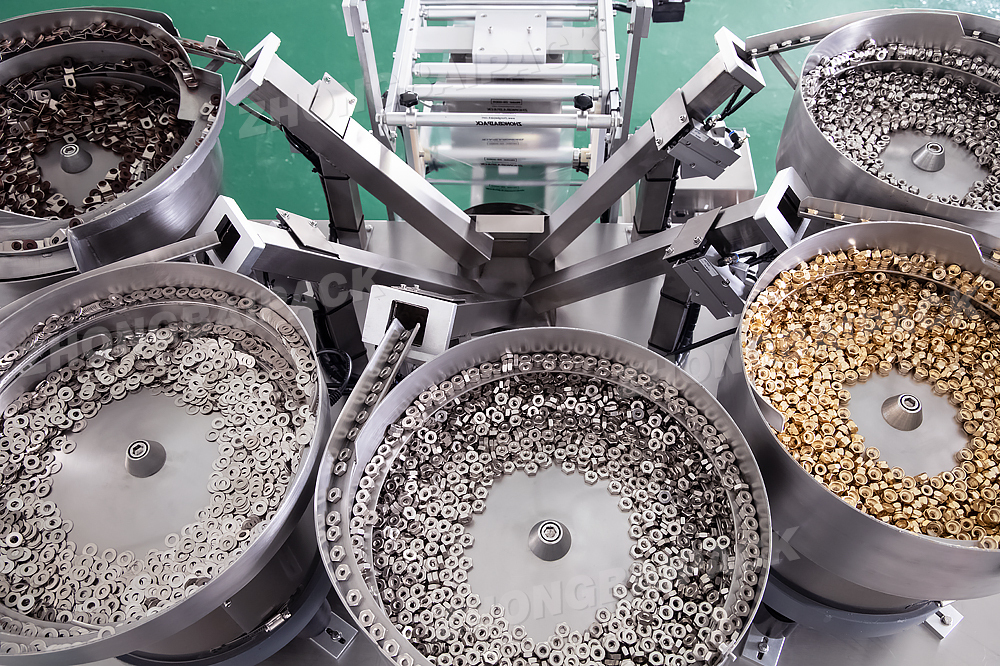

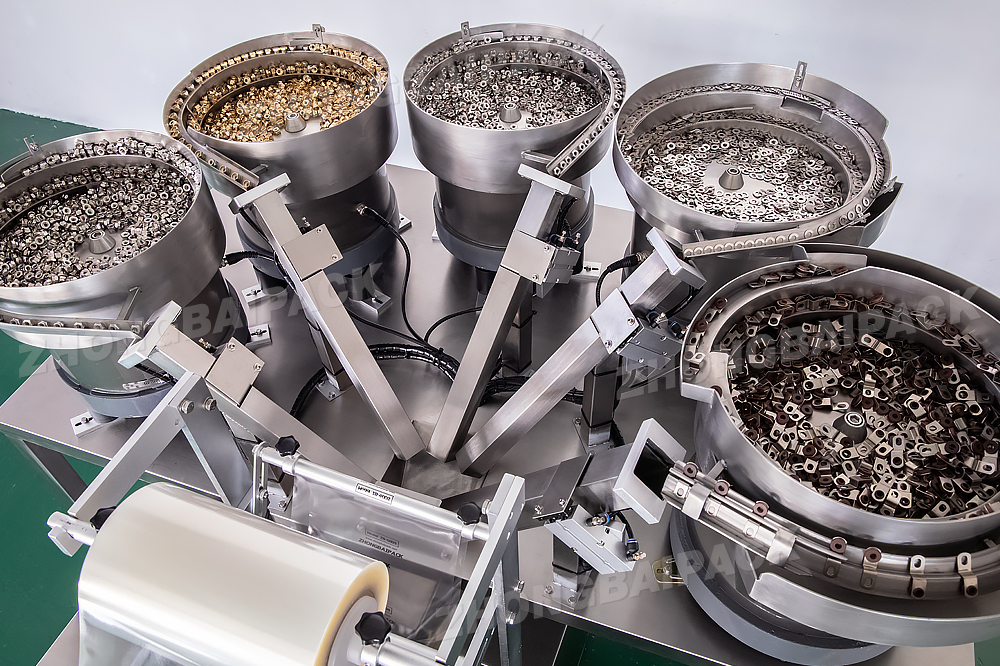

Depending on your specific packaging requirements, it can be customized and connected from 1 up to 30+ vibratory bowl feeders (or mixed with manual feeding stations) to pack multiple different hardware parts into a single bag simultaneously.
The machine utilizes advanced fiber-optic counting sensors or photoelectric sensors for each individual channel. The PLC system coordinates all bowls to release the exact required quantity per part, ensuring 99.9% counting accuracy and eliminating missing or incorrect parts in your hardware kits.
A: Yes, completely. The machine is controlled by an intelligent PLC system with a user-friendly touch screen interface. You can easily program, adjust, and save different recipes (e.g., Recipe A: 4 screws + 4 nuts + 4 washers; Recipe B: 2 bolts + 2 brackets). Switching between recipes takes just a few simple taps on the screen.
