Flat Head Screw Counting Bagging Machine with Check Weigher
No.ZB-S251

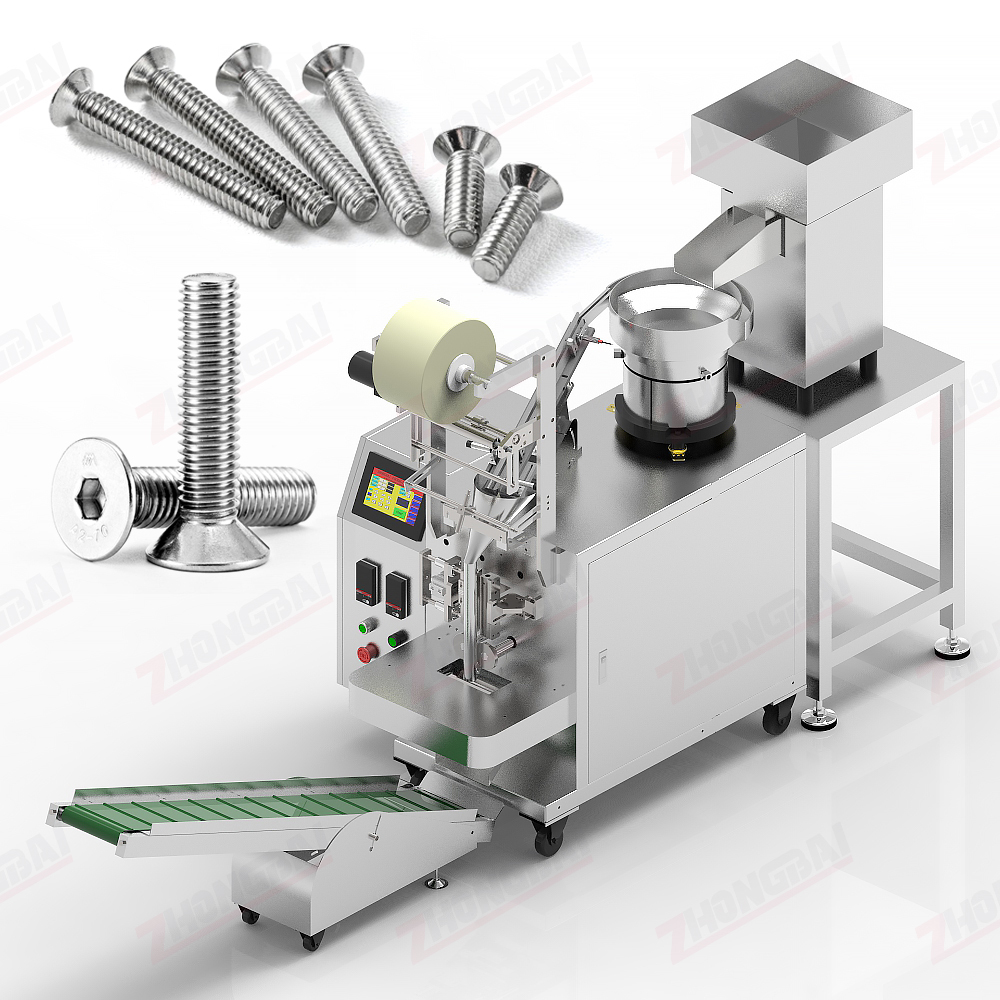

▶ ZB-60D1 Automatic Flat Head Screw Counting Bagging Packing Machine with Check Weigher.
▶ The machine uses a linear track counting system, suitable for flat head screws (such as countersunk screws, wood screws, drywall screws etc), where screws are aligned and conveyed past a high-precision sensor for accurate piece counting.
▶ This integrated system is equipped with refill hopper for non-stop operation and an integrated check weigher for guaranteed weight accuracy in every bag.

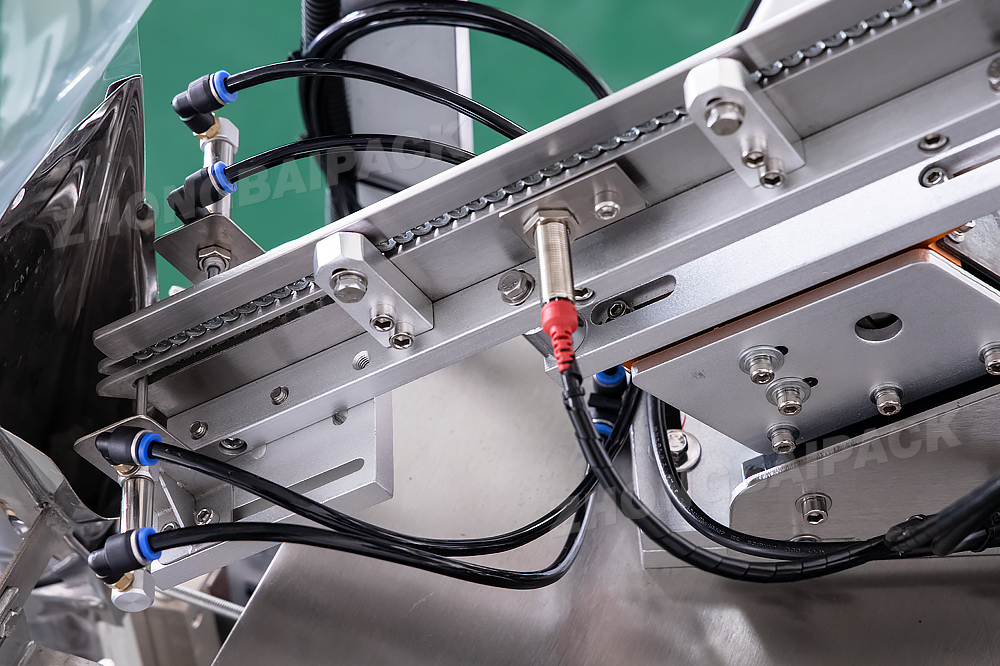

▶ This screw counting bagging machine utilizes a straight-track counting method coupled with high-response photoelectric sensors, achieving high-precision and high-speed counting. ▶ The check weigher ensures that only packages with the correct weight are released as final products.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure:constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

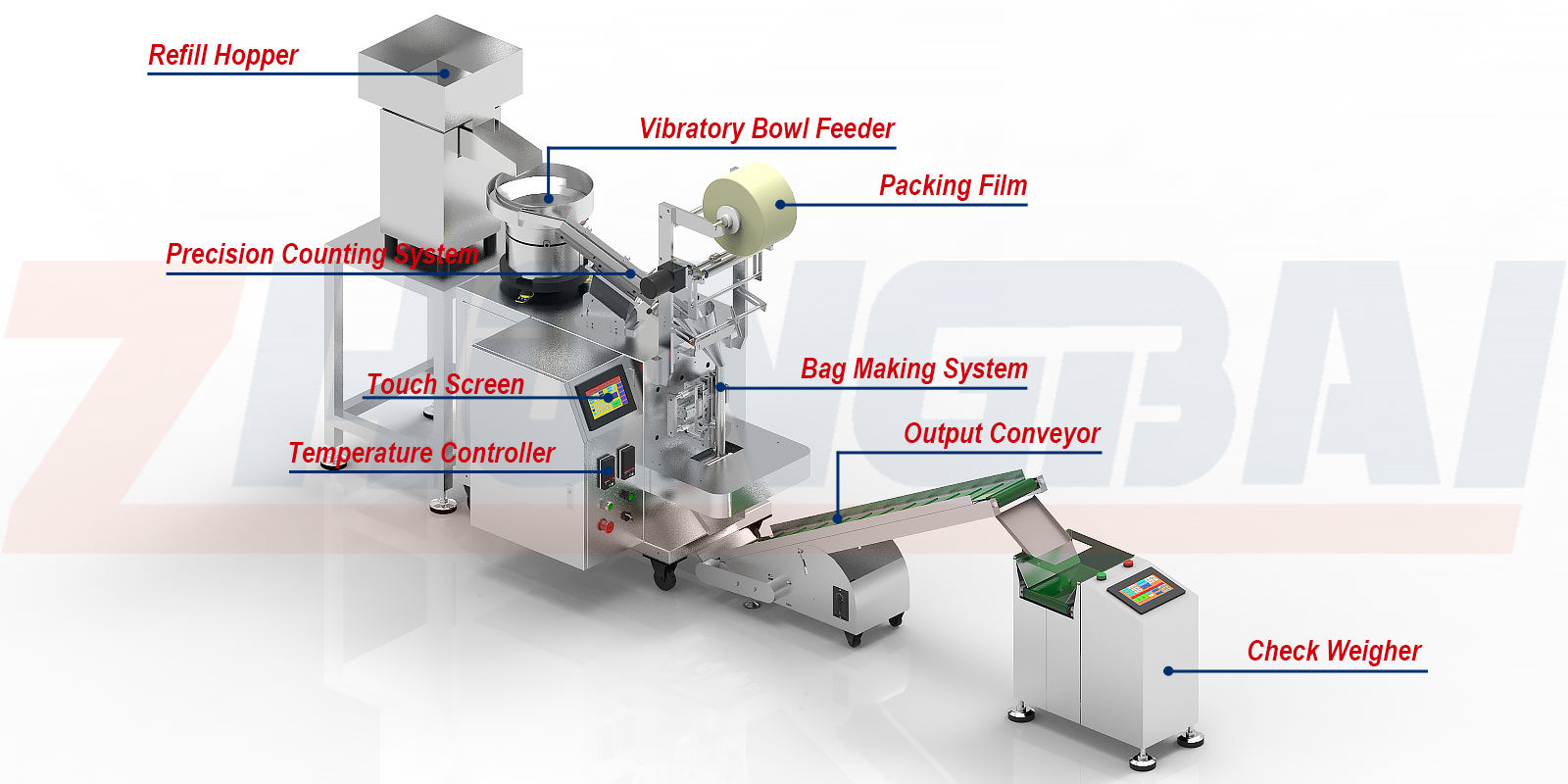

Main Structure:
Technical Specificatioin: Model: ZB-60D1 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 1.8KW Voltage: 220V, 50/60HZ Machine Dimension: (L)2100×(W)750×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch
Packaging Samples:
Optioinal Devices:
FAQ
1. What screw sizes are supported by this screw counting and bagging machine?

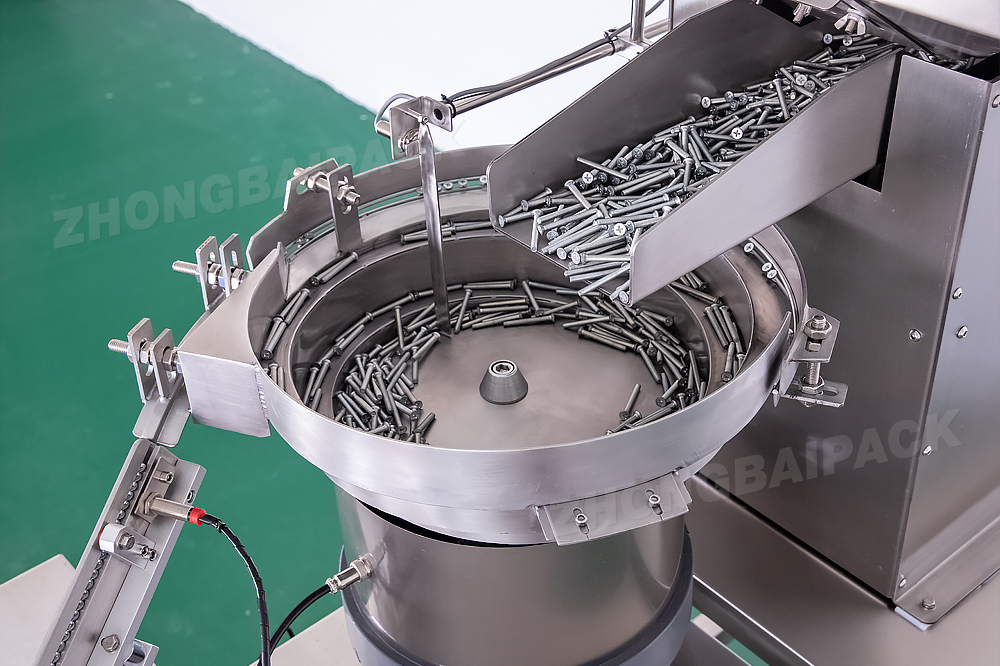

The machine uses a linear track counting system and typically handles thread diameters from M2 to M10, with lengths ranging from 16mm to 60mm (longer lengths are available upon request). Both the vibratory bowl feeder and the linear track counting system can be customized to fit your specific dimensions, ensuring high-precision counting.
2. What is the packing speed of the screw counting and bagging machine?
The packaging speed depends on the screw size and quantity per bag, and usually reaches between 30 and 70 bags per minute.
3. Can I change bag sizes?
The bag width is fixed and custom-made, changing bag width would require replacing the bag former. Bag length can be adjusted directly on touch screen.
