Hardware Screw Kitting Packing Machine with Two Bowl Feeders
No.ZB-S221

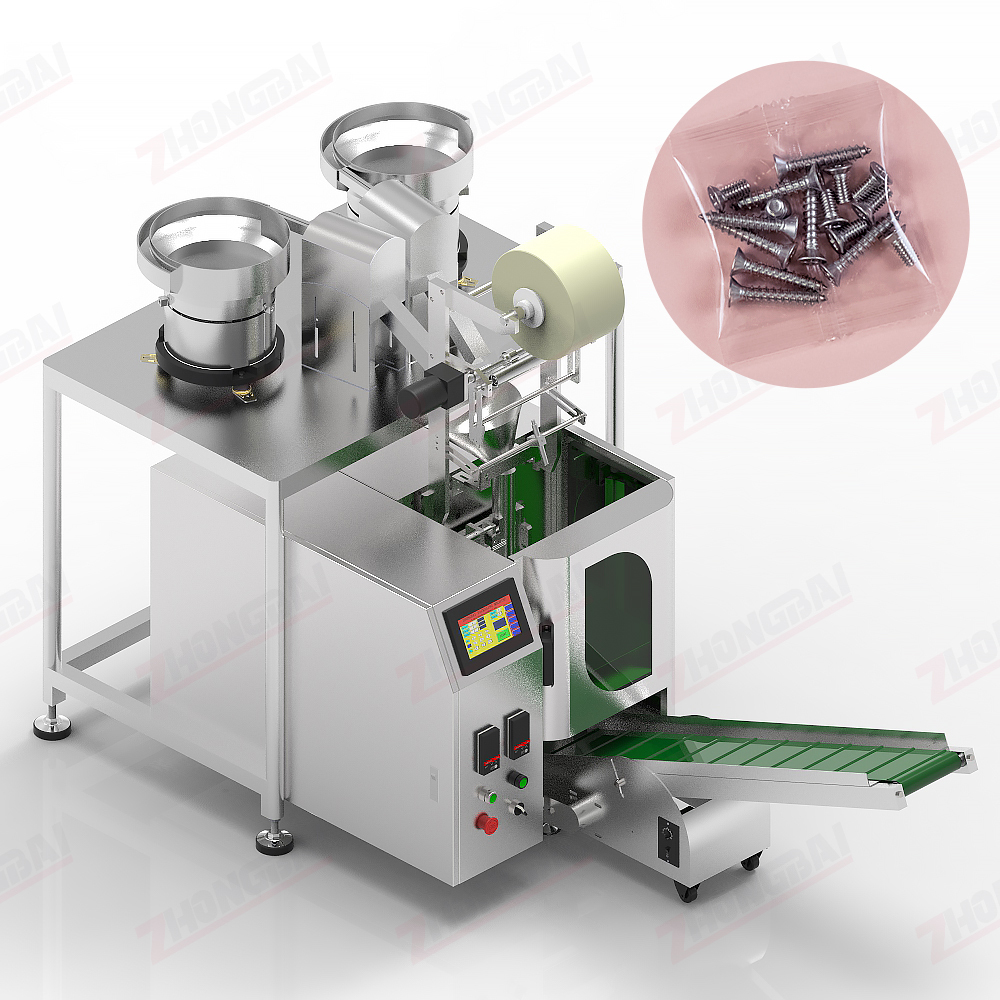

▶ ZB-60D2 Hardware Screw Kitting Packing Machine with two Bowl Feeders.
▶ Advanced sensors and software algorithms provide high accuracy in automating the screw counting kitting process.

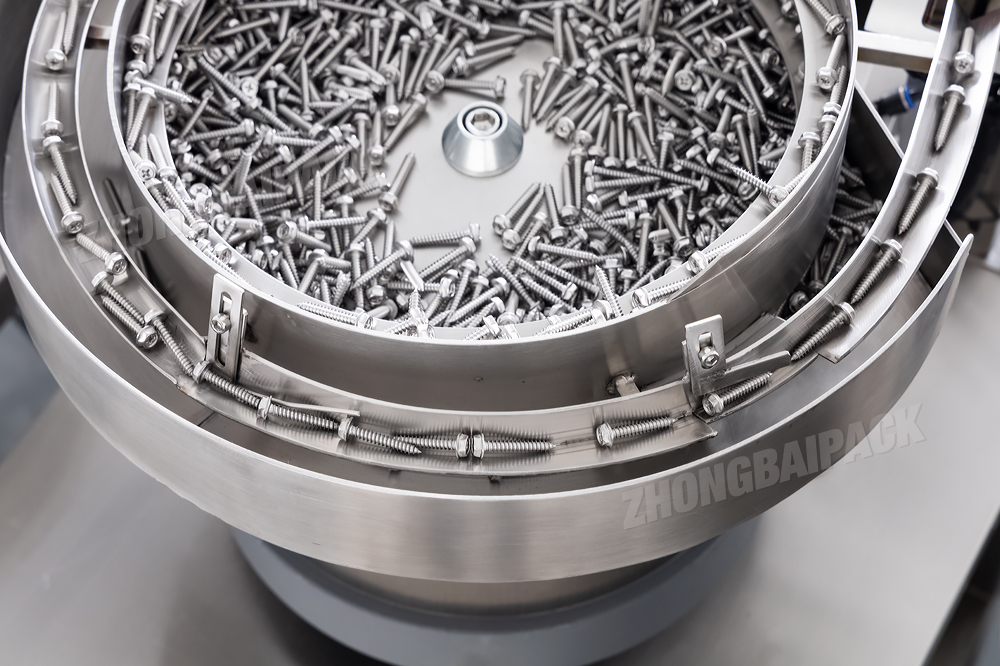

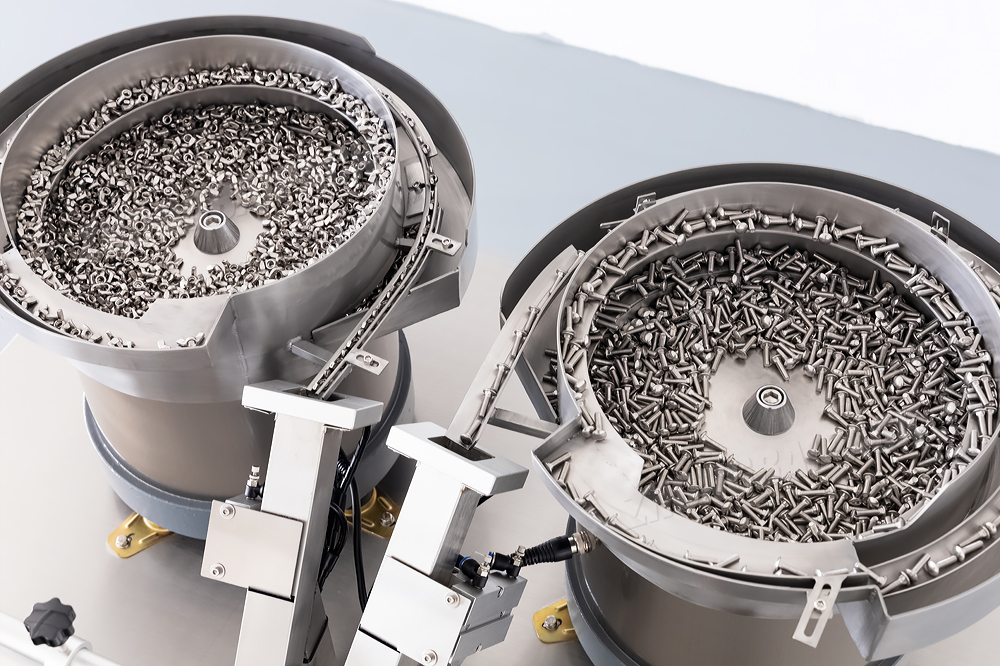

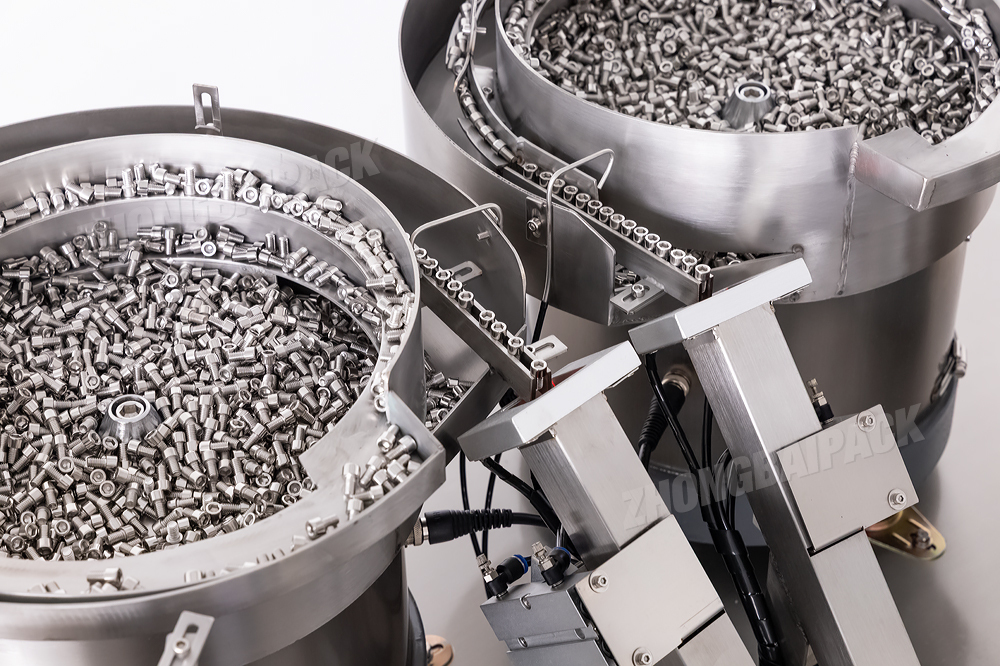

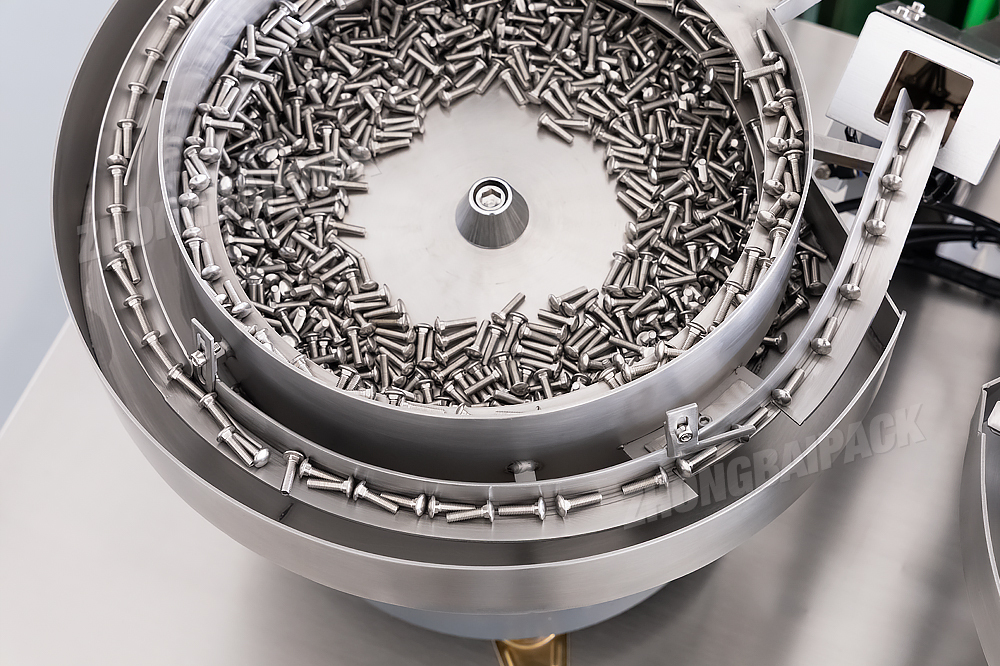

▶ This machine is equipped with adjustable bowl feeders that accommodate screws of flexible diameters and lengths, making it easy to change the sizes of the screws to be packed.
▶ The machine allows handling of either sets of screws or a single type, with easy adjustment of the counting quantity per bag.
Highlights: ▶ This screw kitting packing machine is equipped with two flexible bowl feeders, allowing for the handling of different sizes of screws with easy and quick changeover. ▶ The machine allows for easy adjustment of the quantity of screws per package and the total number of packages in an order, providing flexibility for your specific packaging requirements. ▶ The machine can be custom-configured with 1 to 5 vibratory bowl feeders, each equipped with a counting system, allowing it to handle either sets of screw or a single type.
Features
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure:constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

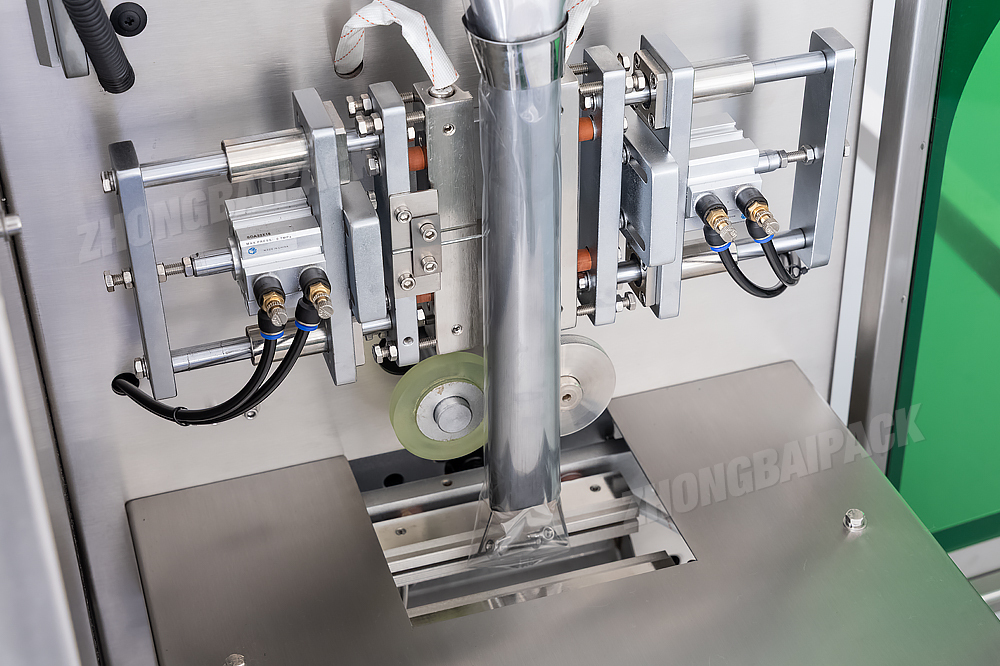

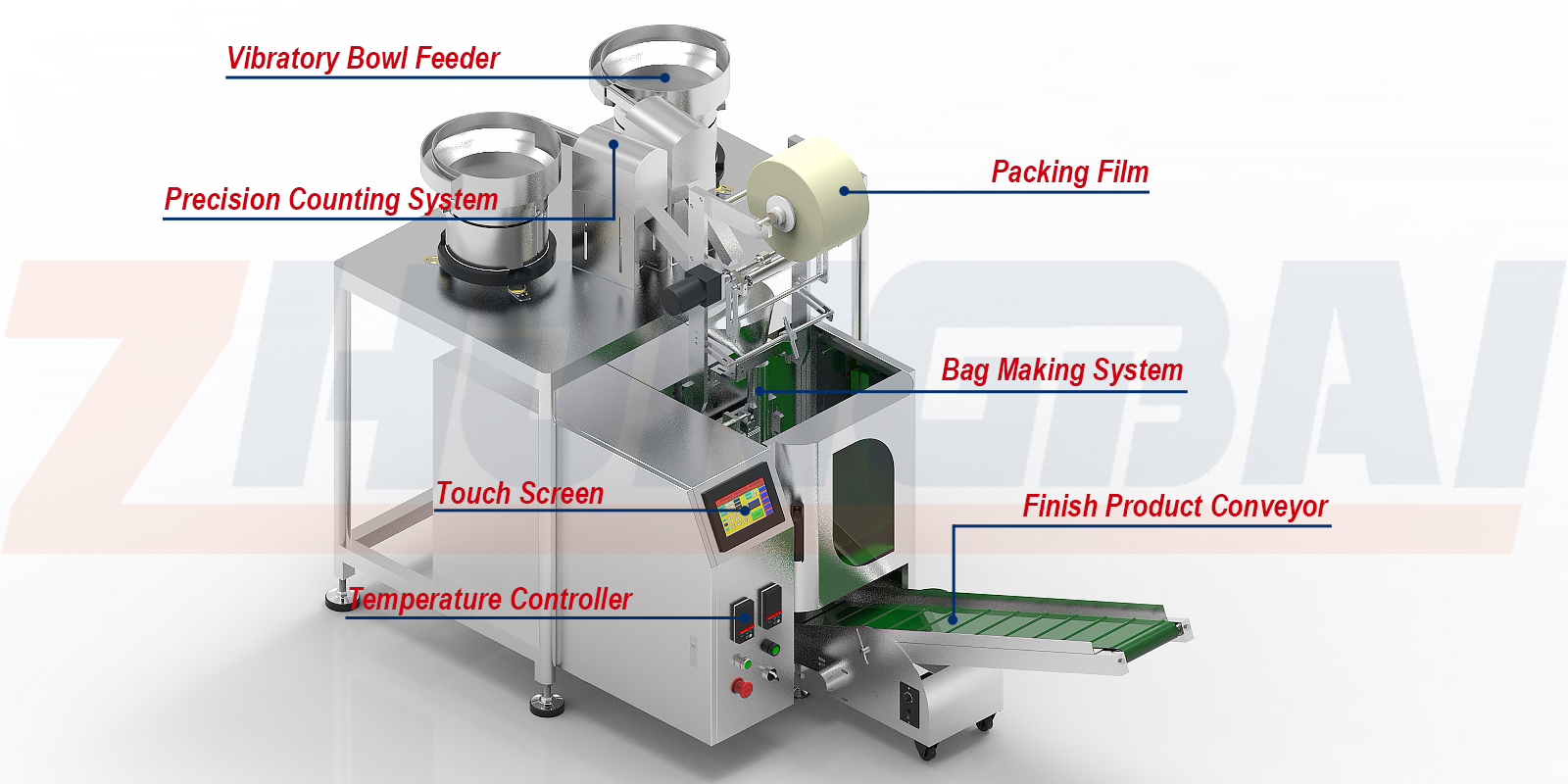

Main Structure:
Technical Specificatioin: Model: ZB-60D2 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 2.1KW Voltage: 220V, 50/60HZ Machine Dimension: (L)2150×(W)1050×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch

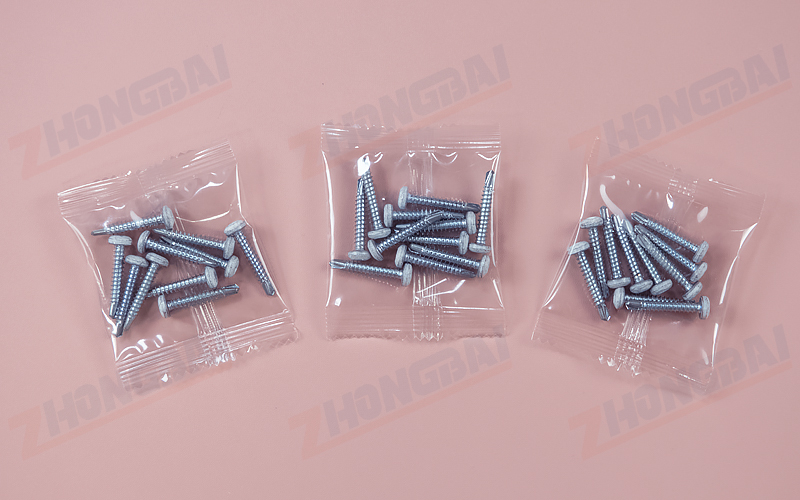

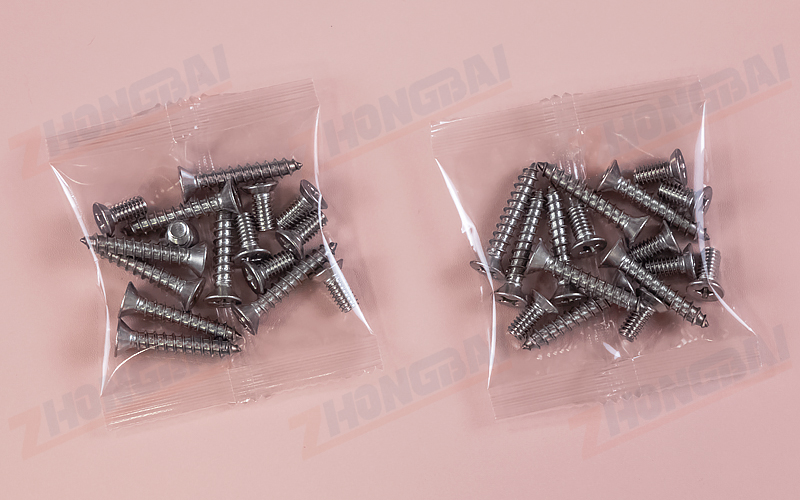

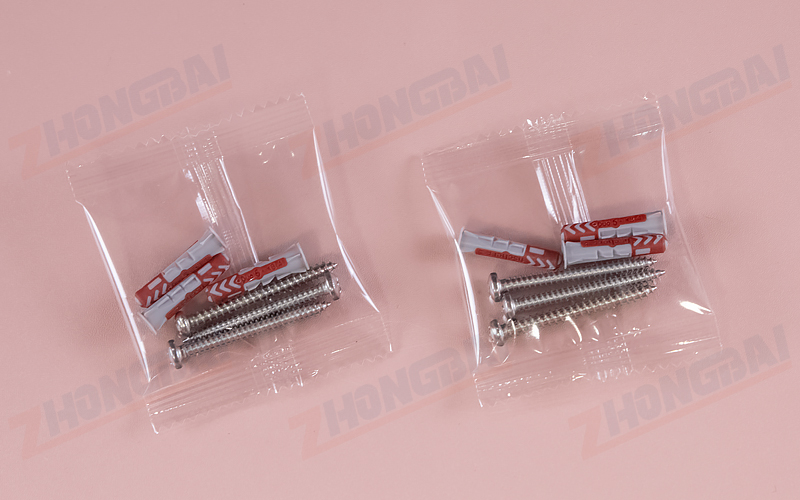

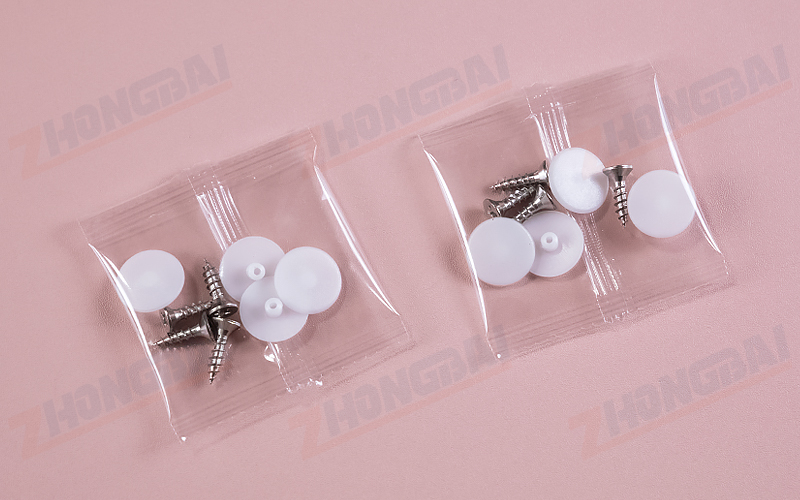

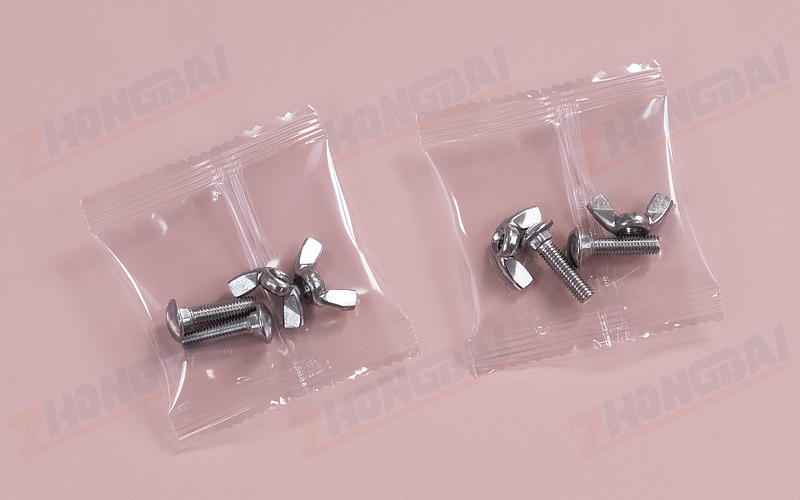

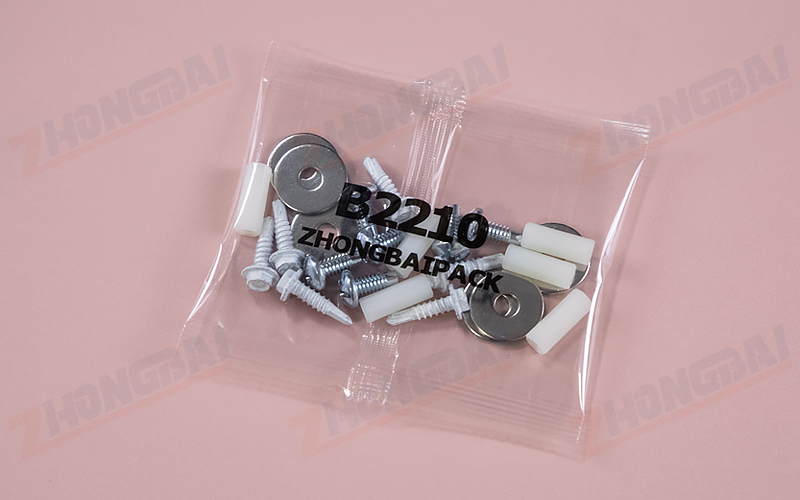

Packaging Samples:

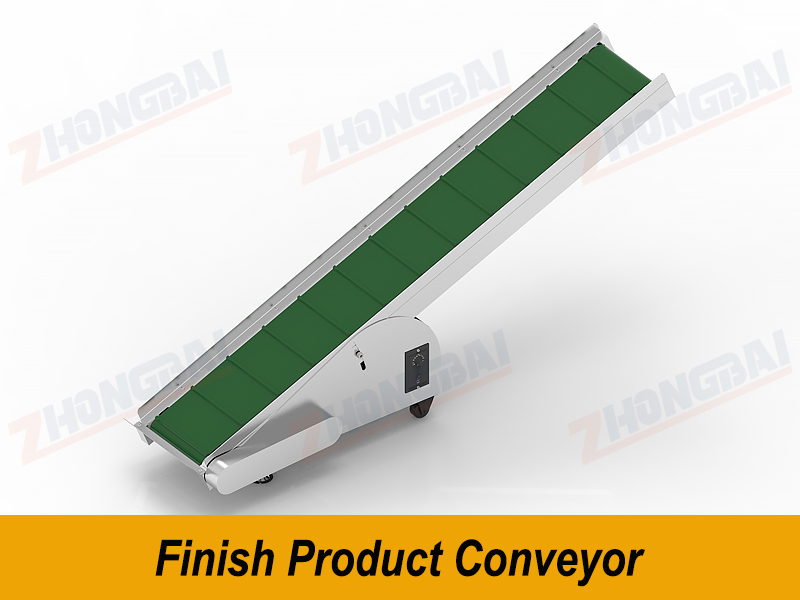

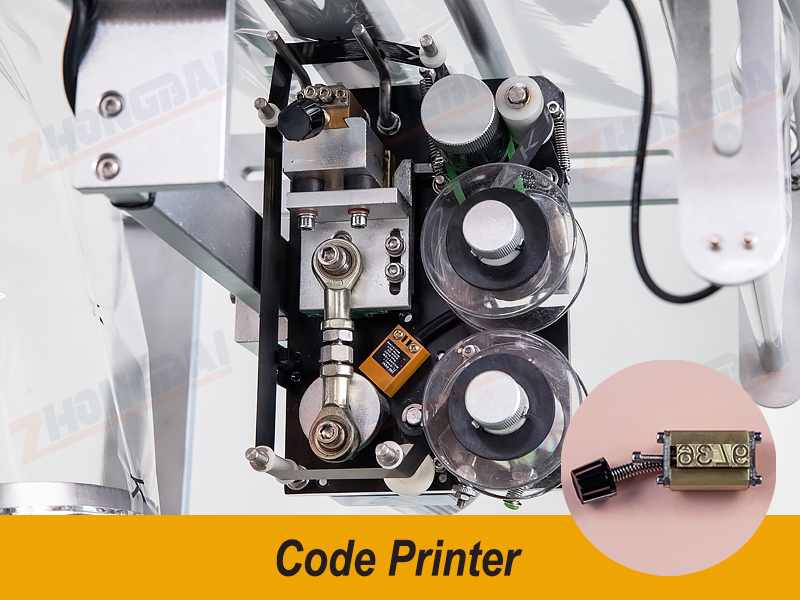

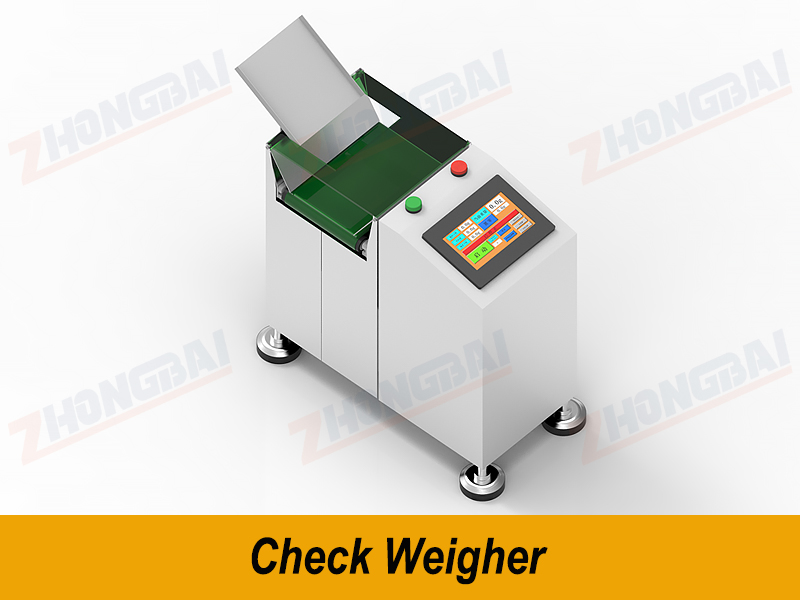

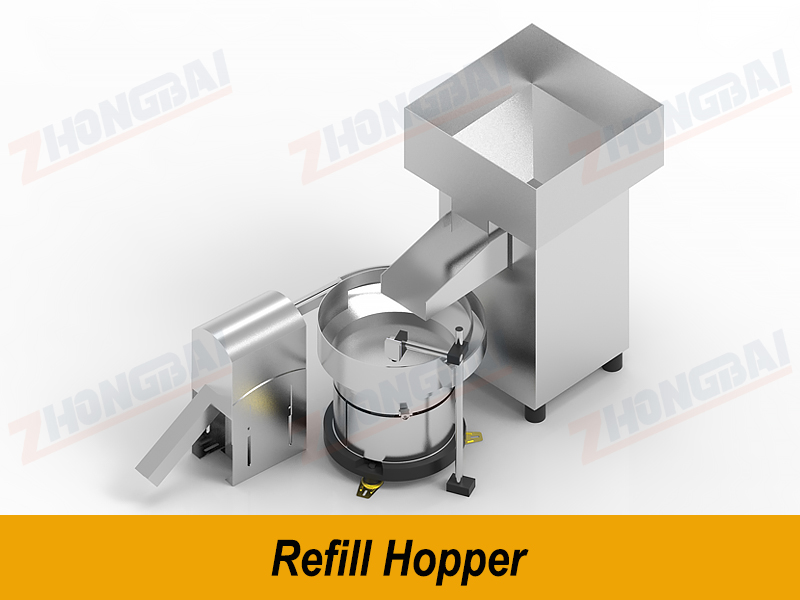

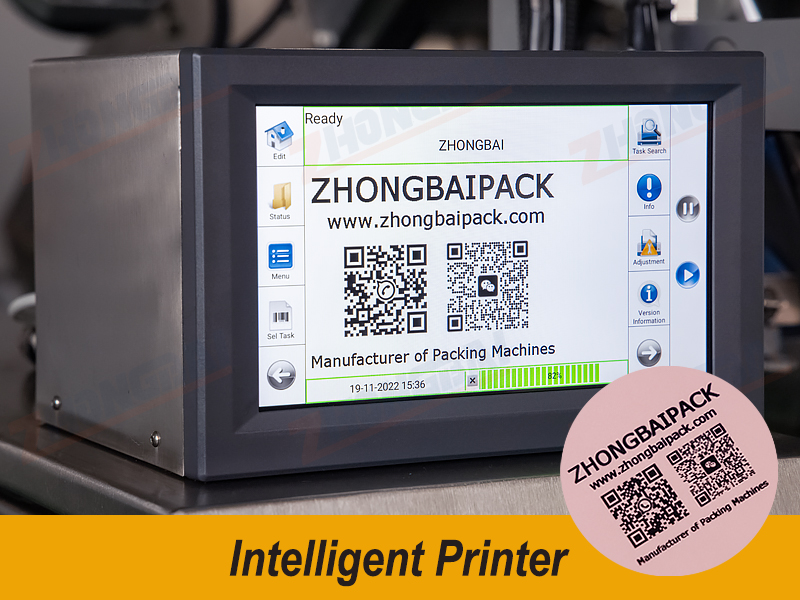

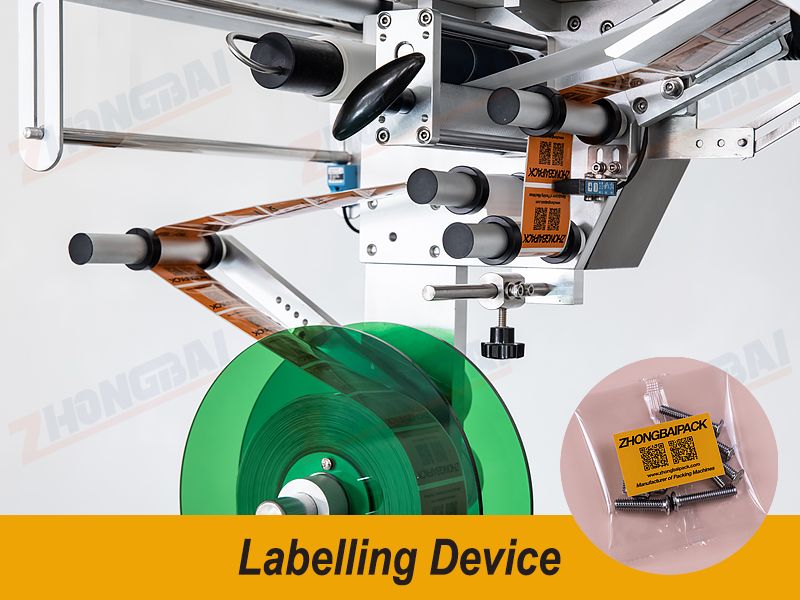

Optioinal Devices:
FAQ
1. What sizes of screws can be handled by this screw kitting packing machine?
The ZB-60D2 Screw Kitting Packing Machine was custom-built for a customer in the United States to package two types of screws into one kit, with a maximum screw length of 50 mm. It can also be equipped with custom vibratory bowl feeders to handle kits containing screws, bolts, washers, nuts, and irregularly shaped components in various sizes, up to 100 mm in length.
2. Is the interface in English?
Yes. It features an English-language touch-screen human-machine interface (HMI) for easy operation. Other languages are available upon customer request.
3. Can I pack only one type of screw (e.g., using only one bowl)?
Yes, you can easily toggle individual bowls on or off via the touch screen interface. The machine will only execute the counting cycles for the active ones, allowing you to use the same machine for both single-type and mixed-type screw kits.
