Small Screw Parts Counter Bagging Machine with 6 Bowl Feeders
No.ZB-S246

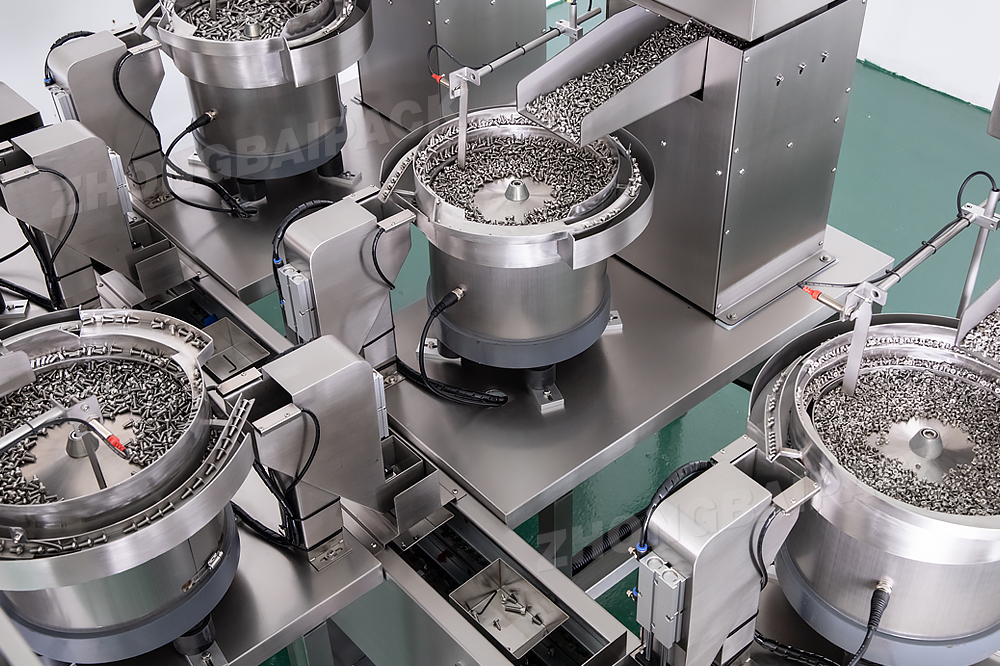

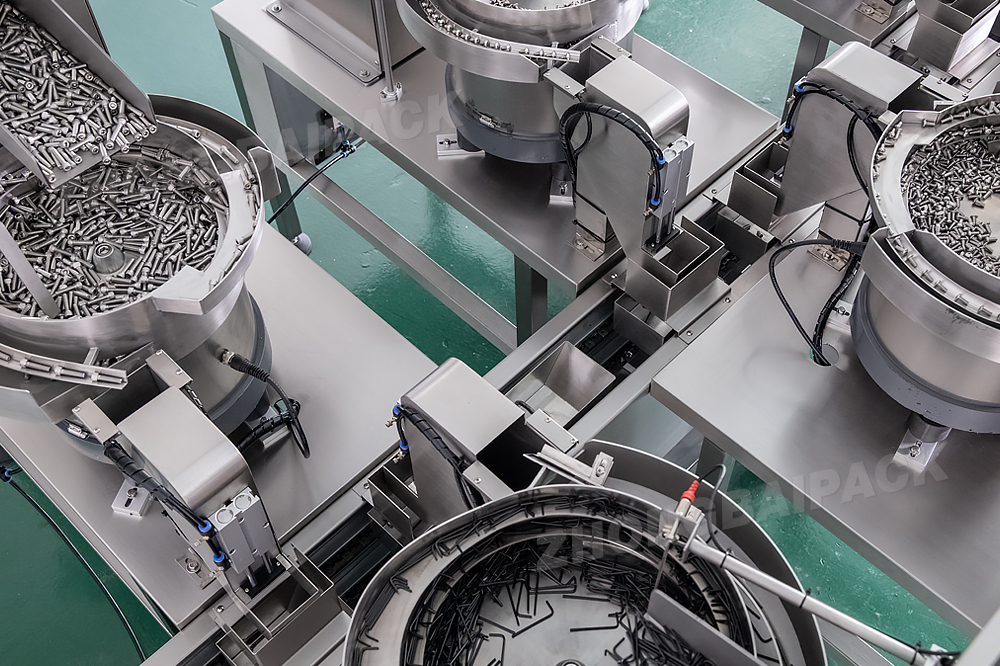

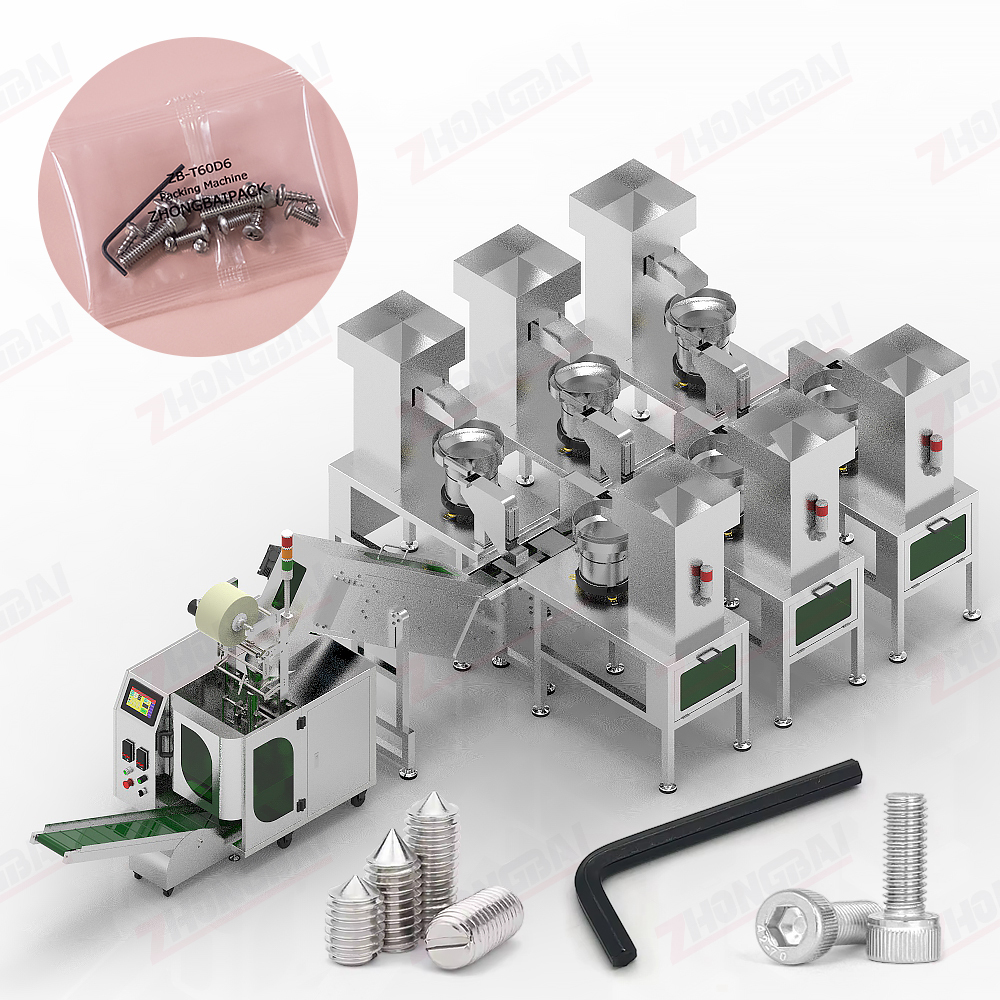

▶ ZB-60D6 Small Screw Parts Counter Bagging Machine with 6 Bowl Feeders, Refill Hoppers and Intelligent printer.
▶ The machine is suitable for counting bagging and packing screw, allen key, hardware components as kits.
Highlights: ▶ This screw and parts bagging machine uses PLC and HMI controls, allowing operators to select pre-set "recipes" on touch screen to switch between all related parameters for different kit parts, including feeder operation, count quantity, and packaging settings. ▶ The machine is equipped with refill hoppers, significantly extending unmanned operation time by preventing stoppages caused by a material shortage in the vibratory bowl feeders.
Application: ● Fasteners: screw, bolt, nut, washer, rivets, nails etc. ● Plastic/Rubber Parts: wall anchor, rubber o-rings, toys, lego building bricks, small plastic parts. ● Hardware Parts: hardware components, hardware connectors, metal parts etc. ● Furniture Accessories: furniture connectors, furniture fasteners, furniture fittings, furniture accessories, door handle, hinge etc. ● Others: small hardware or plastic parts, regular shape or irregular shape of parts.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Precision Counting: advanced sensors and software algorithms ensure precise counting and reduce the risk of missing or extra components.
● Versatility: the machines can be adapted to package hardware and plastic components in various sizes and shapes. They come with adjustable settings for product count and bag length , allowing customization based on the specific packaging requirements.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Programmable Recipes: allows operators to set up different packaging configurations recipes that specify the quantities of each component in a kit.
● Flexible Configuration: modular design enables easy addition or removal of counting modules to accommodate changes in product offerings.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Construction: built with high-quality materials, our packaging machines are designed to withstand the rigorous demands of industrial environments. The robust construction ensures long-term durability and reliable performance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

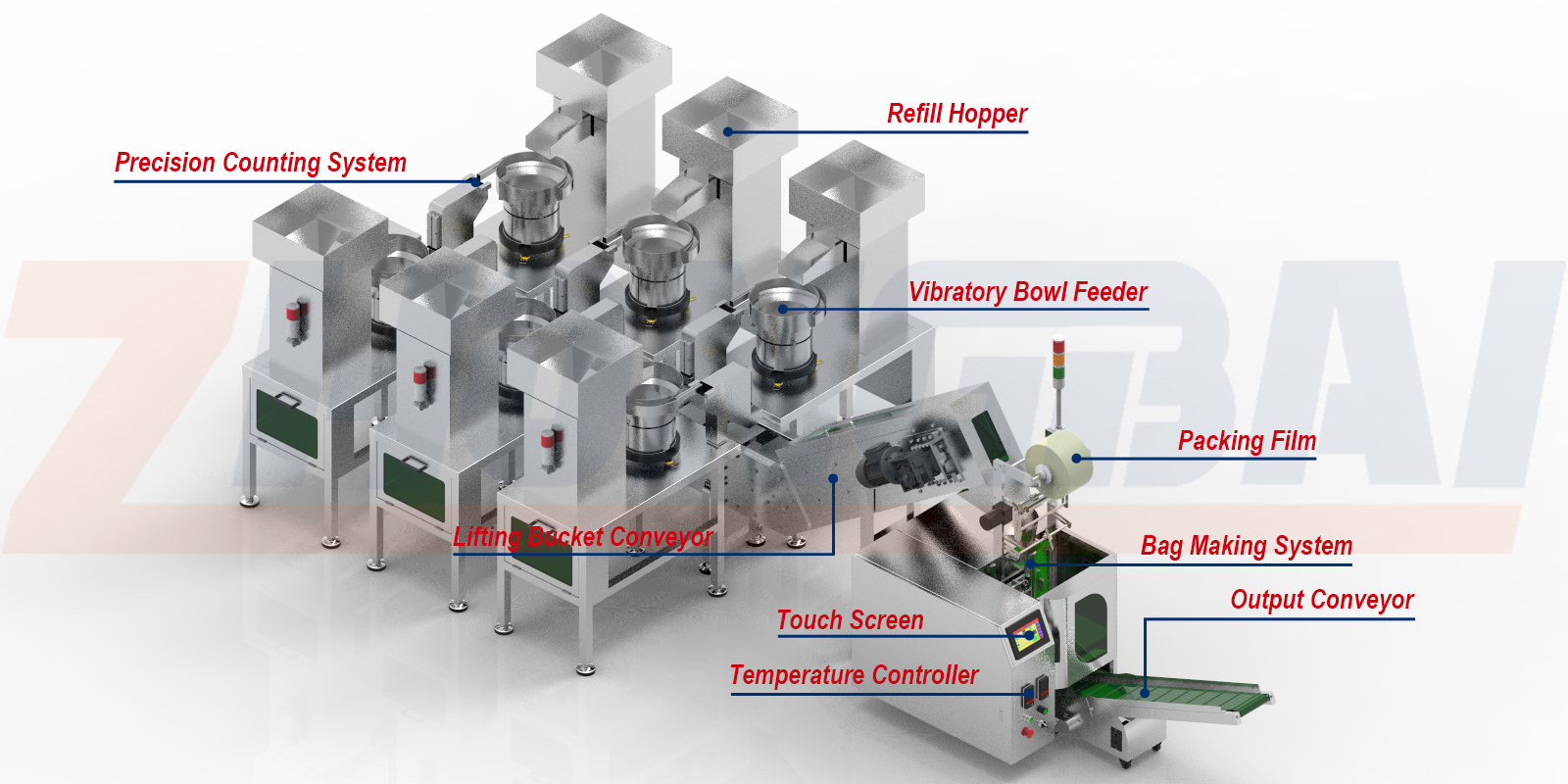

Main Structure:
Technical Specificatioin: Model: ZB-T60D6 Capacity: 10-30bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 3.7KW Voltage: 220V, 50/60HZ Machine dimension:(L)5500×(W)1600×(H)1900mm Packing material: Plastic film | Paper film | Premade pouch

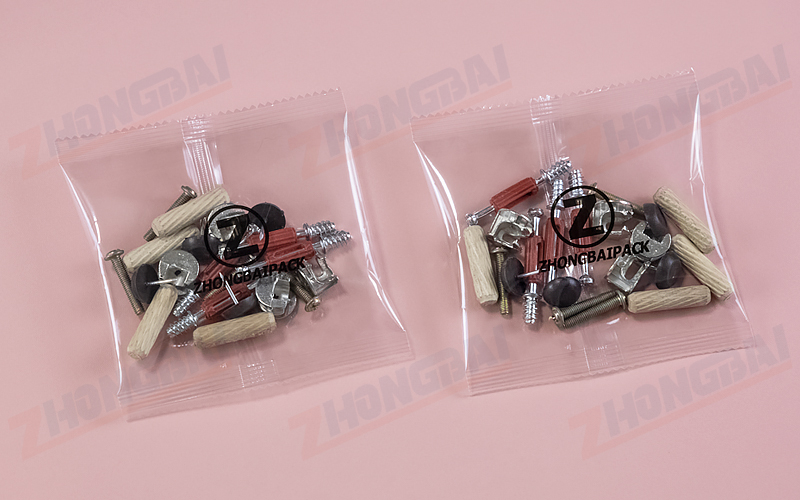

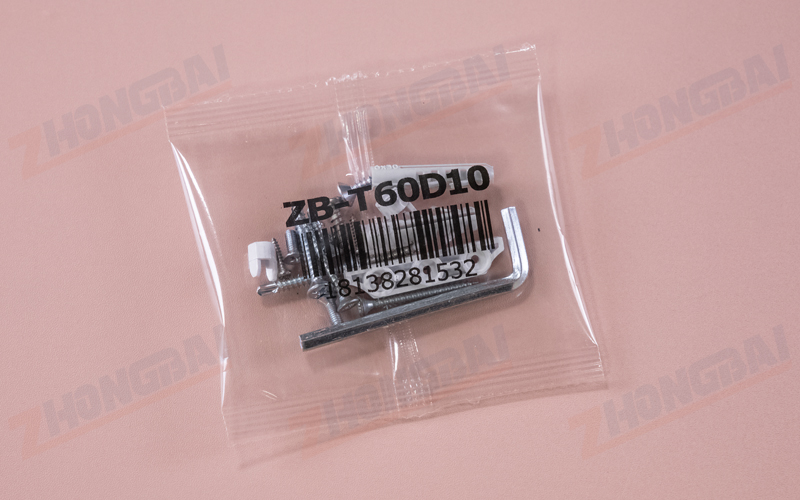

Packaging Samples:
Optioinal Devices:
FAQ

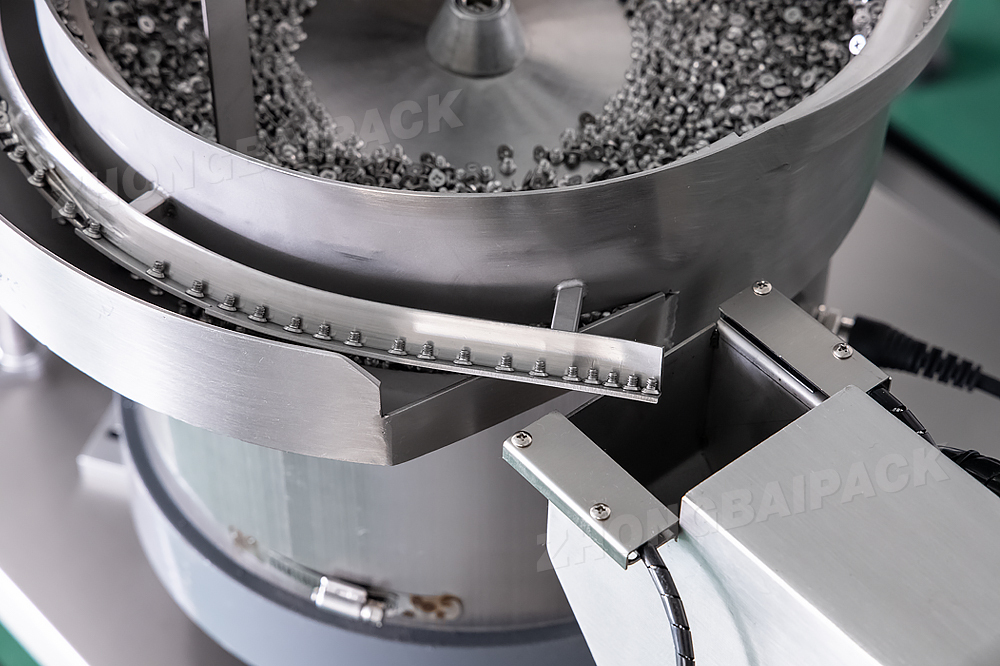

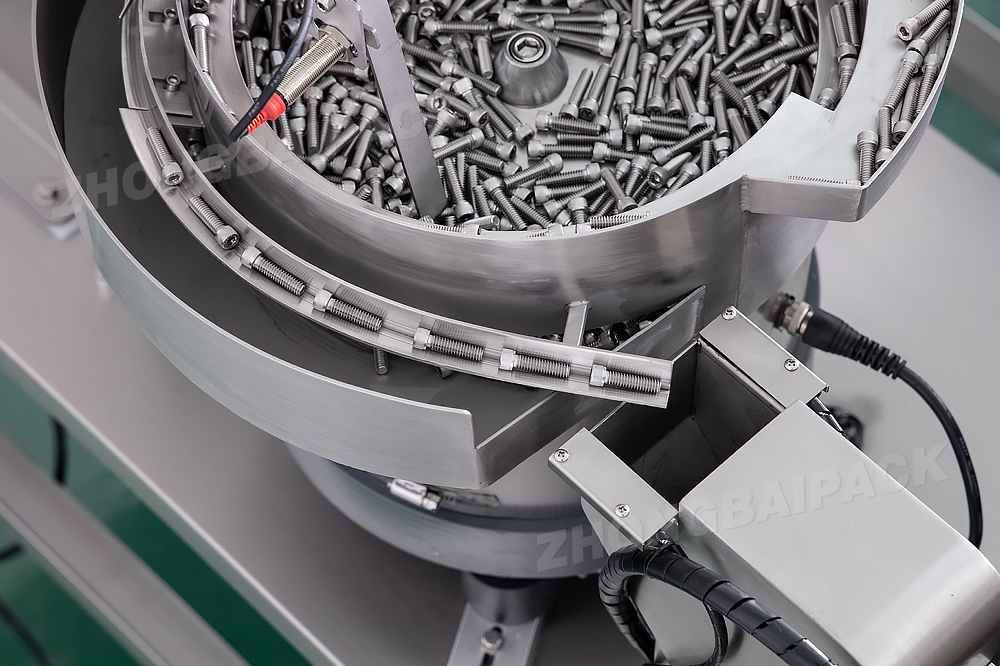

1. Are the vibratory bowl feeders customized for my specific parts?
Yes. The vibratory bowl feeding system is custom-designed based on your actual part samples to ensure parts are oriented, aligned, and fed smoothly in a row. This customization is critical for achieving accurate counting and reliable feeding performance.

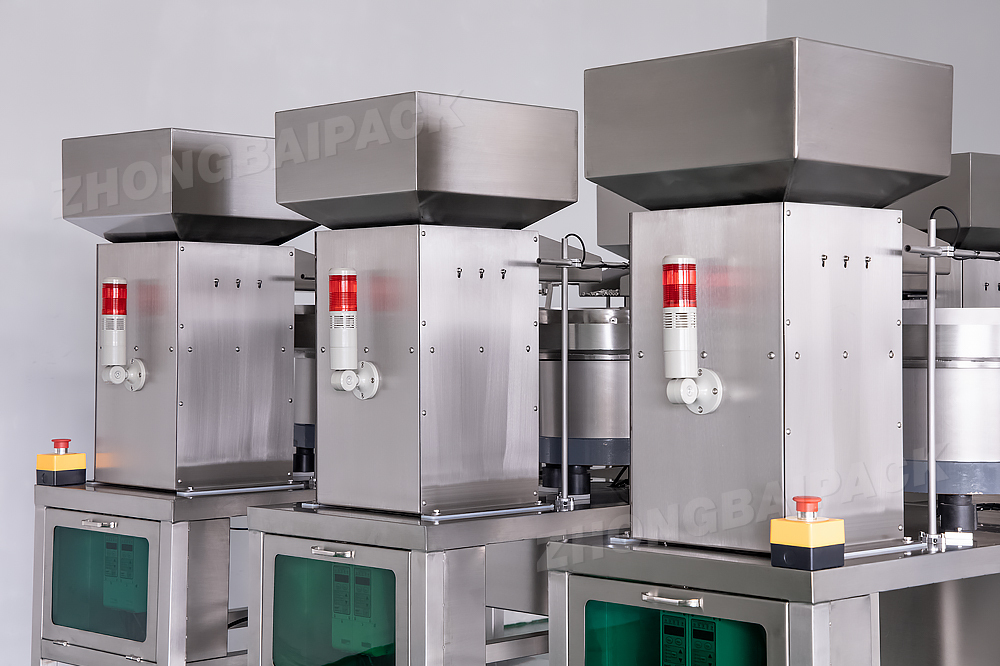

2. What is the advantage of the refill hoppers on this small parts counter bagging machine?
The refill hopper reduces the frequency of manual refilling. This prevents machine downtime due to screw shortages, ensuring continuous, non-stop operation while also lowering labor demands.
3. What specifications should I provide when requesting a quote?
To get the most accurate machine configuration and pricing, be ready to provide: - Product photo, size or technical drawings. - Target count of each component per bag (e.g.,10 screws and 10 anchors per bag). - Desired bag dimensions (width and length).
