Highlights:

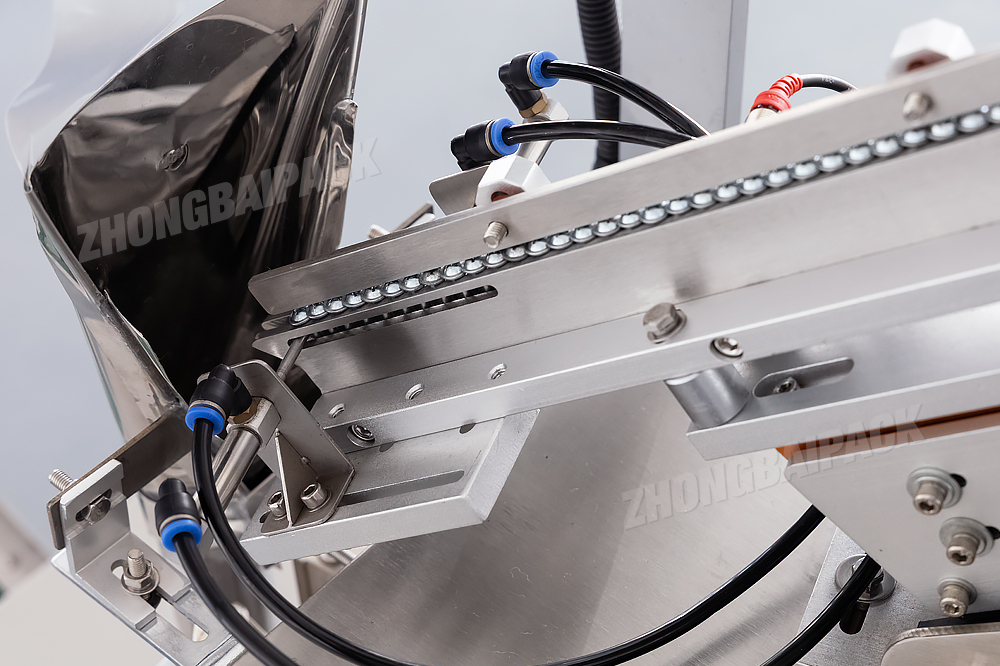

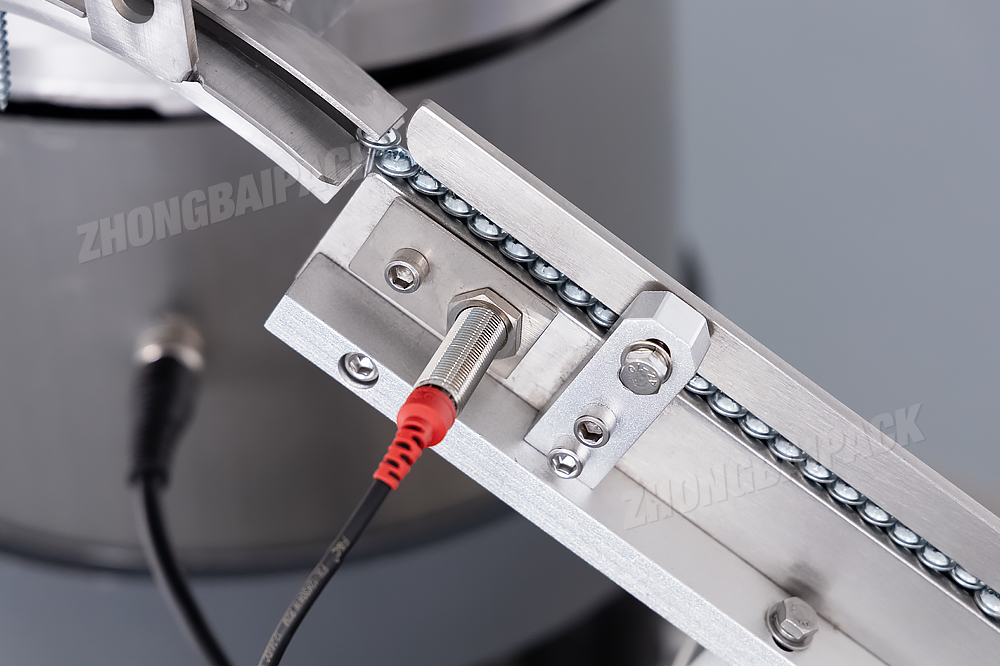

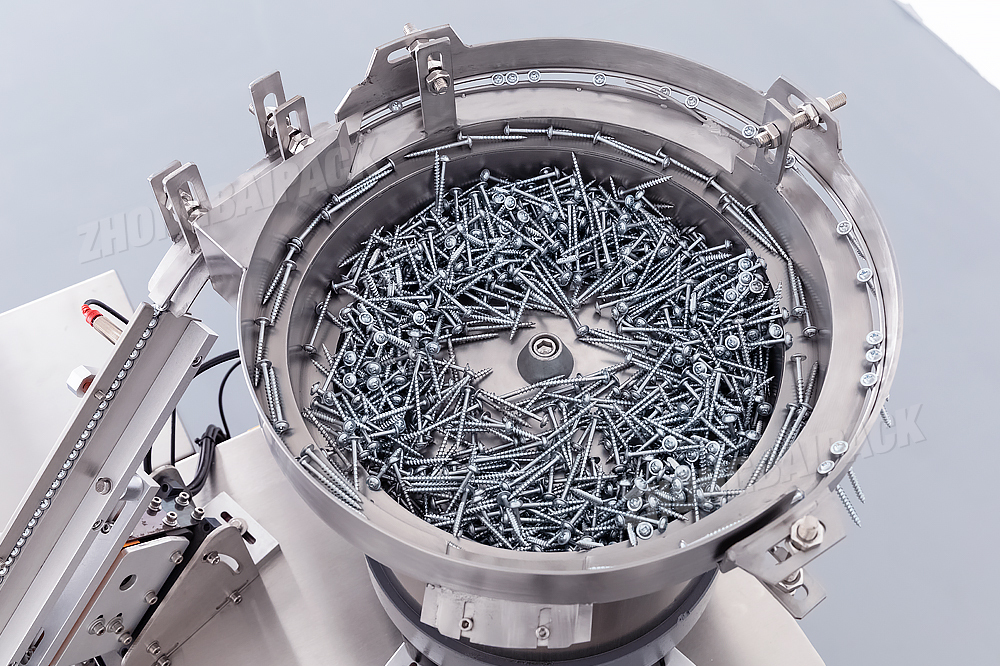

▶ This screw sorting packing machine features automatic vibration bowl feeding combined with a linear track counting mechanism for high-speed, precision counting.
▶ Two methods are available for counting quantity changeover.
Method A: Adjust the cylinder position according to the screw arrangement length to change the single-count quantity.
Method B: Set the number of dispensing cycles via the touchscreen to determine the final package count.

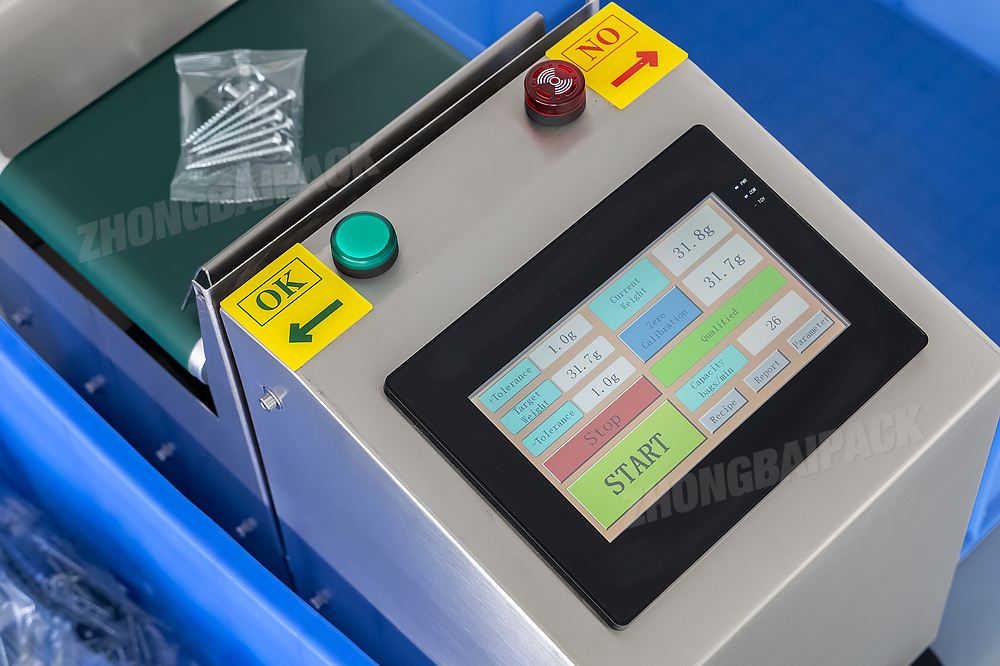

▶ The check weigher is a quality control device integrated into the packaging line. It automatically weighs each package bags in motion, compares it against pre-set acceptable weight limits, and automatically rejects any underweight or overweight packaging.

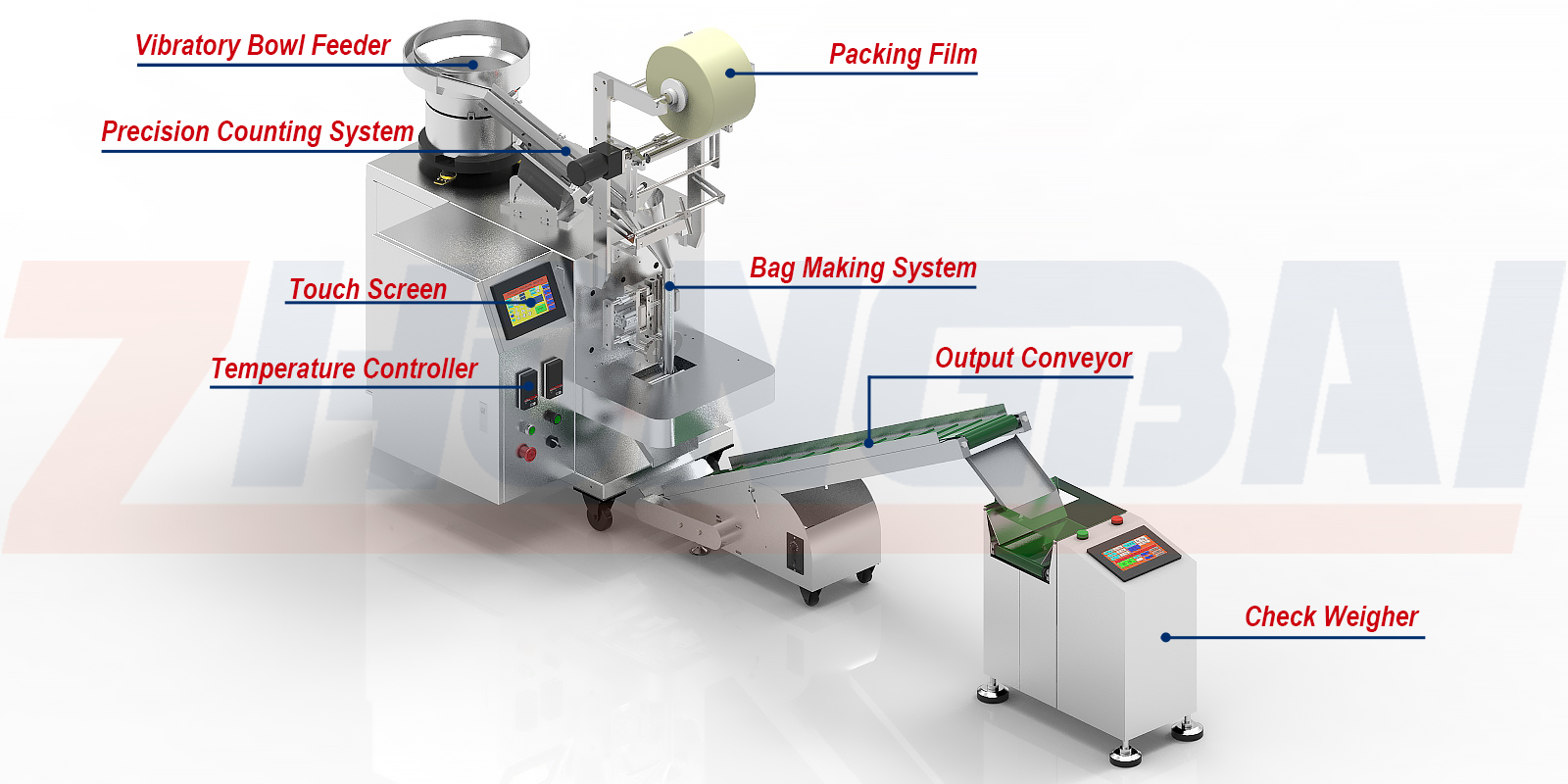

Main Structure:
Technical Specificatioin:
Model: ZB-60D1
Capacity: 10-50bags/min
Counting quantity: set on touch screen
Bag width: max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 1.8KW
Voltage: 220V, 50/60HZ
Machine Dimension: (L)2100×(W)750×(H)1500mm
Packing material: Plastic film | Paper film | Premade pouch

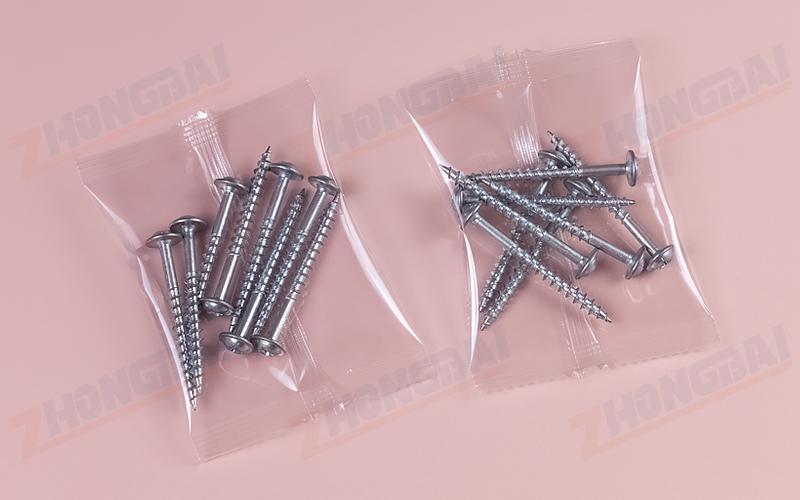

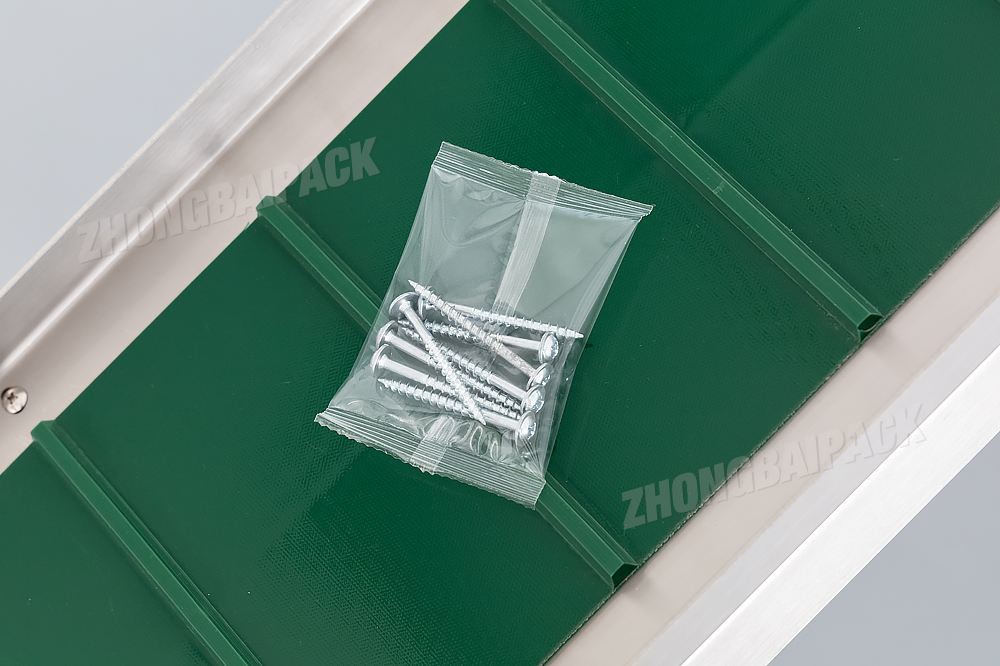

Packaging Samples:
Optioinal Devices:
Yes, ZHONGBAI Screw Sorting Packing Machine is able to handle different screw sizes. This machine was custom-built for a Vietnam customer to package different screw sizes up to 60mm.
Yes. The machine can be equipped with multiple independent bowl feeders (ranging from 2 to 10+ feeders depending on your custom needs). This allows it to simultaneously sort and feed different hardware components—such as screws, nuts, washers, and anchors—into a single pouch, making it ideal for hardware assembly kits.
The machine accommodates standard heat-sealable composite packaging films, such as OPP/PE, PET/PE, and other laminated packing films.
