Highlights:
▶ The machine is designed for kitting and packing small parts in various industries.
▶ The operator can select a pre-set recipe corresponding to the specific kit part. This action will automatically configure all associated parameters, including feeder operation, count quantity, and packaging settings.
▶ The machine can be customized according to the shape and size of the products and can be configured with up to 40 counting modules.
Application:
● Fasteners: screw, bolt, nut, washer, rivets, nails etc.
● Plastic/Rubber Parts: wall anchor, rubber o-rings, toys, lego building bricks, small plastic parts.
● Hardware Parts: hardware components, hardware connectors, metal parts etc.
● Furniture Accessories: furniture connectors, furniture fasteners, furniture fittings, furniture accessories, door handle, hinge etc.
● Others: small hardware or plastic parts, regular shape or irregular shape of parts.

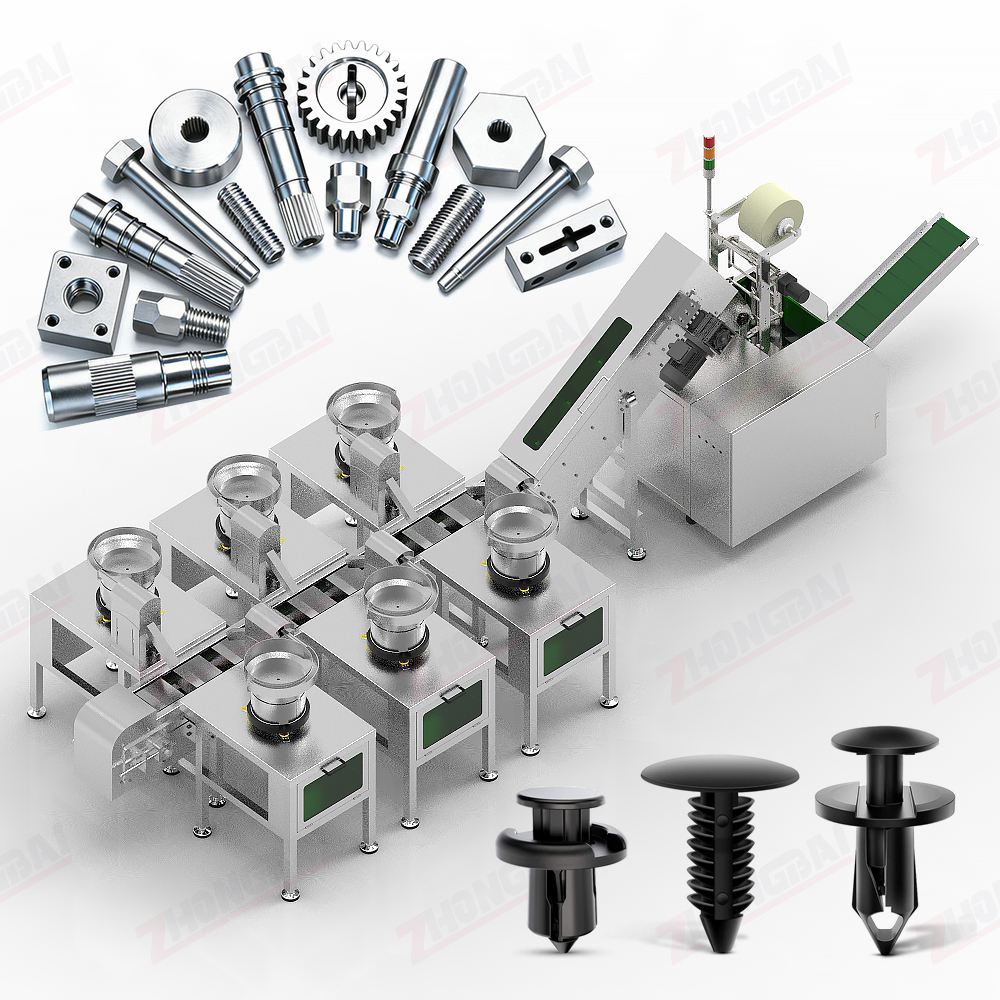

Main Structure:
Technical Specificatioin:
Model: ZB-T60D6
Capacity: 10-30bags/min
Counting quantity: set on touch screen
Bag width: max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 3.7KW
Voltage: 220V, 50/60HZ
Machine dimension:(L)5500×(W)1600×(H)1900mm
Packing material: Plastic film | Paper film | Premade pouch

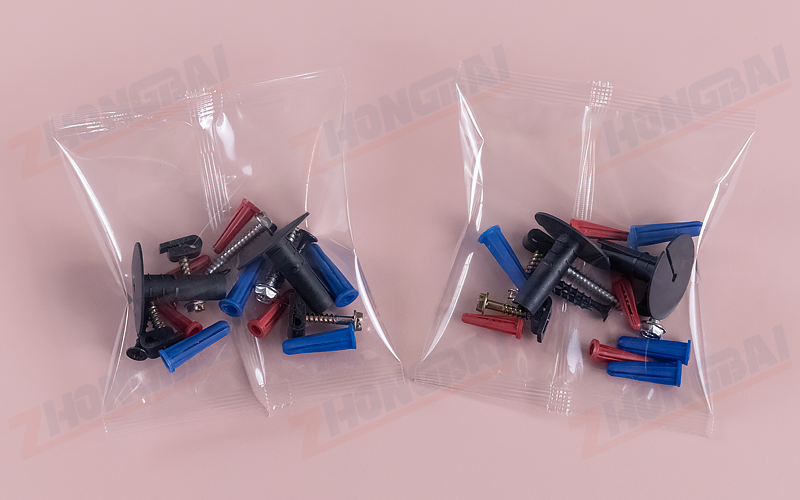

Packaging Samples:
Optioinal Devices:
This machine is specifically engineered to package mixed or matching hardware kits. It can simultaneously handle various screws, bolts, nuts, washers, and matching plastic wall plugs, anchors, expansion tubes, or plastic clips into a single bag or compartmentalized packaging.
Yes. It features a touchscreen human-machine interface. Operators can easily set the desired count per bag and the total number of bags for an order directly on the screen, with real-time monitoring of the packaging process.
The machine supports a wide range of heat-sealable laminated films, such as OPP/PE, PET/PE, and PET/AL/PE. The high-precision PID temperature control system ensures stable and secure sealing for various film types.
