Plastic Mounting Parts Packing Machine with 7 Feeders
No.ZB-PP273

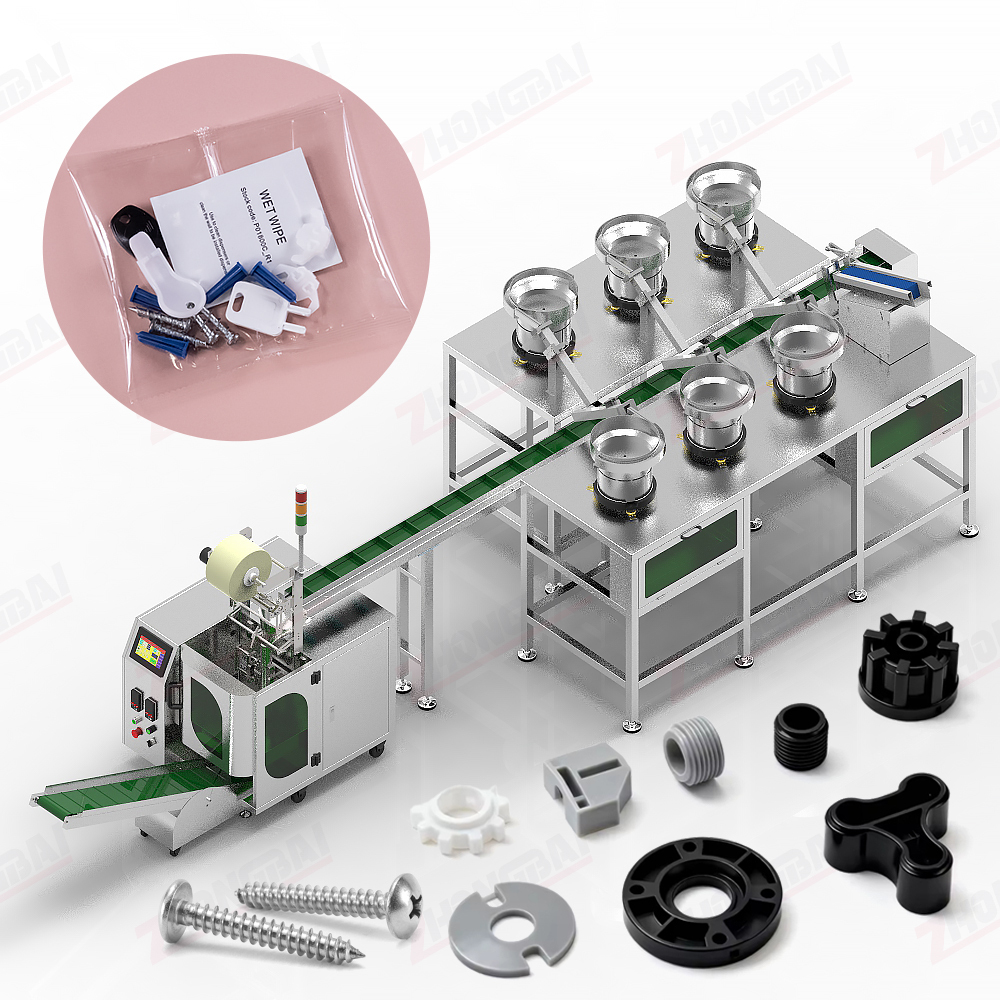

▶ ZB-60D7 Plastic Mounting Parts Packing Machine with 7 Feeders.
▶ The machine is designed for screw, plastic key, irregular shaped plastic parts and components, wet wipes etc.

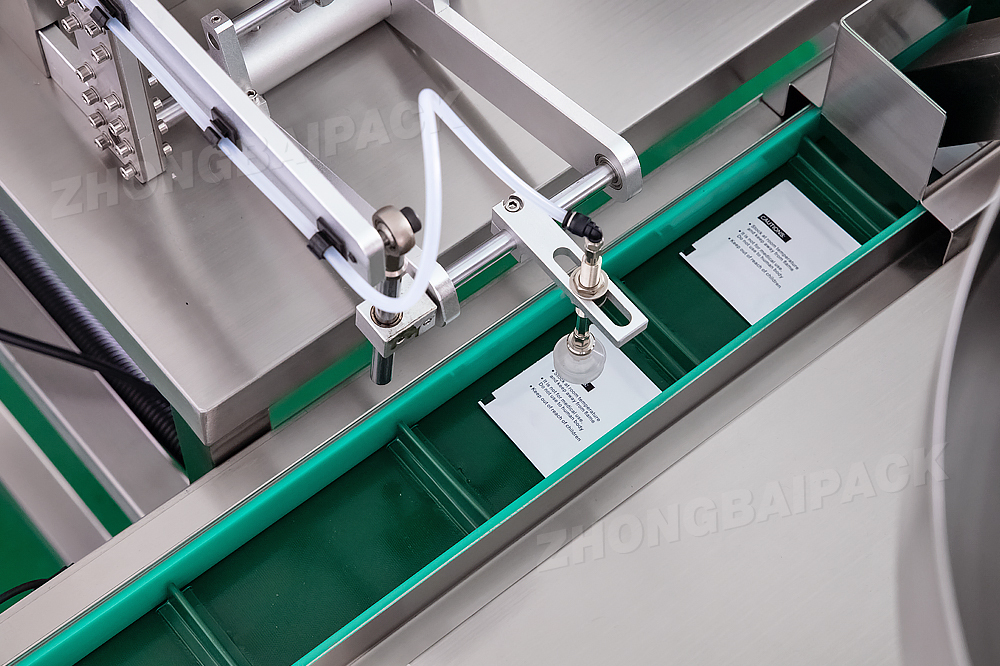

▶ A pick-and-place mechanism is used to feed a single wipe at a time from a bulk stack to the material collecting conveyor.
▶ The packing system uses PLC and HMI controls, allowing operators to select pre-set "recipes" on touch screen to switch between all related parameters for different kit parts, including feeder operation, count quantity, and packaging settings. ▶ The machine incorporates a pick-and-place wet wipe feeder. The control system synchronizes the feeder's movements with the packaging machine's cycle. A sensor continuously monitors the stack level, vacuum pressure, and the presence of wipes at key points to detect jams or misfeeds, ensuring smooth and reliable operation.
Features
● Automation:automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Precision Counting: advanced sensors and software algorithms ensure precise counting and reduce the risk of missing or extra components.
● Versatility: the machines can be adapted to package hardware and plastic components in various sizes and shapes. They come with adjustable settings for product count and bag length , allowing customization based on the specific packaging requirements.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Programmable Recipes: allows operators to set up different packaging configurations recipes that specify the quantities of each component in a kit.
● Flexible Configuration: modular design enables easy addition or removal of counting modules to accommodate changes in product offerings.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Construction: built with high-quality materials, our packaging machines are designed to withstand the rigorous demands of industrial environments. The robust construction ensures long-term durability and reliable performance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

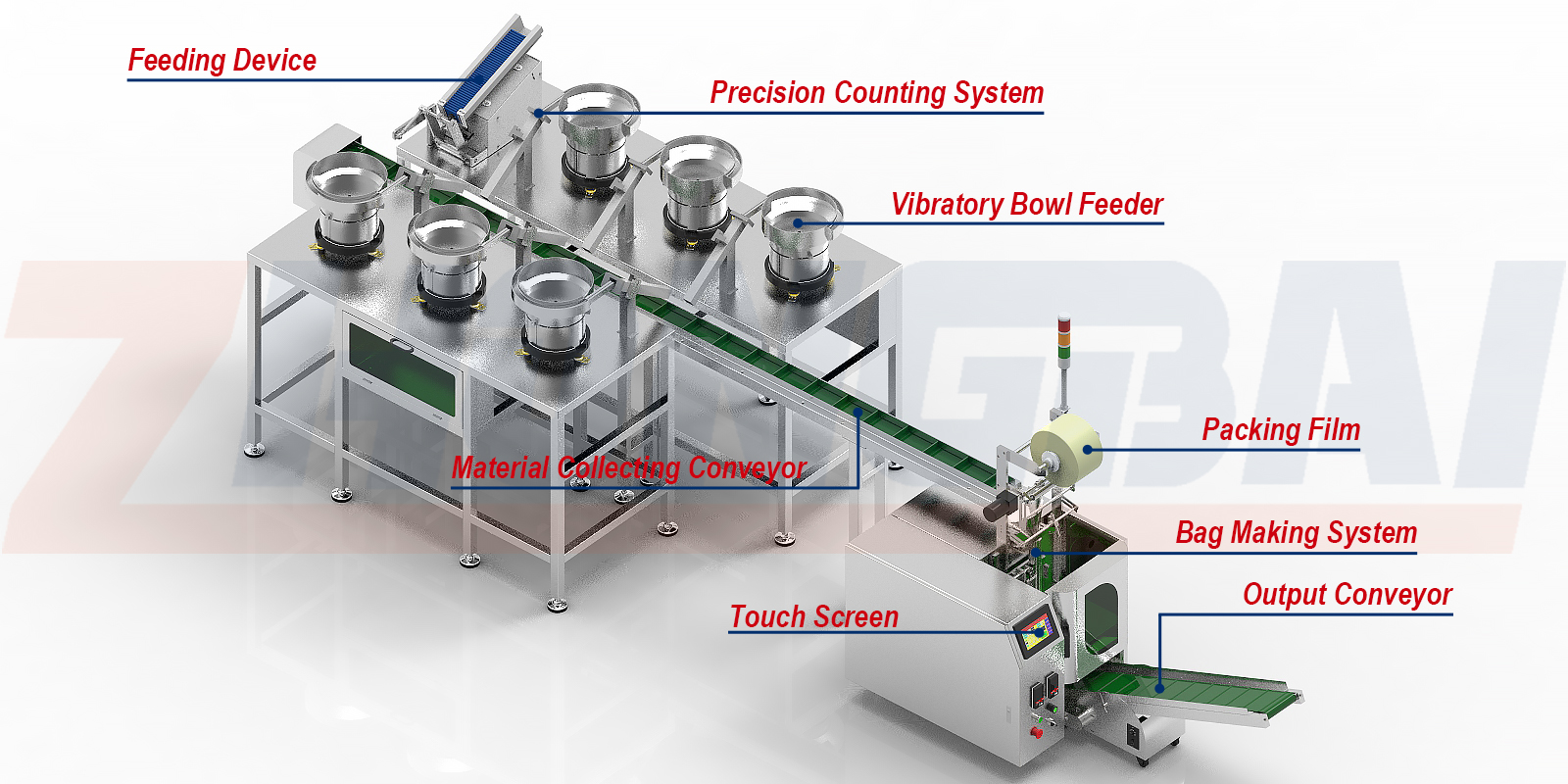

Main Structure:
Technical Specificatioin: Model: ZB-T60D6 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 3.7KW Voltage: 220V, 50/60HZ Machine dimension: (L)3800×(W)1600×(H)1900mm Packing material: Plastic film | Paper film | Premade pouch

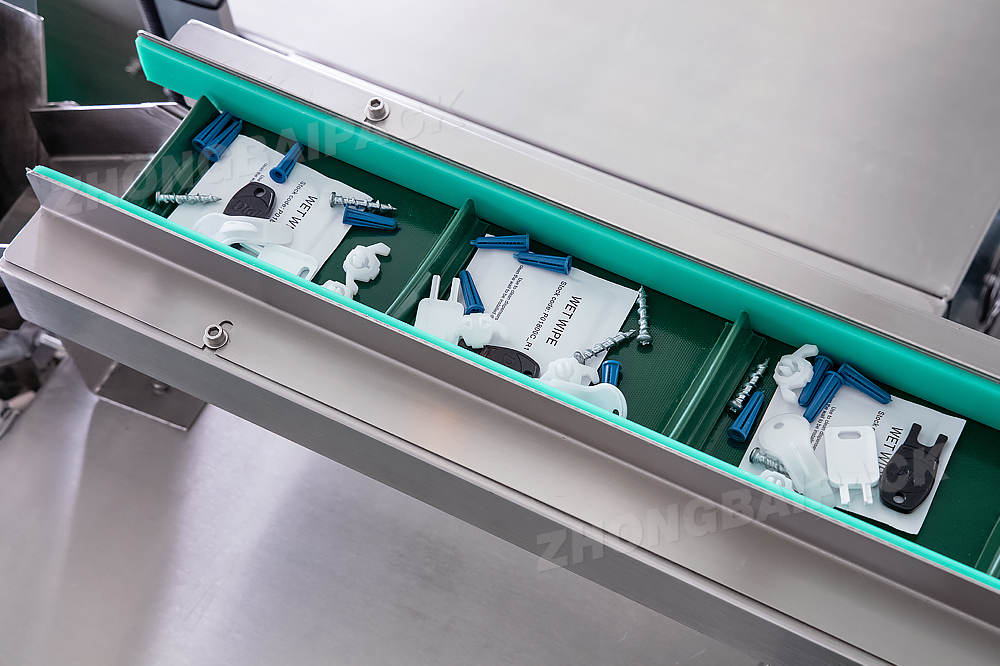

Packaging Samples:
Optioinal Devices:
FAQ
1. How does the machine ensure accurate counting for small and irregularly shaped plastic parts?

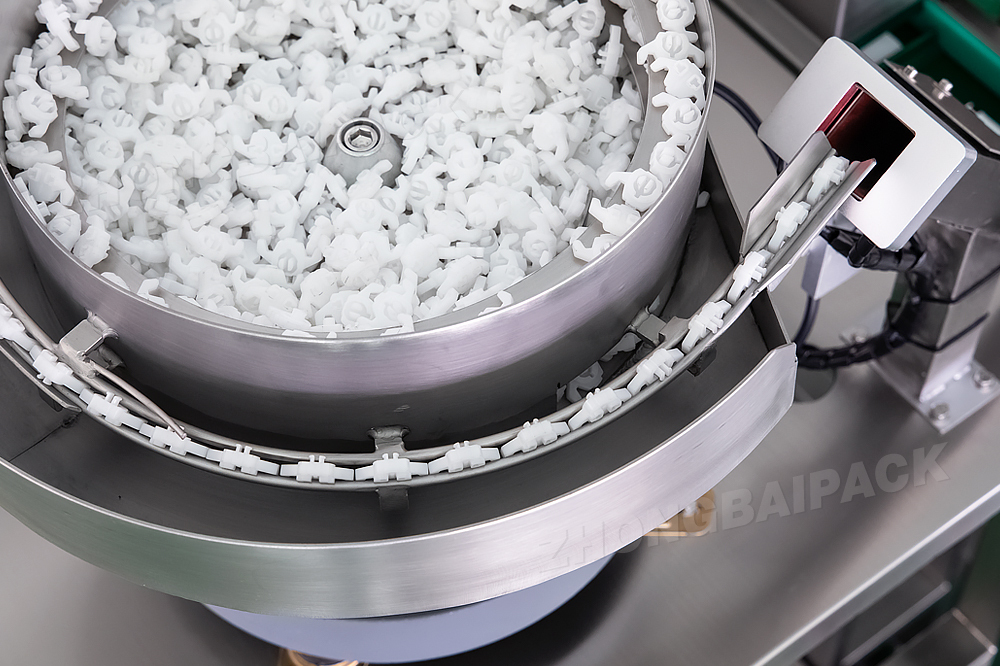

The machine utilizes high-precision optical counting systems, combined with custom-engineered vibratory bowl feeders. The bowl feeders are tailor-made according to your specific plastic part samples to ensure smooth orientation, alignment, and spacing, thereby eliminating counting errors and preventing double-dropping or missing parts.
2. Can I set the counting quantity independently for each bowl feeder?
Yes, absolutely. You can set the counting quantity independently for each bowl feeder on the touch screen.
3. Does the machine support automatic printing, labeling, or batch coding?
Yes, the system is highly customizable. It can be seamlessly integrated with thermal transfer printers or automatic label applicators to print production dates, barcodes, logos, and component counts directly onto the packaging film or apply pre-printed labels automatically.
