Highlights:

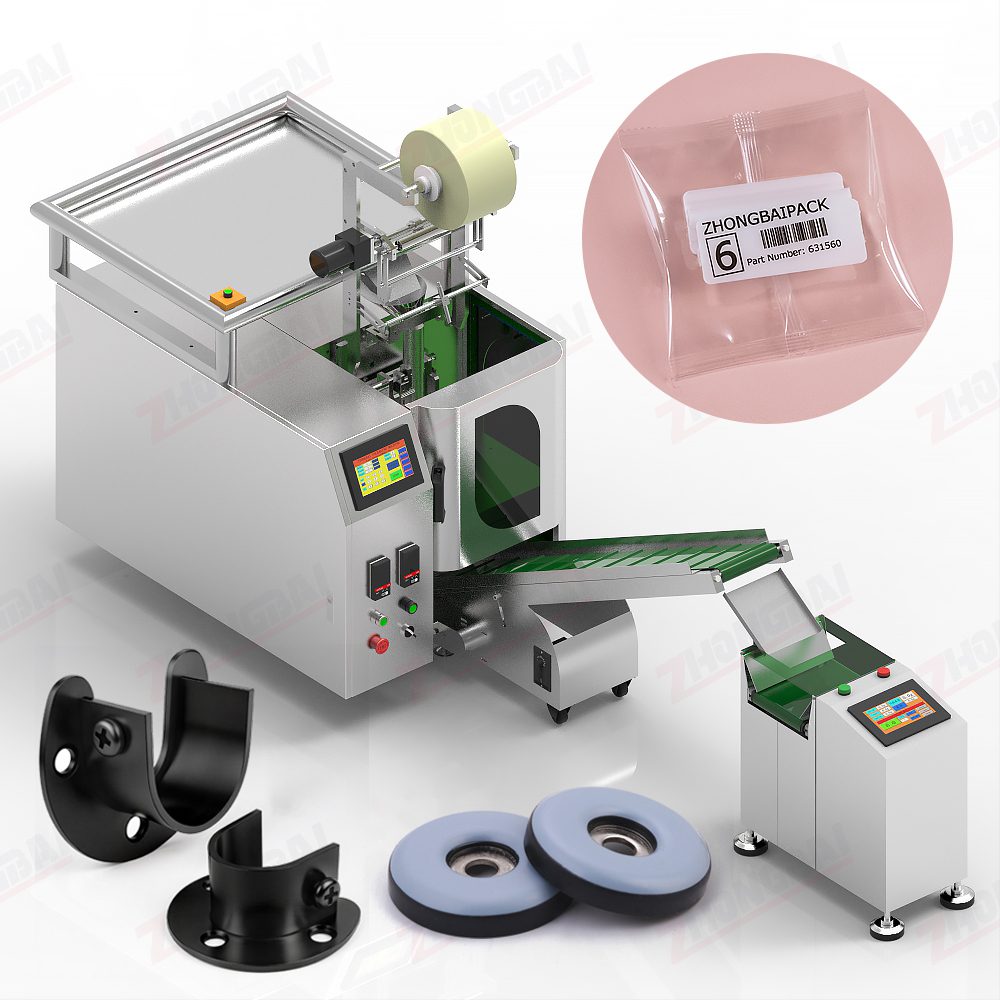

▶ This plastic industrial parts packing machine is a highly flexible solution designed for versatile, low-volume packaging operations.

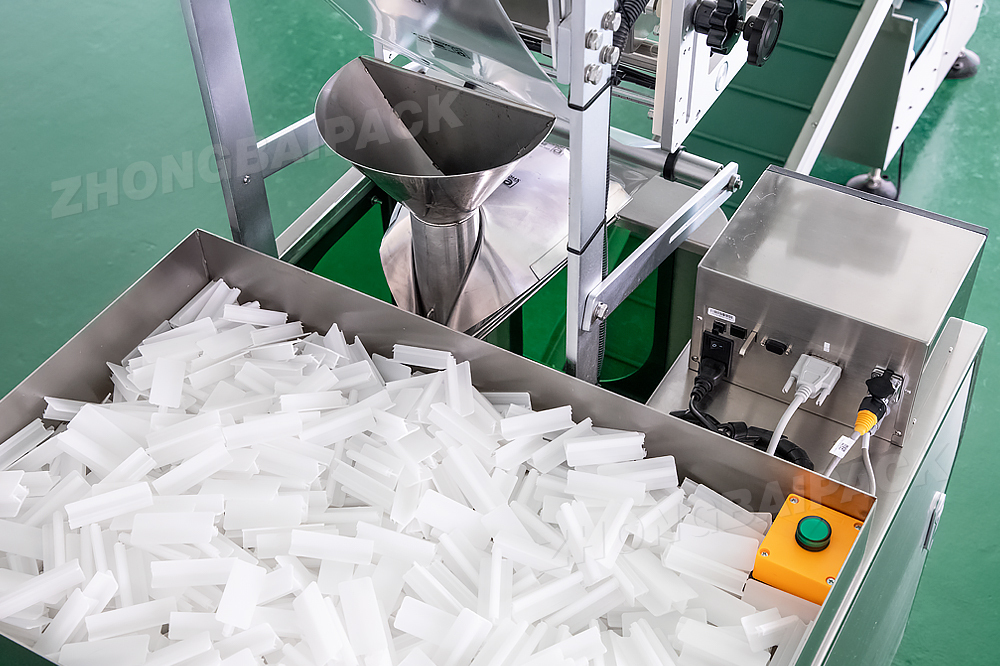

▶ The operator manually place products into the filling chute, making it ideal for handling irregularly shaped, or high-mix items that are not suitable for automated systems.
▶ A indicator tells the operator when to place the product and initiate the sealing cycle with the foot pedal.

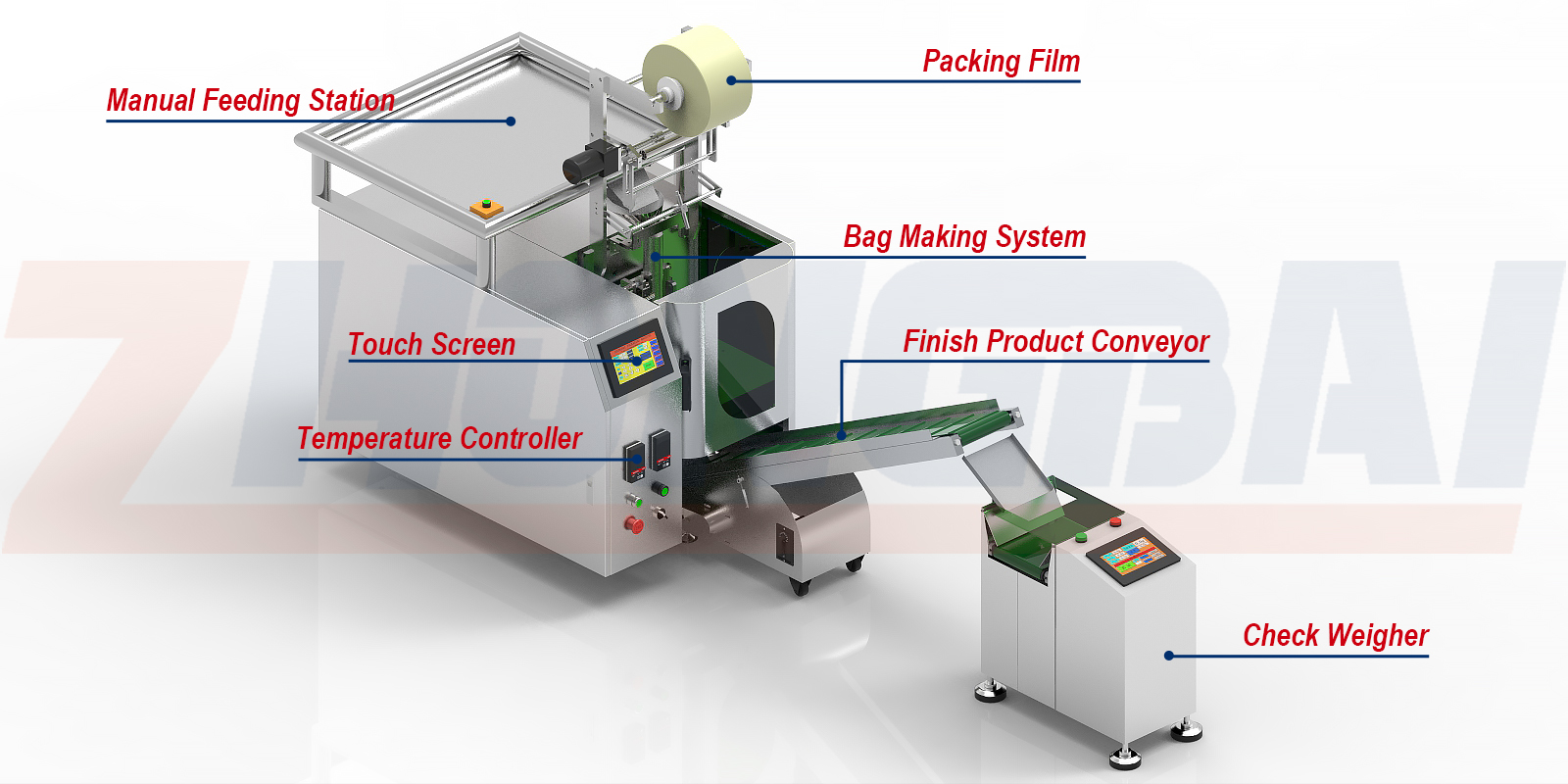

Main Structure:
Technical Specificatioin:
Model: ZB-M60
Capacity: 10-30bags/min
Bag width: max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 1.5KW
Voltage: 220V,50/60HZ
Machine Dimension: (L)1800×(W)900×(H)1500mm
Packing material: Plastic film | Paper film | Premade pouch

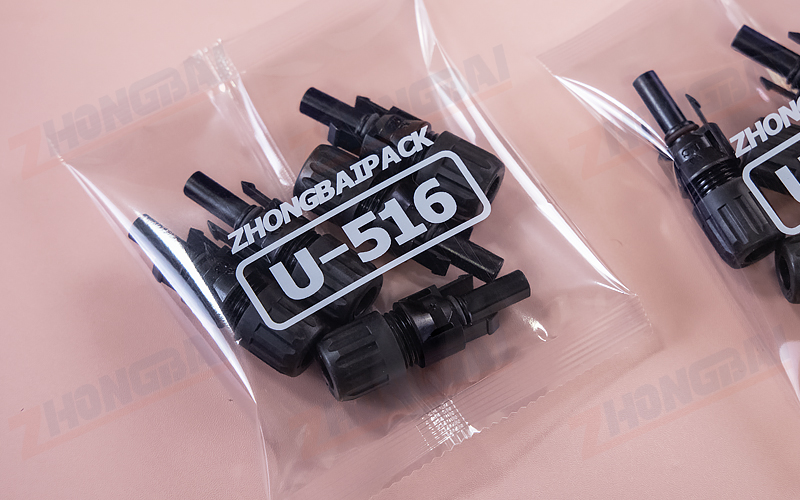

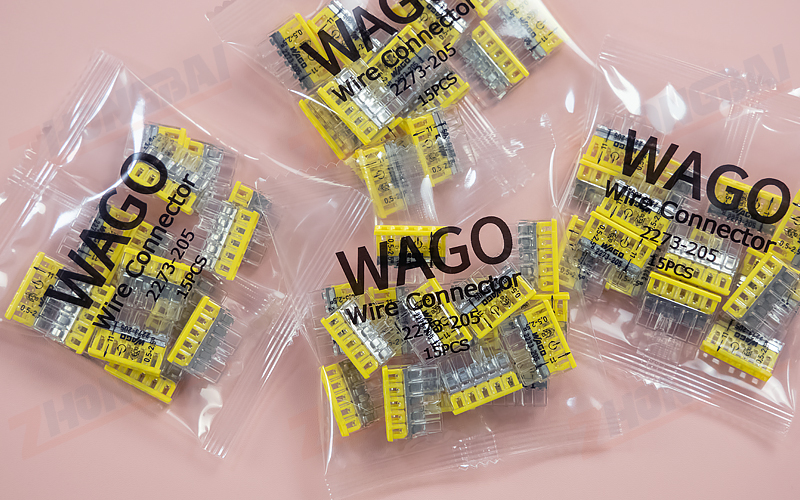

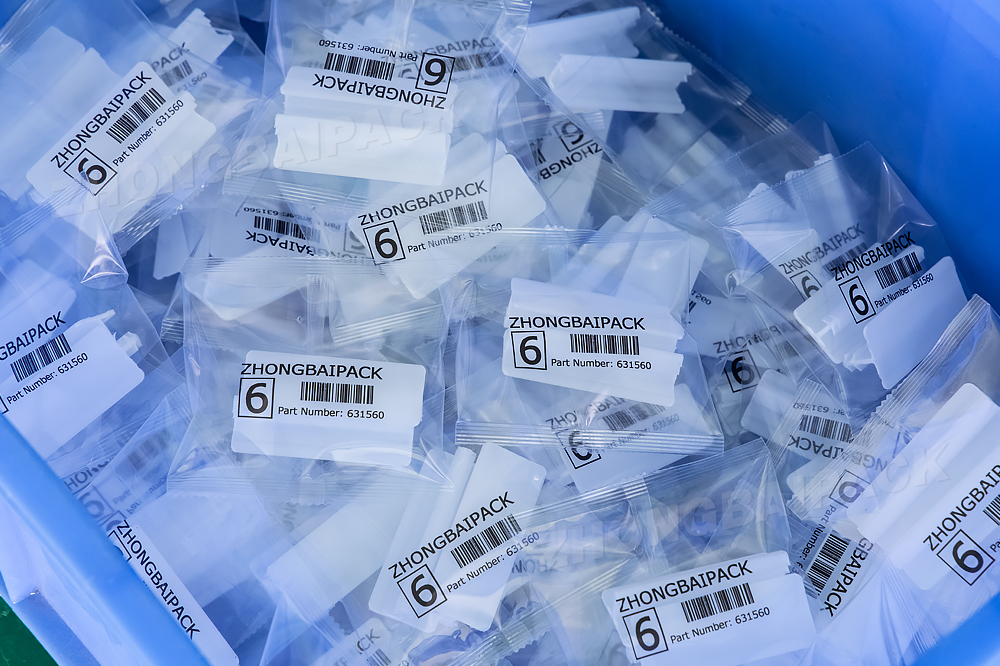

Packaging Samples:
Optioinal Devices:
The ZB-M60 features a manual feeding station combined with an auto bagging mechanism. Operators place different components into the filling chute and press the foot pedal; then, the bagging system seals the bag in a single operation, ensuring seamless dropping, sealing, and efficient bagging of various parts and components.
The ZB-M60 offers several unique benefits for versatile packaging:
Cost-Effective Solution: Features a significantly lower initial investment compared to fully automatic multi-head weighing systems.
High Flexibility: Perfect for low-to-medium volume operations and tasks that require frequent component changeovers.
Quick Changeover: Allows operators to switch between different products and bag formats rapidly with minimal adjustments.

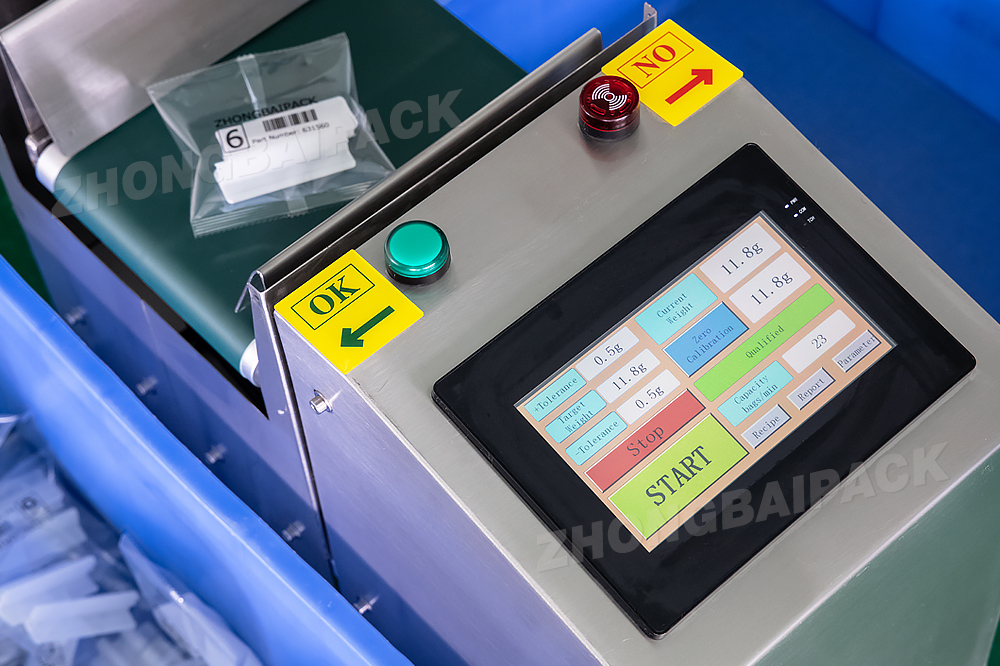

It automatically weighs each sealed bag in real time to ensure it meets the preset target weight and tolerance limits, so that it can detect missing or extra pieces by comparing the total bag weight against the expected total weight for the correct count.
