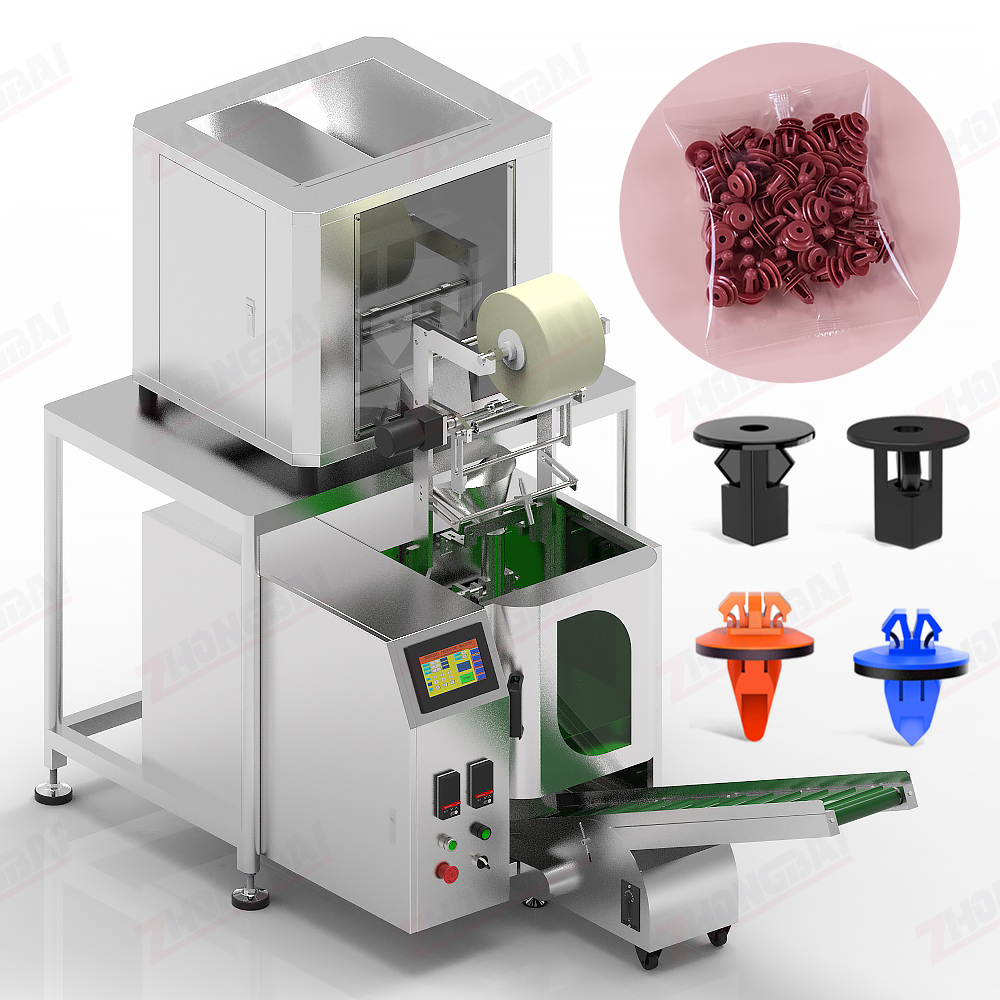

Highlights:
▶ This plastic fastener weighing packing machine can accommodate components up to 40mm in length. (Up to 60mm is available, depending on its configuration).

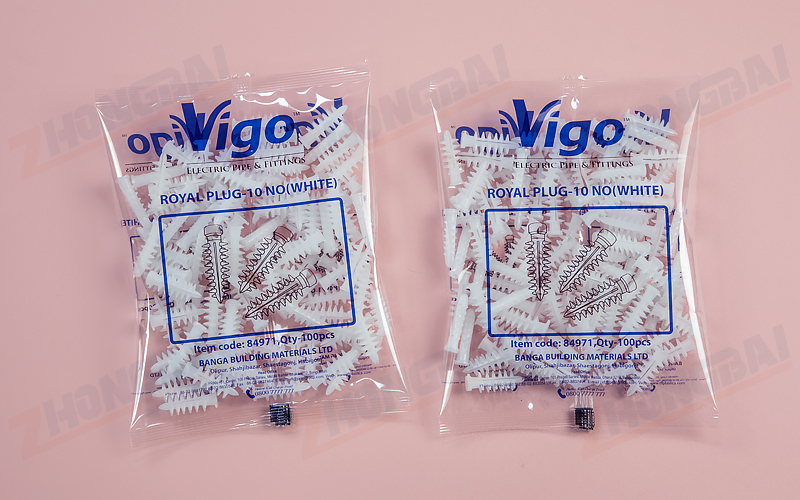

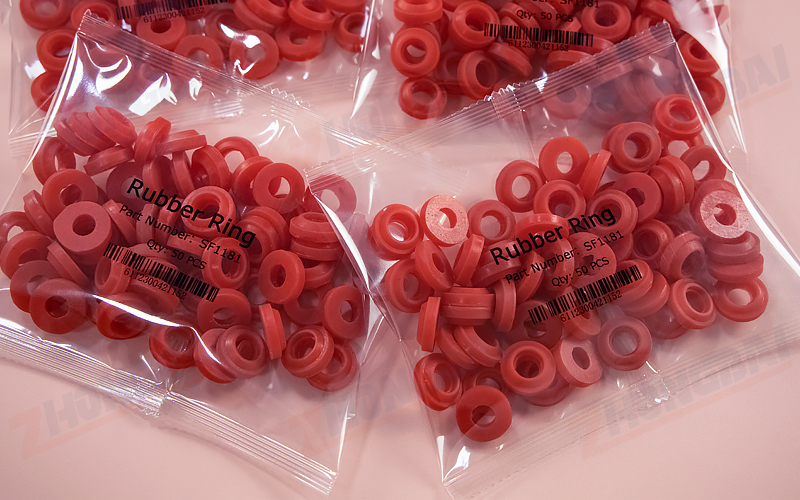

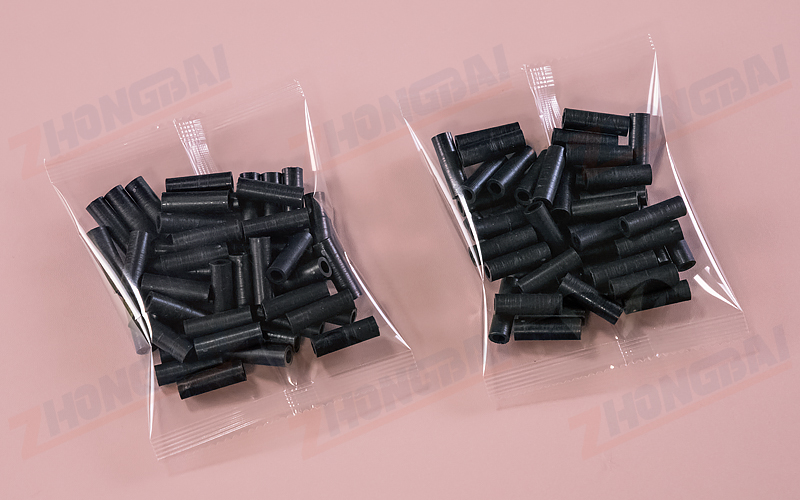

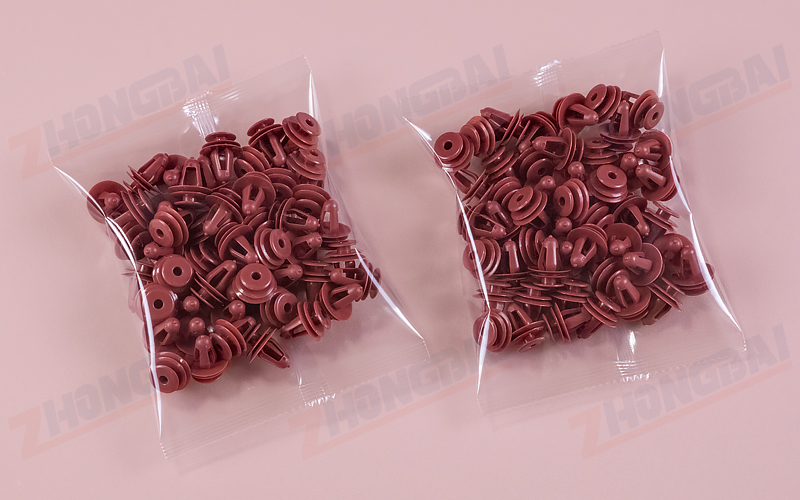

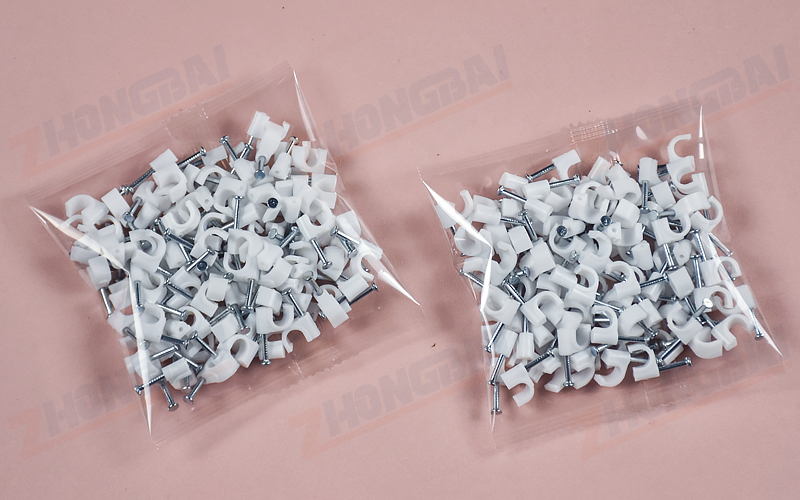

▶ Suitable for packaging of plastic rivets, plastic anchors, wall plugs, plastic clips, push pins or other components.
▶ The machine allows for easy adjustment of the weight per package and the total number of packages in an order, providing flexibility for your specific packaging requirements.

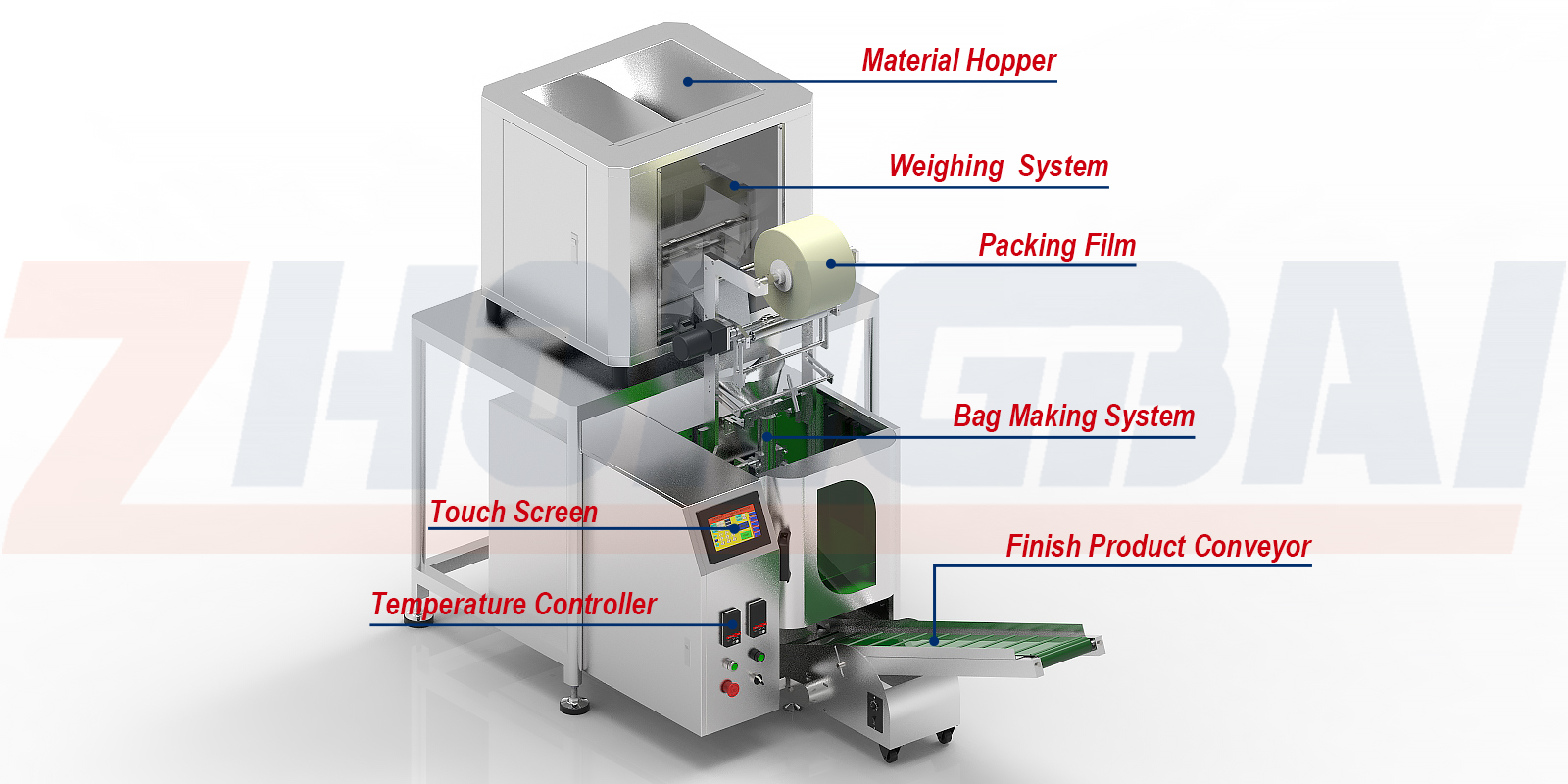

Main Structure:
Technical Specificatioin:
Model: ZB-W60Q2
Capacity: 3-20bags/min
Weighing range: 2-100g/50-500g/customize
Bag width: max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 1.8KW
Voltage: 220V, 50/60HZ
Machine Dimension: (L)1900×(W)1050×(H)1500mm
Packing material: Plastic film | Paper film | Premade pouch
Optioinal Devices:
The ZB-W60Q2 Weighing Packing Machine is a versatile system designed for a wide range of small plastic fasteners and components. It can effortlessly handle loose, non-sticky, and non-overlapping items such as plastic rivets, plastic anchors, wall plugs, plastic clips, push pins and other custom molded plastic components. It can accommodate components up to 40mm in length (with options up to 60mm available based on configuration).
The machine incorporates high-precision electronic scales, the feeding features two-stage control with fast and slow speeds: fast feeding ensures efficiency, while slow feeding guarantees accuracy, and the combination of the two stage speed achieves high-precision dosing.
Yes, the machine can be integrated with the labelling device to apply a label on the bags automatically. It can also be integrated with an intelligent printer to print product information directly on the bags.
