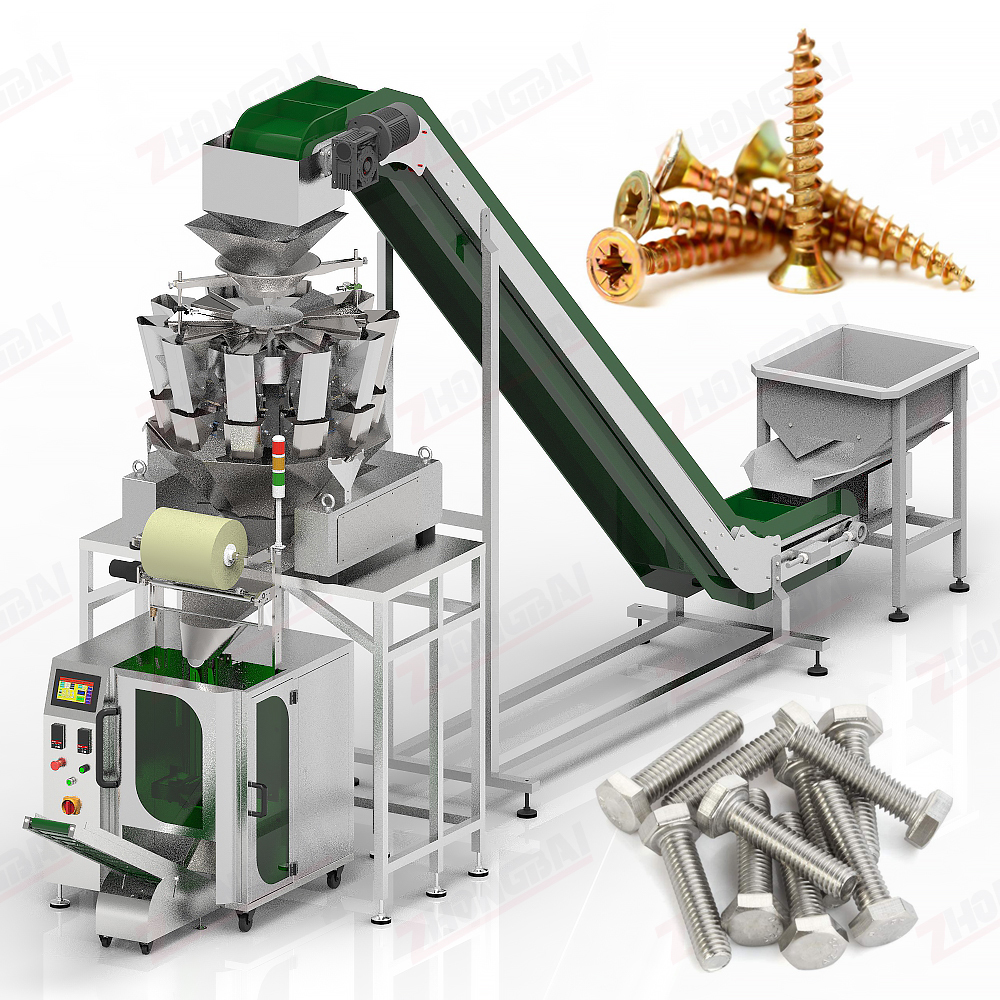

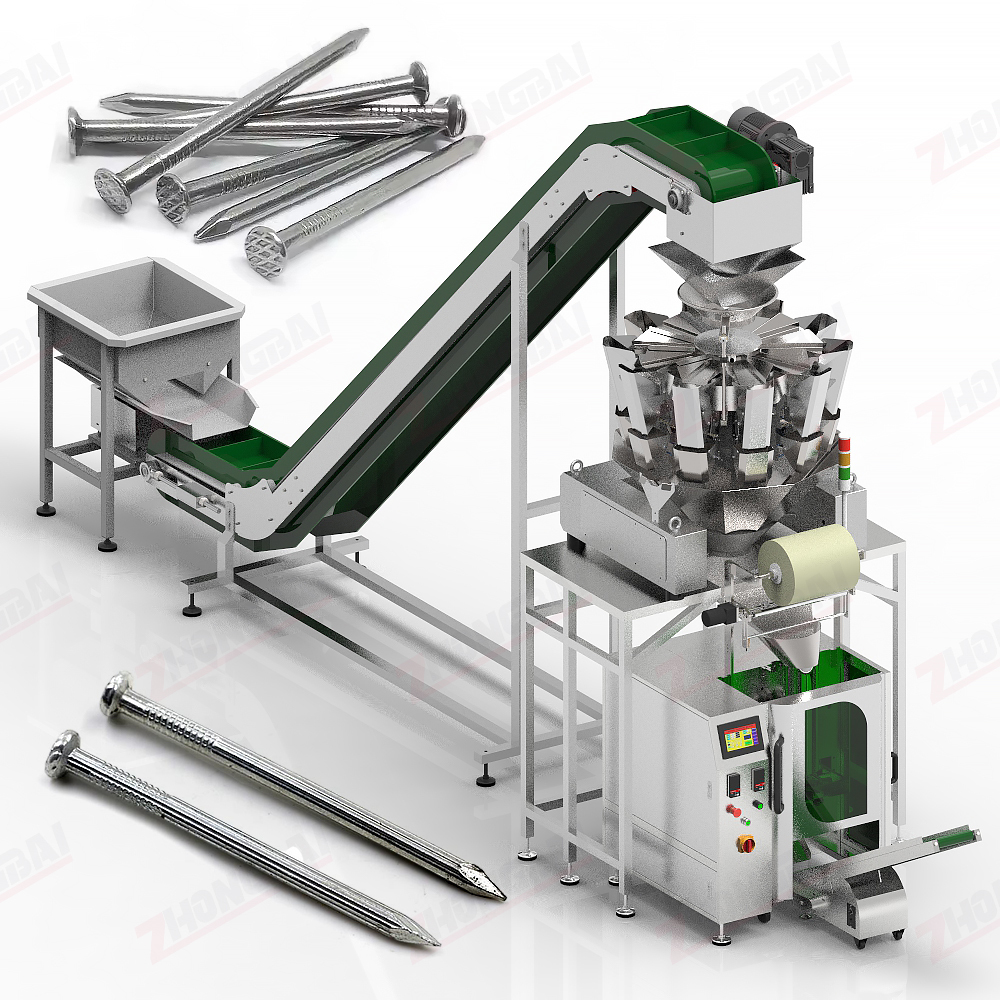

Hardware Nails Weighing Packing Machine with Multi-head Weigher
No.ZB-F274
▶ ZB-W60H10 Automatic Nails Weighing Packing Machine.

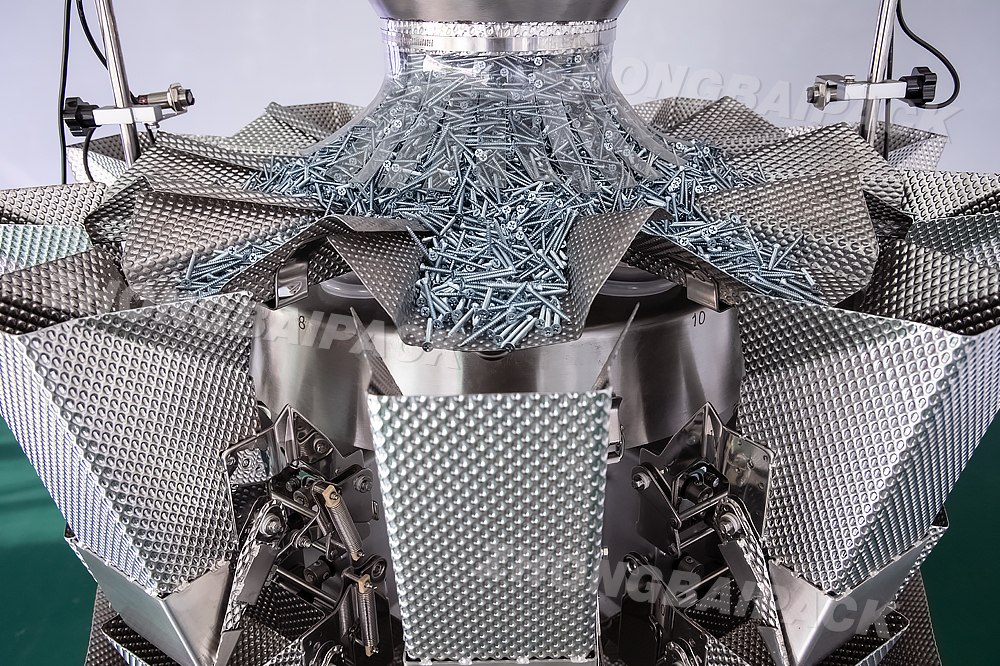

▶ The machine is equipped with a 10-head combination weigher for reliable, high-performance portioning.
Highlights: ▶ This nails weighing and packing machine integrates automatic feeding, weighing, bag-making, filling, and sealing into a seamless workflow. Equipped with an intuitive PLC touch-screen interface and intelligent self-diagnostic capabilities, the system significantly reduces labor costs while enhancing packaging efficiency and production line stability. ▶ The machine is suitable for weighing and packing various fasteners, including screws, nuts, bolts, and nails or other components.
Application: ● Fasteners: screw, bolt, nut, washer, rivets, nails etc. ● Plastic/Rubber Parts: wall anchor, rubber o-rings, toys, lego building bricks, small plastic parts. ● Hardware Parts: hardware components, hardware connectors, metal parts etc. ● Furniture Accessories: furniture connectors, furniture fasteners, furniture fittings, furniture accessories, door handle, hinge etc. ● Others: small hardware or plastic parts, regular shape or irregular shape of parts.
Features:
● Automation: automatically perform tasks such as feeding, weighing, filling, bagging, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Weighing: advanced weighing solution incorporates a 10-head combination weigher that utilizes ten independent weighing hoppers to calculate the optimal combination of product. This intelligent system ensures your target weight is achieved with exceptional speed and accuracy. ● Flexibility: excellently handles a wide variety of fasteners and components, such as screws, bolts, nails, washers and other hardware or plastic parts.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

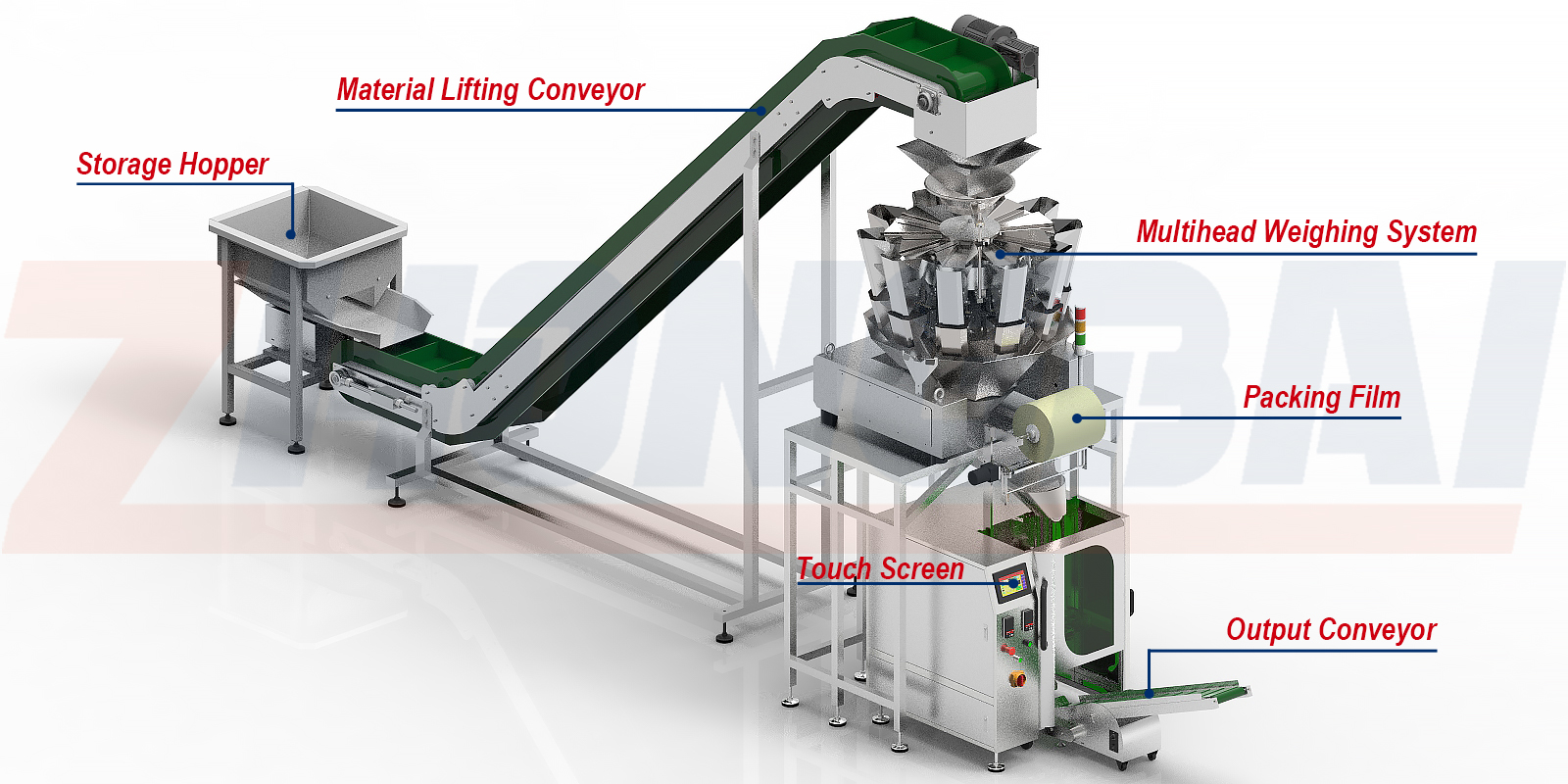

Main Structure:
Technical Specificatioin: Model: ZB-W60H10 Capacity: 10-40bags/min Weighing range: 50g-10KG Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 4KW Voltage: 220V, 50/60HZ Machine Dimension: (L)4050×(W)1050×(H)3000mm Packing material: Plastic film | Paper film | Premade pouch
Packaging Samples:
Optioinal Devices:
FAQ
1.How does the machine ensure high weighing accuracy？
The multihead combination weigher simultaneously weighs products across multiple independent hoppers. The computer instantly calculates all possible combinations to find the one that matches or is closest to the target weight, significantly reducing the error compared to single-scale weighing.
2. Can the machine apply the label onto the bags?
Yes, the machine can be integrated with the labelling device to apply a label onto the bags automatically. It can also be integrated with an intelligent printer to print product information directly on the bags.
3. What kind of after-sales support and warranty do you provide?
We provide one year warranty, lifetime technical support, detailed English operation manuals, and video installation guides. Overseas on-site installation and engineer training services are also available upon request.
