Highlights:

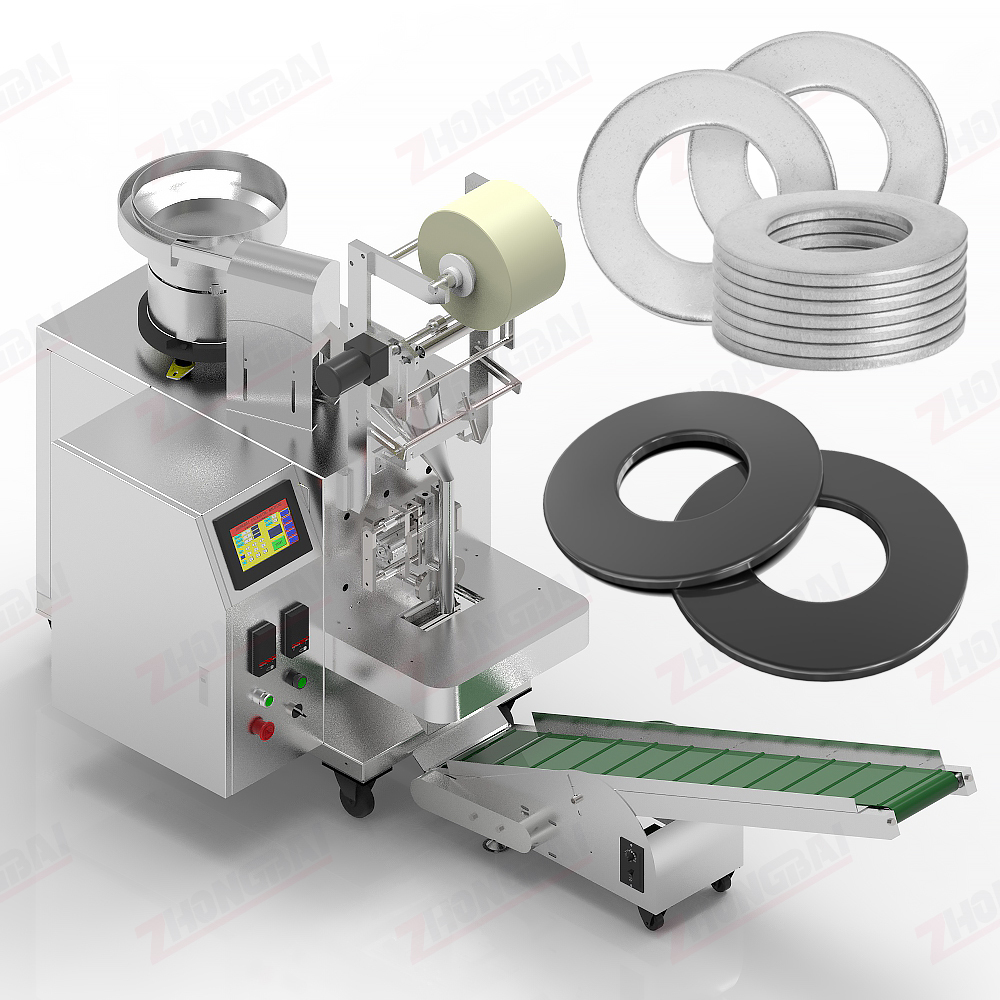

▶ This hardware gasket counting packing machine can accommodate gaskets up to 50mm in diameter, depending on its configuration.
▶ The machine allows for easy adjustment of the quantity of items per package and the total number of packages in an order, providing flexibility for your specific packaging requirements.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:
Technical Specificatioin:
Model: ZB-60D1
Capacity: 10-50bags/min
Counting quantity: set on touch screen
Bag width: max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 1.8KW
Voltage: 220V, 50/60HZ
Machine Dimension: (L)2100×(W)750×(H)1500mm
Packing material: Plastic film | Paper film | Premade pouch

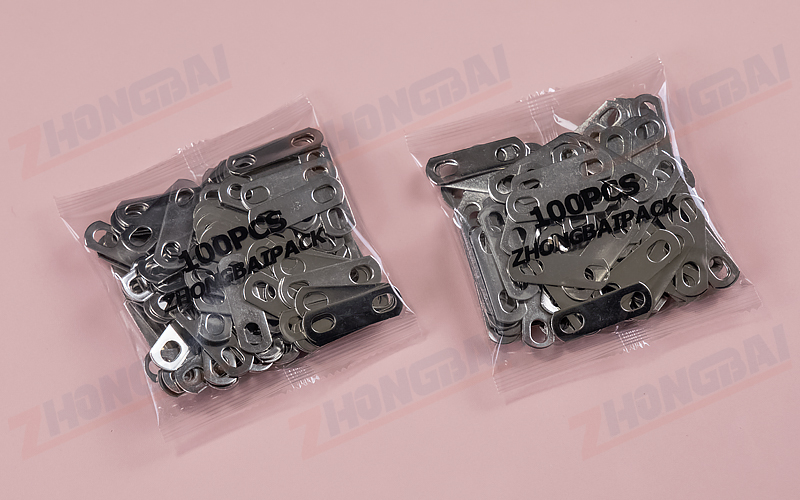

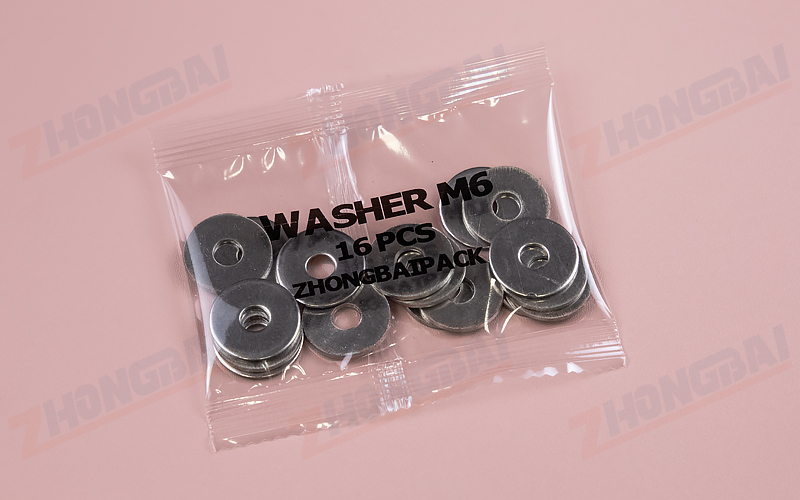

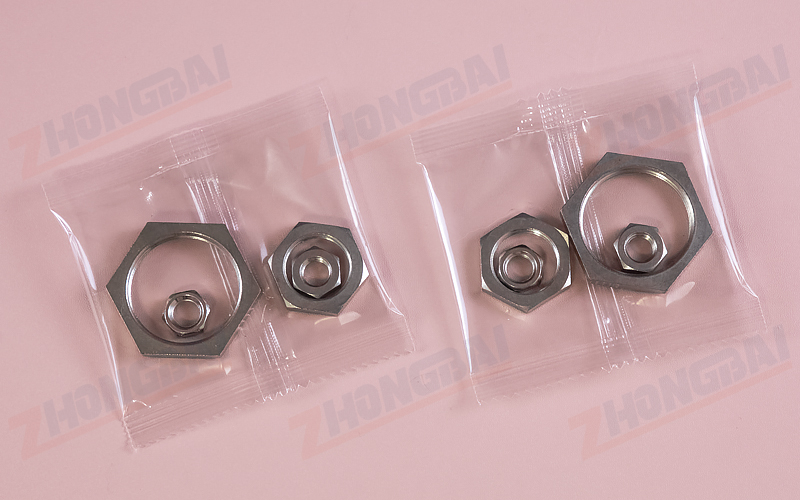

Packaging Samples:
Optioinal Devices:
This gasket packing machine utilizes advanced high-precision sensors and intelligent software algorithms. This combination accurately detects and counts each individual gasket as it passes through the feeding system, minimizing counting errors, preventing shortages, and eliminating material waste compared to manual packaging.
Yes. It features a touchscreen human-machine interface. Operators can easily set the desired count per bag and the total number of bags for an order directly on the screen, with real-time monitoring of the packaging process.
The machine supports a wide range of heat-sealable laminated films, such as OPP/PE, PET/PE, and PET/AL/PE. The high-precision PID temperature control system ensures stable and secure sealing for various film types.
