Furniture Fittings Sorting Packing Machine is an automated system designed to count, sort, and package various loose furniture hardware (such as screws, nuts, washers, wooden dowels, and cam locks) into bags. It typically utilizes vibratory bowl feeders to align the irregular fittings, a high-precision PLC counter/sensor system to count exact quantities per bag, and an integrated form-fill-seal mechanism to automatically form, fill, and seal the plastic bags.
Highlights:

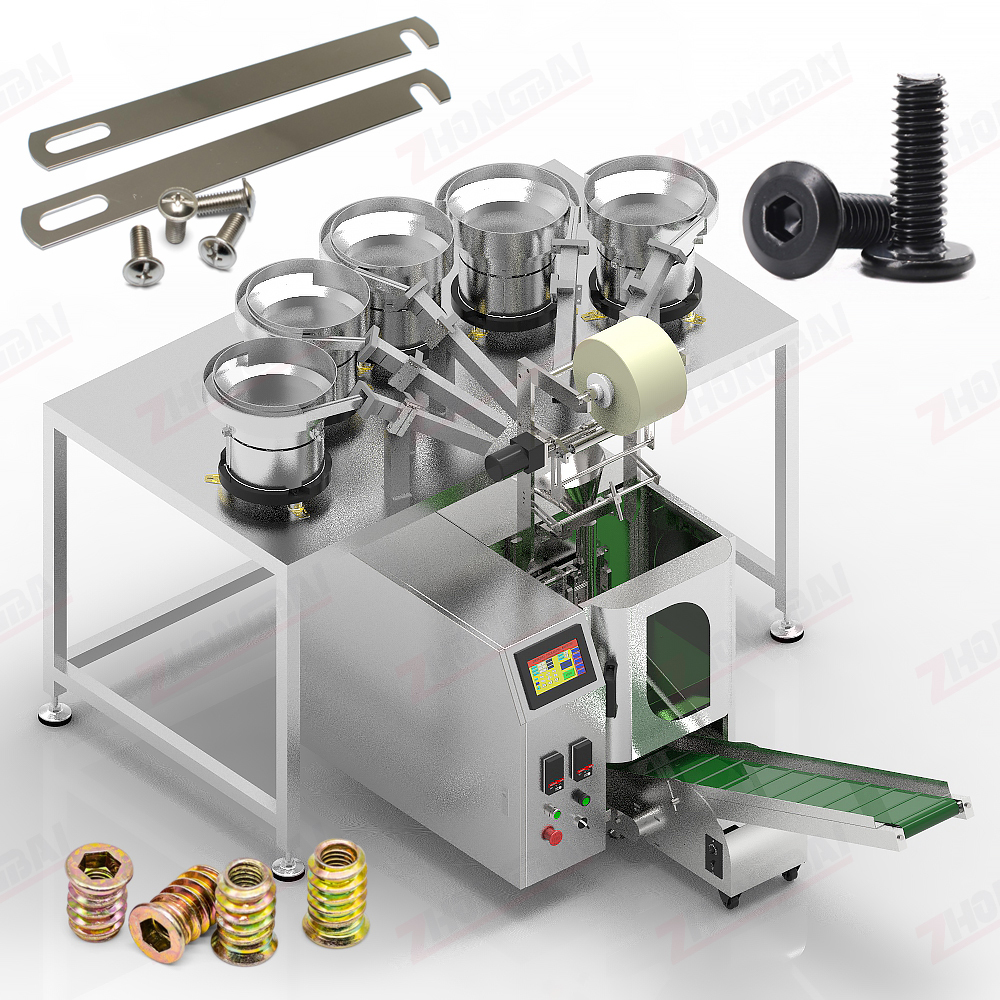

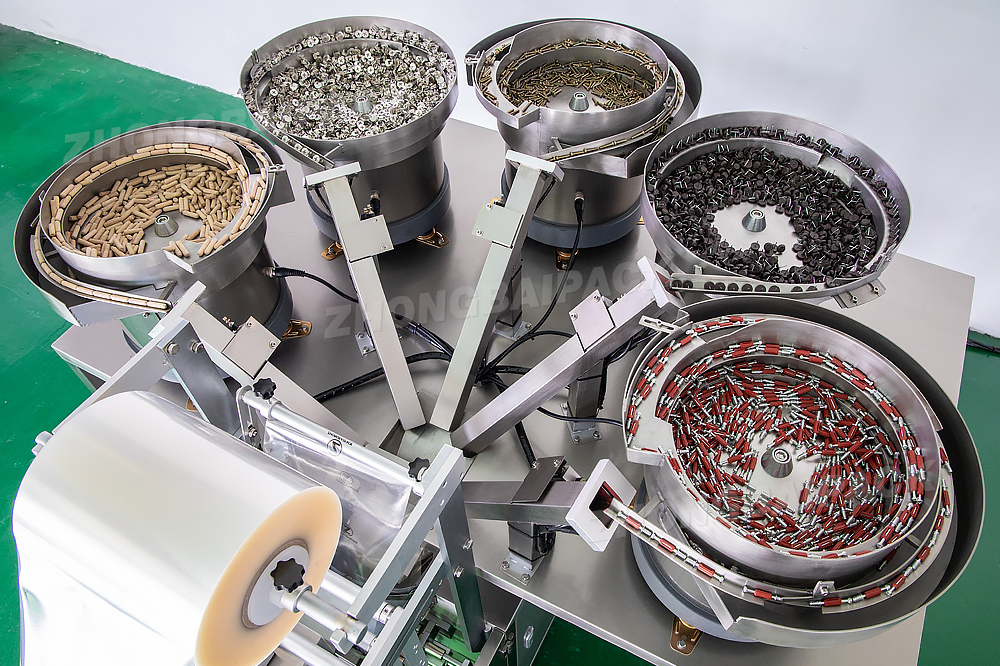

▶ This furniture fittings sorting and packing machine is equipped with 5 bowl feeders. It features a compact structure and is easy to operate.

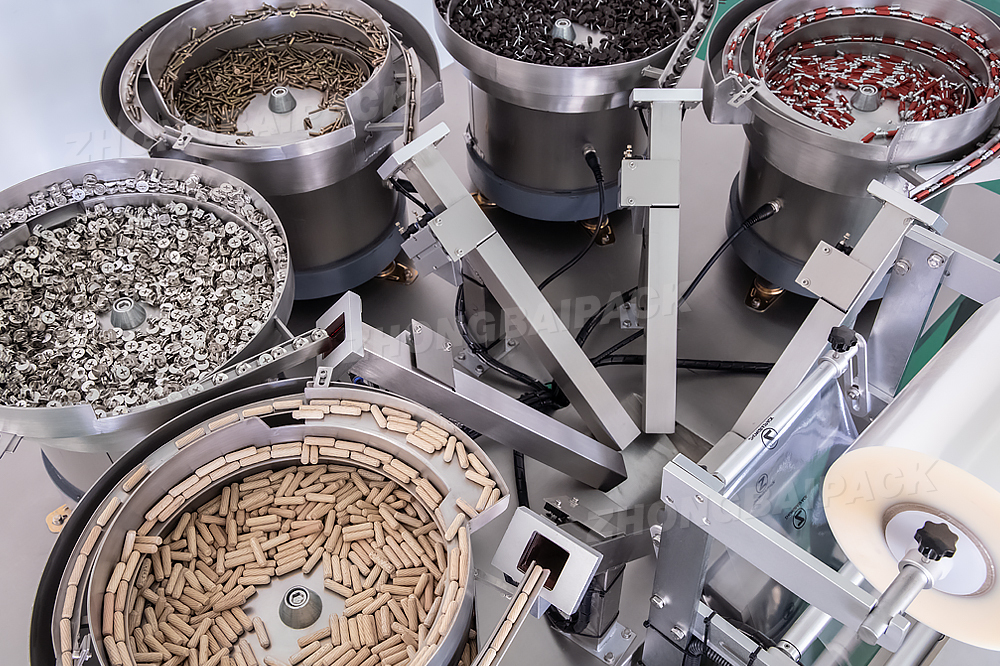

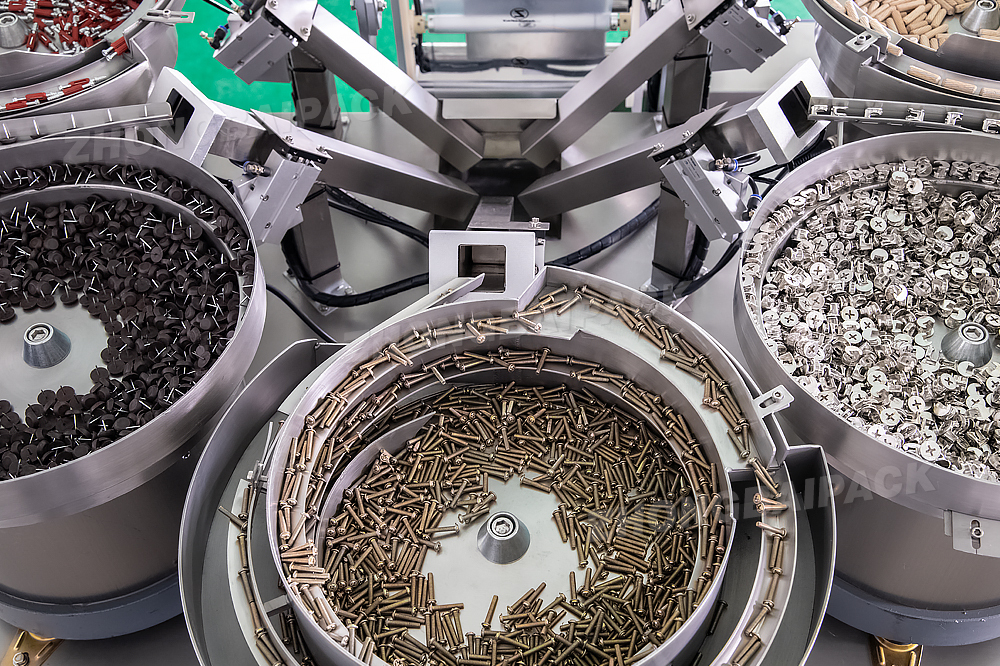

▶ Flexible design for vibratory bowl feeders enables quick changeover between different parts, allowing it to accommodate a family of furniture fittings in a range of dimensions.
Main Structure:
Technical Specificatioin:
Model: ZB-60D5
Capacity: 10-50bags/min
Counting quantity: set on touch screen
Bag width: max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 3KW
Voltage: 220V, 50/60HZ
Machine dimension: (L)2350×(W)1800×(H)1500mm

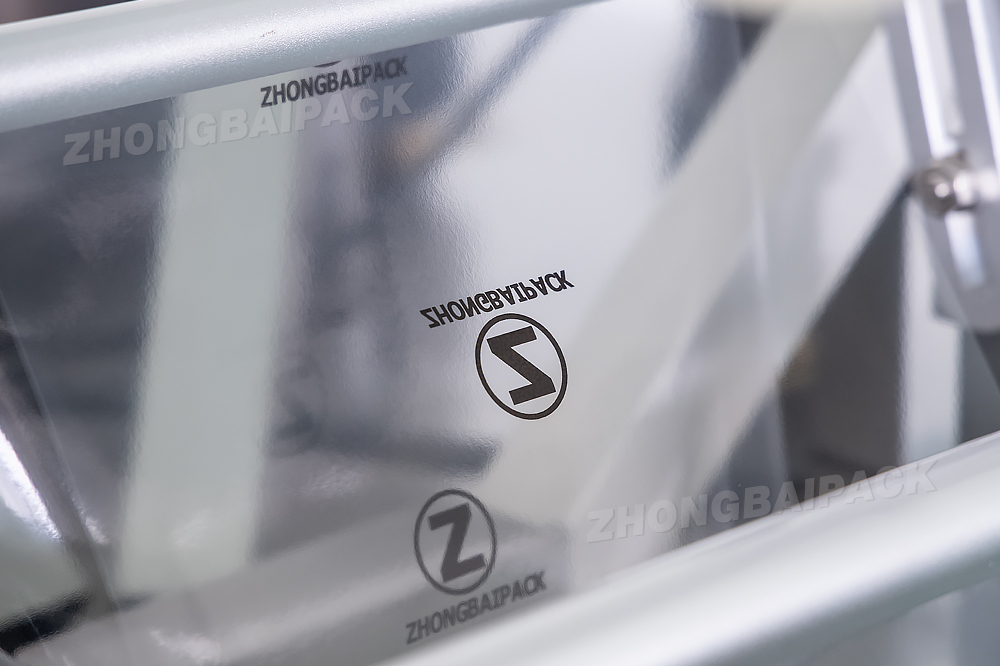

Packing material: Plastic film | Paper film | Premade pouch

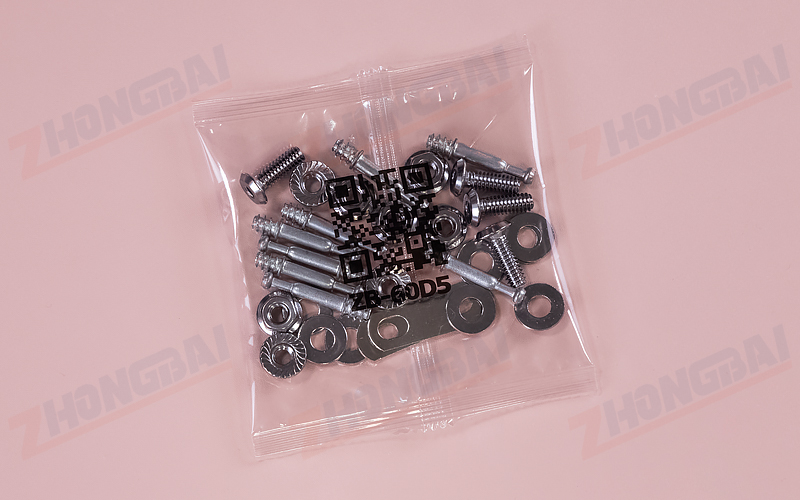

Packaging Samples:
Optioinal Devices:
Yes, you can run different furniture fittings with the same bowl feeder, if they are similar in shape.
For example, a bowl feeder set up for an M6×40mm bolt can also handle an M8×60mm bolt.
ZHONGBAI ZB-60D series use advanced optical sensors and specialized software algorithms. The system operates at high speed for rapid counting, then transitions to a low speed in the final stage to guarantee accuracy. This dual-speed approach enables high-speed counting while ensuring counting accuracy.
We provide one year warranty, lifetime technical support, detailed English operation manuals, and video installation guides. Overseas on-site installation and engineer training services are also available upon request.
