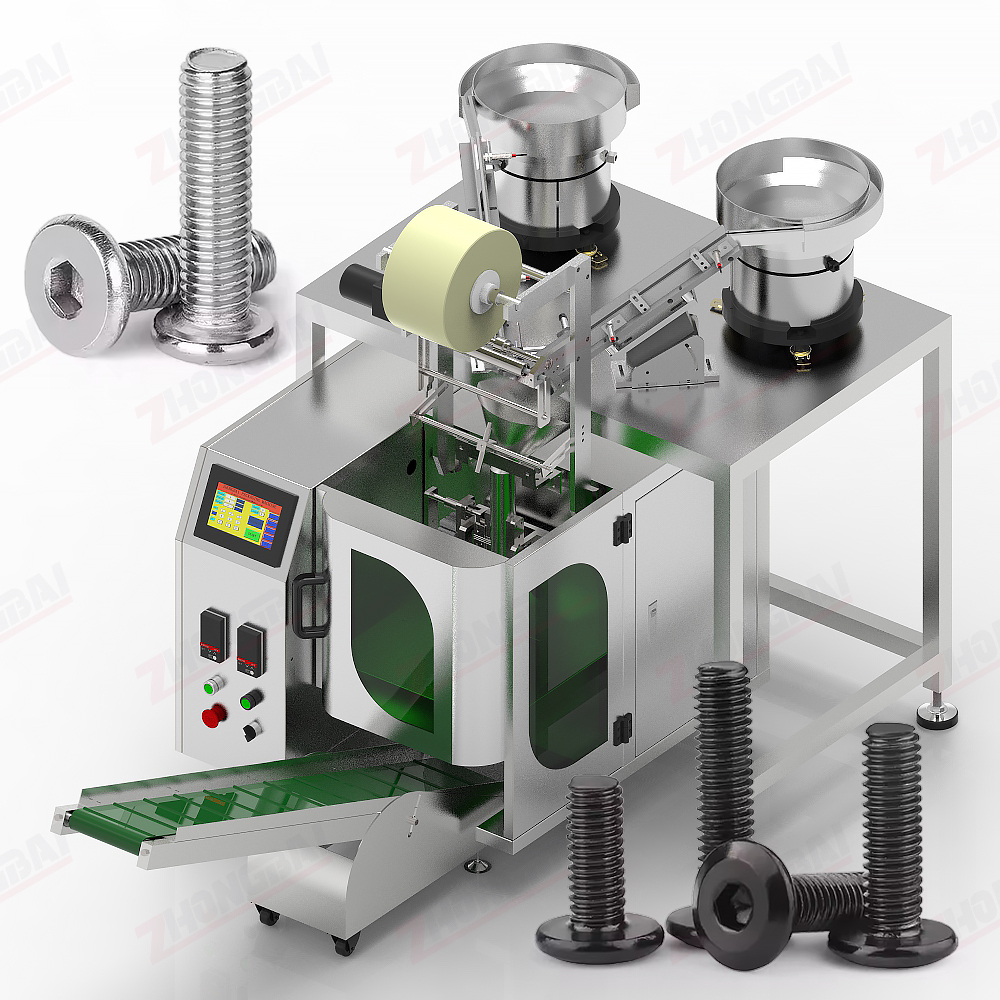

Bolt Counting Packing Machine With Labelling System
No.ZB-F244
▶ ZB-602 Bolt Counting Packing Machine With Labelling System.
▶ The machine features vibration bowl feeding combined with linear track counting mechanisms, where bolts are aligned and conveyed in-line past a high-precision sensor for accurate piece counting.
▶ The machine is equipped with a labelling device to automatically apply printed labels on bags.
Highlights: ▶ This bolt counting packing machine features vibration bowl feeding combined with linear track counting mechanisms, where bolts are aligned and conveyed in-line past a high-precision sensor for accurate piece counting. ▶ The machine is equipped with a labelling device to automatically apply printed labels on bags.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure:constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

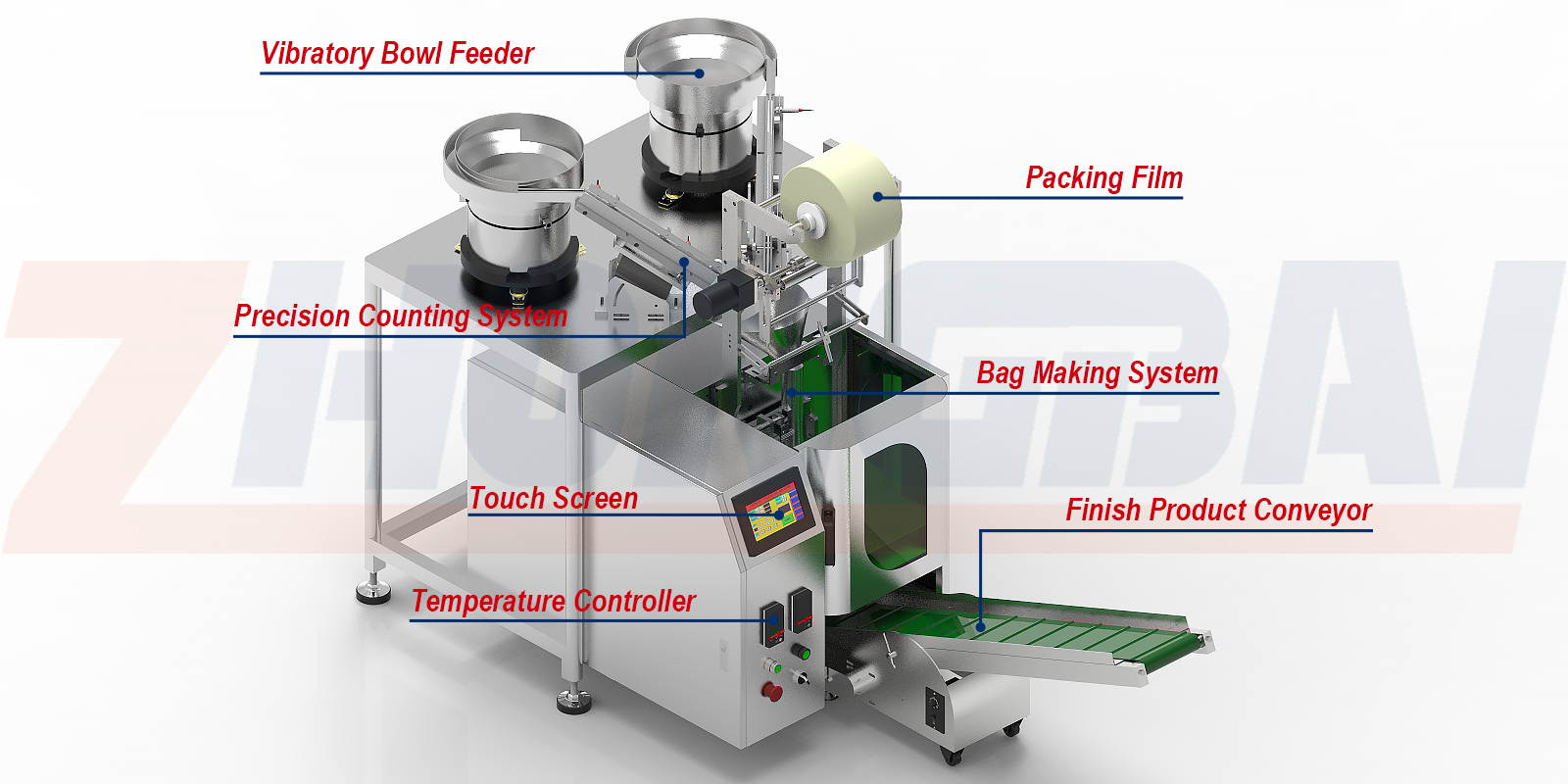

Main Structure:
Technical Specificatioin: Model: ZB-60D2 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 2.1KW Voltage: 220V, 50/60HZ Machine Dimension: (L)2150×(W)1050×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch
Packaging Samples:
Optioinal Devices:
FAQ
1. What is the advantage for linear track counting compare to optical sensor counting?
The linear track counting system is specifically engineered for long-shaped, headed materials such as screws and bolts, when handling long-shaped items, this system provides significantly higher counting speeds compared to optical sensor counting methods.
2. What is the procedure for changing the counting quantity when the machine uses a linear track counting system?
Method A: Adjust the cylinder position according to the screw arrangement length to change the single-count quantity. Method B: Set the number of dispensing cycles via the touchscreen to determine the final package count.
3. What kind of packaging film materials can be used?
The machine supports a wide range of heat-sealable laminated films, such as OPP/PE, PET/PE, and PET/AL/PE. The high-precision PID temperature control system ensures stable and secure sealing for various film types.
